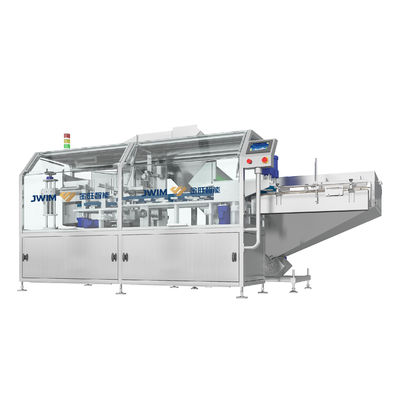

1000ml Round Plastic Pet Bottle Unscrambler Machine

Product Details:
Place of Origin: CHINA
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: LP-200E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set
Specifications Product Description Request A Quote
Specifications
Specifications
Name: Automatic Bottle Unscrambler Machine
Power: 2.5KW
Automatic Grade: Automatic
Voltage: 220V
Capacity: 1000ml-110 Bottles/min
Function: Unscramble Bottle
High Light:

1000ml pet bottle unscrambler

,

Round pet bottle unscrambler

,

1000ml plastic bottle unscrambler

Product Description

Introduction

LP-200E Automatic Bottle Unscrambler is making up of the bottle bucket, unscrambling plate , bottle reject opponent, bottle-stand-up hook, air rejection device, and detection device as well as the electric cabinet.



It is applied to the bottle unscrambling of plastic round and flat bottle. When putting the disordered bottle into the bottle holder, through the unscrambling plate, then the bottles will stand in the filling line in order. The machine has the features of simple structure, easy operation and good stability. It can reduce the labor force. For now it has been widely used in agro chemical industry.



Technical Parameters

1 Unscrambling Speed

50ml:200bottles per minute;250ml:150bottles per minute;

1000ml:110bottles per minute

*speed will be affected by the bottle size, bottle material

2 Bottle Diameter Round Bottle:Φ40-95mm Bottle Height 80-240mm
3 Air Source 0.6-0.8MPa
4 Power Source ~220V 50Hz/2.5KW
5 External Dimension(Bottle Unscrambler) 3540×1800×1800mm(L×W×H)
6 External Dimension(without bottle Elevator) 2730×1450×1500mm(L×W×H)
7 Weight ~ 900Kg





Bottle Applications

Widely used in pesticides, veterinary drugs, fine chemicals, daily chemicals, fertilizers, oils and other industries



Process Flow



1. Bottle loading (bottle enters the bottle unscrambler turntable through the bottle loading machine)

2. Bottle delivery (the round turntable sends the bottles to the unscramble station, and the belt in the turntable can be used for different bottle diameters by increasing or decreasing the belt in the turntable)

3. Kick the bottle (reject the overlapping bottles to facilitate bottle sorting)

4. Hook bottle (use the bottle hook device to stand the bottle hook upright with the bottle mouth facing forward)

5. Stand up the bottle (use the bottle stand up mechanism to erect the bottle with the bottom of the bottle facing forward)

6. Bottle Feeding out(the upright bottle is transported to the filling station through the conveyor belt)

7. Rejection of inverted bottles (detection of inverted bottles through photoelectric, and automatic rejection of inverted bottles into the upper bottle hopper by the mechanical inverting device)



Advanced Features



1. The structure is compact, the floor space is small, the whole machine is simple, with only three operation buttons, the operation is simple, and it can be completed by one button.



2. When changing different bottle size, you do not need to change anything, you only need to change the belt in the bottle hopper and adjust the space of the unscrambling structure. And it is applied to 50-1000ml bottle.



3. Bottle mouth flip + bottle mouth blowing function to ensure that there is no impurities in the bottle and ensure product quality. (This function is optional)



4. Automatic bottle elevating function, you only need to put the bottles in the bottle elevator, a sensor is installed in the rotary plate, it will automatically elevates the bottles when there is not enough bottle, it will start when the bottles are enough consequently



5. Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.



6. Equipped with inverted bottle removal device, when bottle fall down, the photoelectric sensor will detects the inverted bottles, it will kicks the bottle back to the bottle collection bucket, without human intervention.
