600BPH Automatic Single Head Capping Machine Convenient Adjustment

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: FX-1D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: 1-5L Automatic Capping Machine
Applicable: Fine Chemical Industry
Model: FX-1D
Capacity: ≤600BPH
Liquid Level To Bottle Mouth Distance: ≥200mm
Applicable Bottle: Min.:140×200×320mm Max.:260×290×410mm
Cap Dimension: Φ35-65mm H15-35mm
Air Source: 0.6-0.8 Mpa Stable And Clean Air
Power Source: ~220V 50Hz
Power: 2.0KW
High Light:

600BPH Single Head Capping Machine

,

SUS304 Automatic Capping Machine

,

600BPH Automatic Capping Machine

Product Description

1-5L Fine Chemical Industry Bottle Filling Automatic Single Head Automatic Capping Machine​

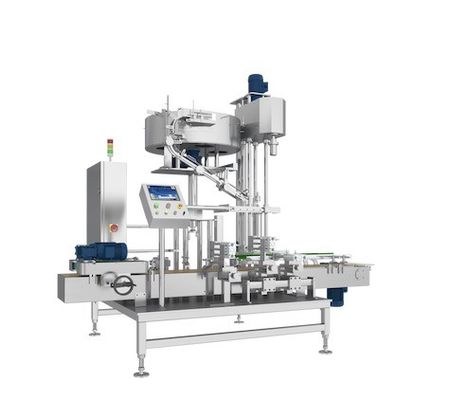

FX-1D single head capping machine is composed of cap sorting&conveying mechanism, cap grabbing&capping mechanism, conveying mechanism and control system.The whole machine has simple structure and convenient adjustment. It is suitable for automatic capping of 5-30l barrels.



Technological process



1. Cap sorting (cap sorting by rotary table, front cap goes into cap falling groove, reversed cap will be kicked back to cap sorter)

2. Bottle feeding (before entering the capping part, use the belt to clamp the bottle and feed the bottle separately)

3. Grab the cap (scrape the cap under the gripper with a mold, grab the cap with a three claw gripper, and prepare to screw the cap)

4. Screw cap (Use mold positioning to screw the cap)

5. Bottle out (after capping, the bottle goes out of the equipment)





Equipment advantages


1. The electric control system of the whole machine adopts Schneider configuration and integrated electric control system, which is more stable, reliable, safe, green and low energy consumption.
2. High-precision: The cap is screwed by an independent motor, and the torque is adjustable without damaging the cap, so as to ensure that the torque of the cover is constant, and the qualified rate is 100%.
3. The mold automatically positions the cap,screwing process is stable and without bottle shaking.
4. The enlarged cap sorter has simple adjustment and is suitable for all kinds of general cap types.







Technical Parameters

1 Capacity ≤600BPH
2 Liquid level to bottle mouth distance ≥200mm
3 Qualification Rate ≥99%
4 Applicable Bottle

Min.:140×200×320mm

Max.:260×290×410mm

5 Cap Dimension Φ35-65mm H15-35mm
6 Air Pressure 0.6-0.8 Mpa
7 Power Source ~220V 50Hz/2.0KW
8 Weight ~1200Kg
9 External Dimension 2150×1595×2280mm(L×W×H)



Advanced Features

1. The machine comes with a SUS304 stainless steel environmental protection cover, on the top of the equipment with an exhaust port, the production process exhaust can be discharged. The machine meets the environmental protection requirements of the agrochemical industry, and can truly achieve tasteless production.

2. Using the Schneider system and allocations, much more integrated and stable.

3. High precision: individual motor driven the capping process, torque adjustable, do not hurt the cap, and ensure the constant torque, 100% qualification rate.

4. Automatic positioning the cap, and no liquid shake out.
