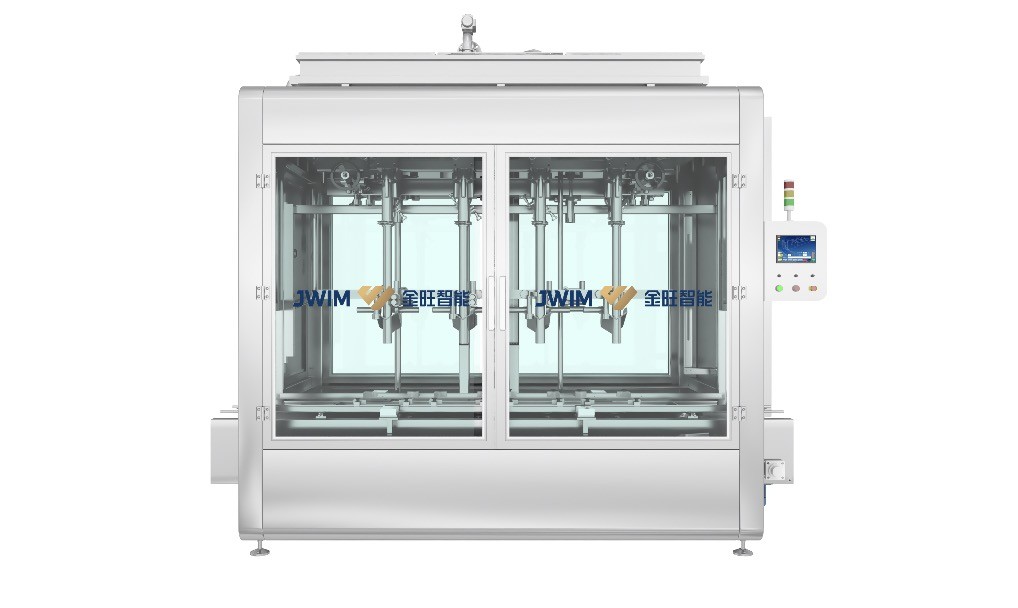

5-30L Herbicide Weighing Filling Machine GMP Standard 6 Nozzles

5-30L Herbicide Weighing Filling Machine GMP Standard 6 Nozzles

0.8Mpa herbicide Filling Machine

GMP herbicide Filling Machine

6 nozzles herbicide Filling line

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
CZ-6B Pesticide Filling Machine
400BPH 5kg
Air Pressure:
Filling Range:
Filling Nozzle:
6 Nozzles
1.6 KW
Power Supply:
~380V 50Hz
Machine Size:
Suitable Drum:
Max 200×140×320mm Min 290×260×400mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
Contact Us
Contact Now
Product Description

5-30L Organophosphate Insecticide Filling Machine Pesticide Filling Machine​


Introduction of 5-30L pesticide filling machine


CZ-6B Automatic Weight Filling Machine is making up of the linear scale (with roller), chain-driven drum in and out structure, fast and slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials (with or without foam).


Parameters of 5-30L pesticide filling machine


1 Speed

≤400 barrels/hour(5kg)

≤350 barrels/hour(25kg)(filling water)

2 Suitable bottles Max 200×140×320mm Min 290×260×400mm
3 Filling range 5-30Kg
4 Accuracy ±0.2% (filling water)
5 Feeding port diameter DN40
6 Air pressure 0.6-0.8Mpa
7 Feeding port height 2980mm
8 Power ~380V 50Hz/1.6KW
9 Weight Around 1500Kg
10 Machine size 2900×1363×3140 (L×W×H)mm


 Public utilities


1 Power supply The power supply is connected by the buyer to the seller's equipment, and there must be a ground wire to ensure safety
2 Power 5-30L line:AC380V±5% 50Hz 3 phase 5 wires system,15KW
3 Air supply The air source shall be connected by the buyer to the air source point interface used by the seller's equipment.
4 Air pressure 5-30L line:0.6~0.8MPa,>0.4m³/MIN
5 Air quality No dust, oil. Dry and clean instrument gas
6 Place of use Indoor
7 Temperature 0~45℃,< 95%(No condensation)



Features of  5-30L pesticide filling machine


1 High precision: the weighing and filling system (Mettler Toledo weighing sensor of the United States) is adopted to ensure the high precision of filling measurement. The unique way of ball roller is adopted to move the bottle ensures the stable output of the bottle after filling.

2 The electric control system of the whole machine is configured by Schneider of France and integrated with the electric control system, which is more stable, reliable, safe and low energy consumption.

Applications of 5-30L pesticide filling machine

Widely used in pesticide, fine chemical, daily chemical, fertilizer, oil and other industries 5-30l barrels automatic weighing filling.

Working Process

1,Before Filling

① Bottle Counting (empty bottle quantity auto inspection)

② Bottle Locking (fix the bottle position)

5-30L Herbicide  Weighing Filling Machine  GMP Standard 6 Nozzles 0



③Filling by weight (auto tare, fast & slow speed weight filling)

④Dive (motor diving, filling nozzle goes to the bottom and start filling)

⑤Going up after filling (filling nozzle goes up with the liquid till the filling complete)5-30L Herbicide  Weighing Filling Machine  GMP Standard 6 Nozzles 1

3,After Filling

⑥Go to original (filling heads reset to its original position after filling)

⑦Bottle locking withdraws (locking withdraws, filled bottles going to next station)

⑧Cycling filling


5-30L Herbicide  Weighing Filling Machine  GMP Standard 6 Nozzles 2
