Name: Rotating Arm 0.2% Accuracy Pesticide Weighing Filling Machine 5 Drums / Hour 1000kg
Brand: JWIM
SKU: CC-1000
Rating: 4.7 (185 reviews)

Home > products > Pesticide Filling Machine >

Rotating Arm 0.2% Accuracy Pesticide Weighing Filling Machine 5 Drums / Hour 1000kg

Rotating Pesticide Weighing Filling Machine

1000kg Pesticide Weighing Filling Machine

Rotating Arm Pesticide Filling Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

CC-1000

Request A Quote

Rotating Arm 0.2% Accuracy Pesticide Weighing Filling Machine 5 Drums / Hour 1000kg

Product Details

Model Type:

CC-1000

Capacity:

5 Drums/hour For 1000kg

Filling Range:

200kg-1000kg

Machine Size:

2340×685×4000mm (L×W×H)

Air Pressure:

0.6-0.8MPa

Product Pressure:

≤0.2MPa

Temperature:

Normal Temperature

Temperature Range:

0-40℃

Relative Humidity:

56-78% No Condensation

Machine Weight:

1300kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Pack in wooden cases

Delivery Time

50 working days

Payment Terms

L/C, T/T

Supply Ability

1 set per month

RELATED PRODUCTS

Contact Now

Product Description

Rotating Arm 5 Drums / Hour 1000kg 0.2% Accuracy Pesticide Weighing Filling Machine

Introduction:

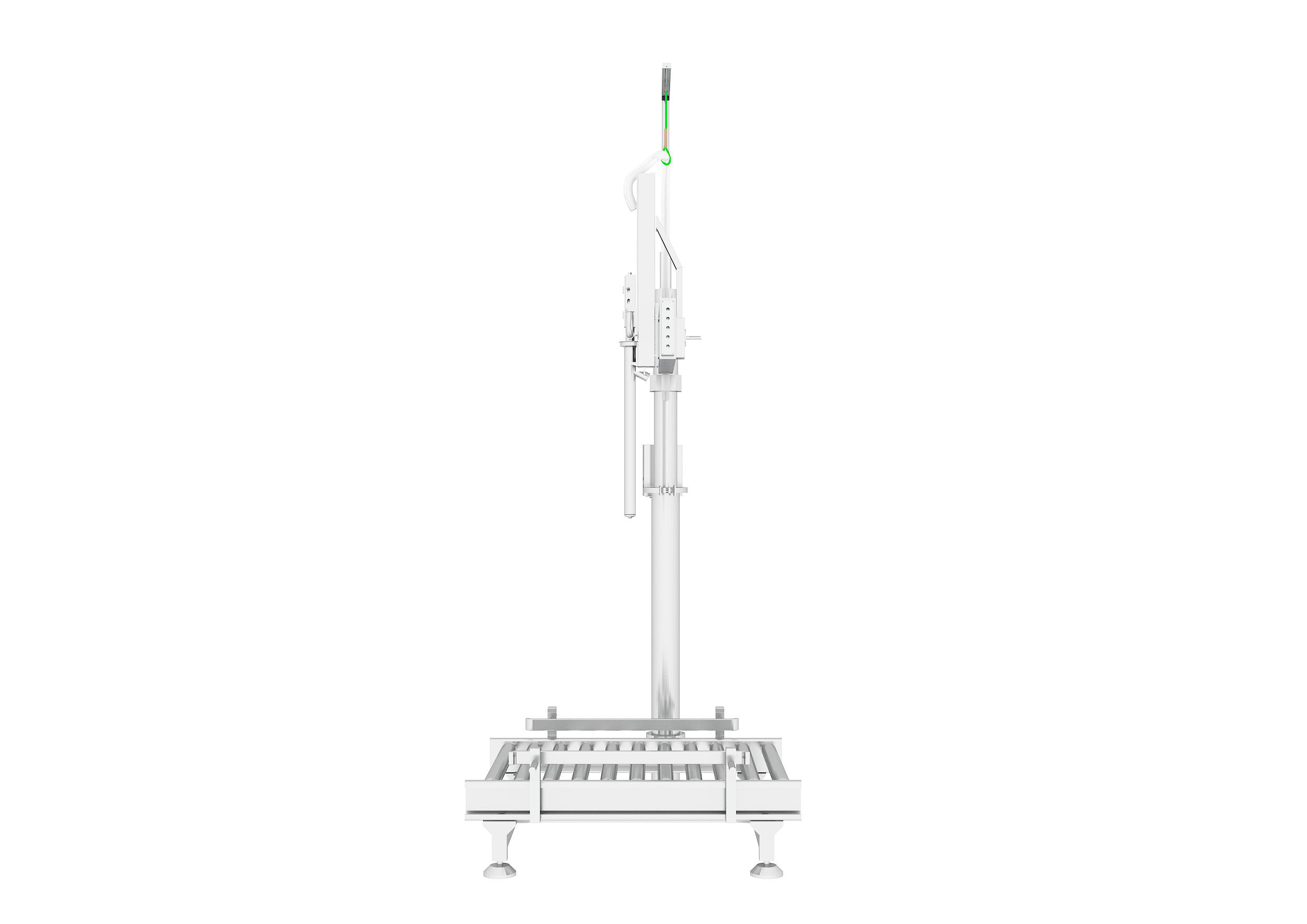

CC-1000 Rotating Arm Ton Drum Filling Machine adopts the weighing to monitor the current filling quantity in real time and feedback to the controller, which outputs fast and slow filling control signals according to the set data to achieve fast and accurate filling of ton drums. It can meet the needs of a variety of liquid automatic filling both with and without foam.

Parameters of CC-1000 Pesticide Filling Machine

1	Filling Range	200-1000kg
2	Filling Precision	±0.2%
3	Capacity	200L: 35-45 drums/hour 1000L: 5 drums/hour
4	Temperature	Normal Temperature
5	Temperature Range	0-40℃
6	Relative Humidity	56-78% No condensation
7	Power Source	～380V 50Hz/1.55KW
8	Air Pressure	0.6-0.8MPa
9	Product Feeding Height	1700mm
10	Drum Opening Diameter	≥φ58mm
11	External Dimension	2340×685×4000mm (L×W×H)
12	Weight	1300kg

Configurations of CC-1000 Pesticide Filling Machine

Name	Brand
Weighing System	METTLER TOLEDO
PLC	Schneider
HMI	Schneider
Inverter	Schneider
Proximity Switch	Schneider
Button	Schneider
Alarm Light	Schneider
Circuit Breaker	Schneider

Features:
1. Small occupation area, compact structure, simple to use, only one person to operate, labor saving.
2. High Precision: Weighing filling (US Mettler Toledo Weighing Sensor) to make sure the high filling precision.
3. The filling head is equipped with a rotating liquid cup. After filling, the liquid cup will collect the residual material on the filling head to prevent the product from leaking and contaminating the container.
4. Adopt fast and slow filling to ensure filling accuracy and speed.
5. Diving nozzles to prevent the product splash.
6. Automatic diagnosis, fault automatic alarm function to improve system reliability.
7. Tare weight inspection function, It is used to detect whether the container on the platform is correct positioned or there is product in the container.
8. The machine uses France Schneider Control system to control the operating stability. Meanwhile, the control system is with low energy consumption.

Features of CC-1000 Pesticide Filling Machine

1 The machine is easy to operate even by a single person, has a small occupation area, and is compact.

2 The high filling precision is achieved with the use of US Mettler Toledo Weighing Sensors.

3 In the filling head, there is a rotating liquid cup that collects residual material. This prevents leakage and contamination of the container after filling.

FAQ

Q: Are you a factory or trading company?	A: Our company is a professional manufacturer dealing with agricultural and animal husbandry intelligent factory. Our company is a high-tech enterprise integrating research, development, production, marketing, and after-sales services. At present, we have 600 employees, and more than 300 design and R&D staff.
Q:Where is your factory located? How can I visit there?	A:We are located in Changzhou City, a small city in Jiangsu Province, north-west of Shanghai. By train, it's only about an hour's journey from Shanghai to our city. By car, it's about three hours. Therefore, we welcome customers from everywhere to come and visit our factory.
