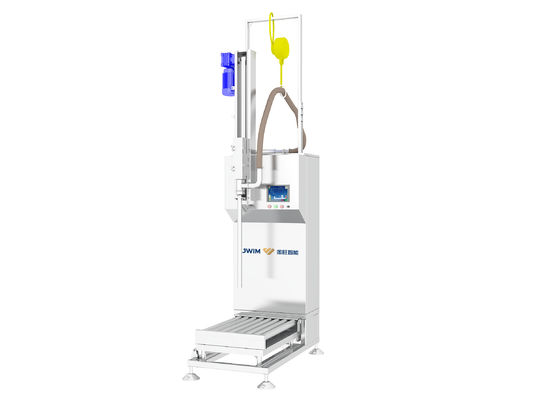

Accurate Semi Automatic Filling Machine High Precision Pesticide Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINWANG
Certification: CE,ISO9001,ISO18000,ISO14000
Model Number: CC300-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Name: Fixed Quantity Weight Filling Machine
Filling Structure: Linear Two Station
Filling Nozzle: Anti-corrosive, No Drops
Drum Opening Diameter: 55-65mm
Drum Diameter:: 500-700mm, Height: 800-1000mm
Filling Range: 100-250Kg
Division Value: 100g
Filling Precision: ±500g
Power Sourceperature:: ~380V 50Hz/2KW
High Light:

Semi Automatic Filling Machine


Accurate Pesticide Filling Machine


High Precision Pesticide Filling Machine

Product Description

Accurate Semi Automatic Filling Machine High Precision Pesticide Filling Machine

1. Introduction


CC300C Automatic Weight filling machine adopts the latest weight filling system, filling volume is set by man-machine interface, automatic weight filling, filling speed can be adjusted. It can meet the needs of a variety of liquid automatic filling both with and without foam.


2.Main Technical Parameters


1 Applicable Drum Size Max Φ580×930mm Round Drum
2 Filling Range 100-250Kg
3 Division Value 100g
4 Filling Precision


Precision differs from product characteristic and product


5 Capacity

30 Drums/hour

Capacity differs from product, drum and product characteristic

6 Product Feeding Height 1940mm
7 Product Feeding Diameter Φ35mm
8 Filling Nozzle Diameter Φ40mm
9 Min Opening Diameter ≥Φ55mm
10 Air Pressure/Consumption 0.6-0.8MPa/100L/min
11 Power Source ~380V 50Hz/2KW
12 External Dimension 730×1300×3400mm(L×W×H)
13 Weight About 350Kg



3. Features


3.1 Compacted structure and simple operation.

3.2. High Precision: Adopts America METTLER TOLEDO weighing sensor and control meter, ensures that the filling precision of measurement.

3.3 The process is like this: Two empty drums will enter the filling machine, auto positioning and aim at the mouth, filling head going down, fast filling ,slow filling, valve close, filling head going up, filled drum going out, empty drums enter again.

3.4 Liquid holder can be added on the filling head, it will hold the liquid drops after filling to avoid the liquids pollute the drums

3.5 The filling machine is with SUS304 frame which can be used in the agrochemical industry, Stainless steel cover and organic glass cover seal the machine, the air ventilation hole on top of the filling machine can connect with the ventilation system to discharge the air during production



1. Small occupation area, compact structure, simple to use, only one person to operate, labor saving.
2. High Precision: Weighing filling (US Mettler Toledo Weighing Sensor) to make sure the high filling precision.

3. Fast and slow filling valve is adopted to ensure the accuracy of filling without affecting the overall filling speed. With filling nozzle diving mechanism, it can both fill on or under liquid surface, suitable for filling products with no foam or slight foam.

4. The filling head is equipped with a rotating liquid cup. After filling, the liquid cup will collect the residual material on the filling head to prevent the product from leaking and contaminating the container.


5. The machine uses France Schneider Control system to control the operating stability. Meanwhile, the control system is with low energy consumption.
