Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml

Product Details:
Place of Origin: China
Brand Name: Jinwang
Certification: CE, ISO
Model Number: CCG1000-8AJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15-90 working days
Payment Terms: L/C, T/T
Supply Ability: 1 set/month
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: Automatic High Viscosity Filling Machine
Model Number: CCG1000-8AJ
Material: SUS304
Voltage: 380V/50Hz
Warranty: 1 Year
Capacity: 100ml:≤3000 BPH
Applicable Bottle Type: Round/Square Bottle
Minimum Bottle Mouth Diameter: 22mm
External Dimension: 1795*1240*2068mm(L*W*H)
Weight: About 1000kg
High Light:

Volumetric Piston Liquid Filling Machine

,

1000ml Pesticide Liquid Filling Machine

,

Volumetric Piston Pesticide Filling Machine

Product Description

Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml Automatic Pesticide Filling Mac​hine



1. Introduction of CCG1000-8AJ Automatic Piston Pesticide Filling Machine



CCG 1000-8AJ Automatic Piston Filling Machine is the latest generation of improved volume filling machine, which is suitable for the packaging of various water agents and high viscosity products. The whole machine is of in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate. The whole machine adopts arc frame, which is beautiful and generous. High precision electronic scale automatic weighing data transmission system is selected to make dose adjustment more convenient and quick.

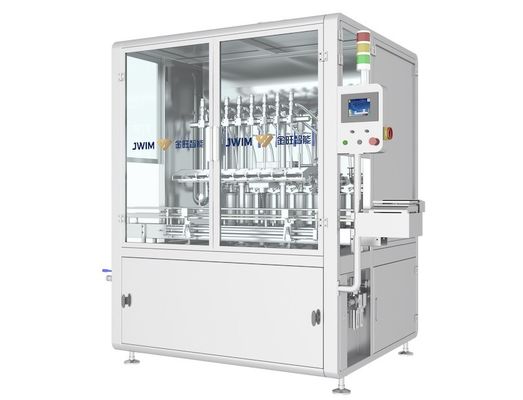

Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml 0





2. Technical Parameters of CCG1000-8AJ Automatic Volumetric High Viscosity Liquid Filling Machine



1 Capacity

100ml: ≤3000 BPH 500ml: ≤2000 BPH

1000ml:≤1500 BPH

Capacity differs from product, drum and product characteristic

2 Applicable Bottle Size

Round Bottle: Φ40-95mm Height:80-230mm

Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mm

3 Filling Volume 50-1000ml
4 Filling Precision

±1g (50-200ml) ±1.5g (200-500ml)

±2g (1000ml)

Capacity differs from product, drum and product characteristic

5 Product Feeding Height 2012mm
6 Product Feeding Diameter DN40
7 Filling Nozzle Diameter Φ18mm
8 Min Opening Diameter ≥Φ22mm
9 Air Pressure 0.6-0.8MPa
10 Power Source ~380V 50Hz/3.55KW
11 External Dimension 1795×1240×2068mm (L×W×H)
12 Weight About 1000kg







3. Advantages of CCG1000-8AJ Pesticide Automatic Filling Machine



① One-button release. The filling unit adopts a detachable structure, which can completely empty the material in the material tank, effectively avoiding the cross-contamination of the material.

Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml 1



② One-piece filling head. The filling head has a longer service life.

Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml 2



③ Arc design material box. The arc-shaped design at the bottom of the material box of the filling machine ensures that the material is discharged cleanly.

Volumetric Piston Pesticide High Viscosity Liquid Filling Machine Automatic 50ml-1000ml 3



5. FAQ



Q: Are you a factory or trading company?



A: JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent industry. We are a high-tech enterprise integrated with R&D, manufacturing, marketing, and service. At present, it has 600 employees and more than 300 technicians.



Q: If there’s something wrong with the equipment, how will you solve the problems quickly?



A: After getting customer’s problems, our engineer will analyze them through pictures or videos. If the problems are small, we will guide the customer to solve the problem by video call or guiding pictures; if there’s something wrong with parts, we will send the spare parts to the customer immediately; if there are some problems the customer can not solve and ask our engineer to site to check, our engineer will set out after getting the flight tickets from the customer.



Q: How about the after-sales service of your equipment?


A: 1. Machine warranty of one year. Spare parts free of charge are supplied within one warranty year (easily damaged parts and man-made damage are exclusive). After one-year warranty, we only charge spare parts at cost price.


2. We will provide you with long-term support in technology. We offer you an operation manual in English.


3. Remote Support. In light of the ongoing health risks surrounding Covid-19, we have developed remote support procedures to keep our customers’ orders and production progressing. We are completing machine FAT via video conference call and undertaking remote installations to get new machines up and running ASAP. Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training.
