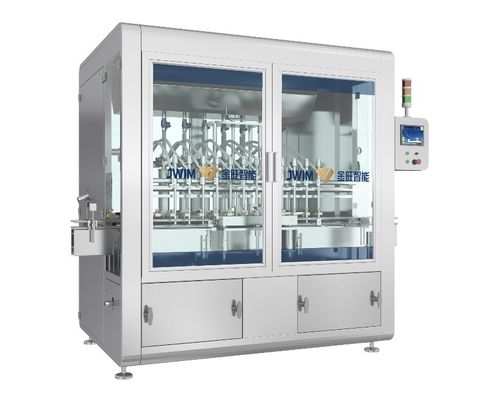

16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating 100ml

16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating 100ml

Piston Chemical Liquid Filling Machine

100ml Chemical Liquid Filling Machine

Lubricating Pesticide Filling Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

CCG1000-16TJ

Contact Us
Request A Quote
Product Details
Product Name:
Viscosity Liquid Filling Machine
Filling Heads:
16 Nozzles
Filling Capacity:
100ml-6000bph
Max Filling Volume:
1000ml
Weight:
About 1200kg
Voltage:
220V/380V
Warranty:
1 Year
Application:
Pesticide, Daily Chemical
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Pack in wooden cases
Delivery Time
30 working days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

100ml Bottle 16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating Piston Liquid Filling Machin



1. General Introduction of 16 Filling Heads Piston Liquid Filling Machine Horizontal 6000 BPH For 100ml Bottle



CCG1000-16TJ Automatic Piston Filling Machine is the latest generation of improved volume filling machine, which is suitable for the packaging of various water agents and high viscosity products. Whole machine is of in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate. The whole machine adopts arc frame, which is beautiful and generous. High precision electronic scale automatic weighing data transmission system is selected to make dose adjustment more convenient and quick.

16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating 100ml 0



2. Technical Parameters of 16 Nozzles Piston Liquid Filling Machine for Daily Chemical, Veterinary Drug



Capacity



100ml: ≤6000 BPH

1000ml:≤3000 BPH



Applicable Bottle Size



Round Bottle: Φ40-95mm Height:80-230mm

Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mm



Filling Volume



50-1000ml



Filling Precision



±1g (50-200ml)

±1.5g (200-500ml)

±2g(1000ml)



Filling Nozzle Diameter



φ18mm



Power Source



~380V 50Hz/3.55KW



External Dimension



2435×1490×2480mm(L×W×H)



Weight



About 1200kg





3. Electrical Configuration of Pesticide Chemical Liquid Filling Machine



No. Name Brand
1 PLC Schneider
2 HMI Schneider
3 Inverter Schneider
4 Servo System Schneider
5 Counting Sensor SICK
6 Proximity Switch Schneider
7 Power Switch Schneider
8 Pressure Gauge SMC
9 Cylinder FTEC
10 Solenoid Valve FTEC
11 Button Schneider
12 Alarm Light Schneider
13 Circuit Breaker Schneider

4. Features of CCG1000-16TJ Agrochemical Pesticide Filling Machine

① The equipment is widely used in the automatic filling of 50-1000ml bottles in pesticides, veterinary drugs, daily chemicals, fertilizers, oils and other industries.



16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating 100ml 1

② The filling unit uses piston off structure, it can completely discharge the product in the tank, effectively avoid the cross-contamination. This structure also makes the sealing ring changing easier.

16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating 100ml 2

FAQ:

Q: Are you a factory or trading company?

A: JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent factory. We are a high-tech enterprise integrated with R&D, manufacturing, marketing and service. At present, it has 600 employees and more than 300 design and R & D.





Q:Where is your factory located? How can I visit there?

A: Our factory is located in Changzhou city, Jiangsu Province, near to Shanghai, it’s in the north-west of Shanghai, from Shanghai to our city take train only need 1 hour, if take car need about 3 hours, we welcome the customer from everywhere to visit our company.





Q: If equipments has problems during running, how will you solve the problems quickly?

A: After getting customer’s problems, our engineer will analyze it through pictures or videos, if it is some small problems, we will guide customer how to solve the problem by video call or send some guiding pictures; if there’s some parts breakdown, we will send the spare parts to customer immediately; if there’s some problems customer can not solve and ask our engineer to site to check, our engineer will start off after getting the flight tickets from customer.





Q: How about the after-sales service of your equipment?

A: 1. Machine warranty one year. Spare parts free of charge are supplied within one warranty year(easy damaged parts and man-made damaged are exclusive), over one warranty year, we only charge spare parts at cost price.
2. We will give you long time technology supply. We offer your side with operation manual in English.
3. We can dispatch our engineer to customer site for installing and debugging machines. customer need to take some fees.

4. Customer can also dispatch engineer to our site to do inspection after production of machines finished, we are responsible to offer your engineers' training in free of charge.

5. Remote Support In light of the risks surrounding Covid-19, at Jinwang we have developed remotesupport procedures to keep our customers’ orders and production progressing.We are completing machine FAT’s and demo’s via video conference call and undertaking remote installations to get new machines up and running ASAP. Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training.





Q: Payment Terms ?
A: T/T 30%-50% deposit, the balance should be paid before delivery.





Q:Machine Package?
A:Each Machine will be sprayed antirust oil, wrapped by PO film for protection, and will be packed to the standard fumigation free wooden cases.





Q: Training system?
A: JWIM is committed to providing its customers with a comprehensive technical training program for their personnel. Through training, operators’ correct performance can be guaranteed, maintenance quality can be improved, and operators’ ability to handle failures can be enhanced to minimize the downtime and improve the working efficiency of equipment.

Our training includes multiple functional courses such as functional structure principles, process procedures, commissioning, repair and maintenance. We provide a variety of training methods such as networking, on-site and off-site training modes, and tailor training programs based on-site staff needs, skills, and their specific requirements.

Training Resources

The diversity of training methods allows customers to choose flexibly according to their own situation.Multi-level training materials can be used according to the actual needs of customers A team of experienced designers and engineers can provide high-quality training results.
