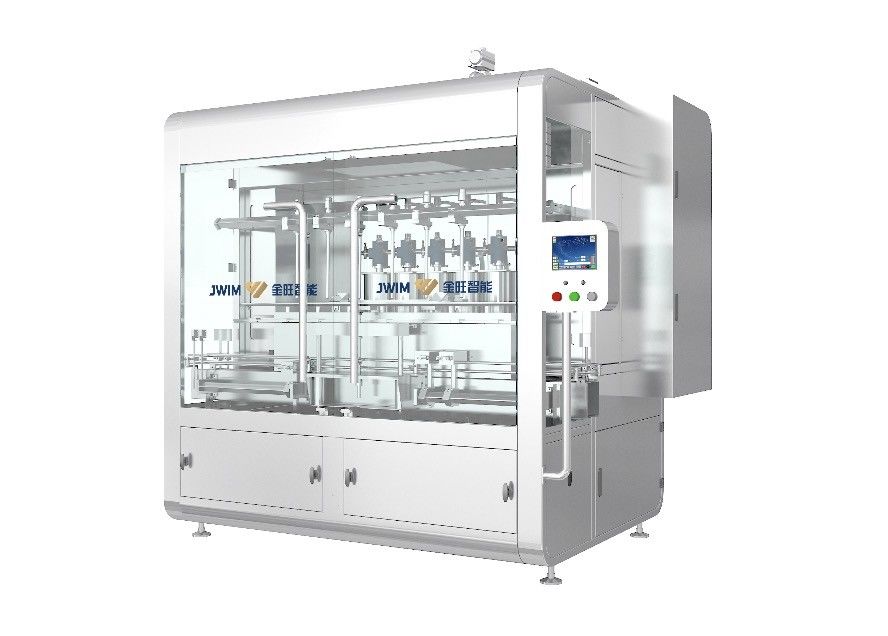

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L

Product Details:
Place of Origin: In China
Brand Name: Jingwang
Certification: CE,CO,ISO
Model Number: CCG5000-6TS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 15-90 days
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: CCG5000-6TS
Filling Volume: 1000ml-5000ml
Product Feeding Height: 2550mm
Product Feeding Diameter: DN40
Filling Nozzle Diameter: Φ26mm
Min Opening Diameter: ≥Φ30mm
Air Pressure: 0.6-0.8MPa
Filling Precision: ±0.2% Precision Differs From Product, Drum And Product Characteristic
Capacity: 1000ml: ≤1200 BPH 5000ml:≤600 BPH
Applicable Bottle Size: Round Bottle: Φ80-140mm Height:140-340mm Flat/Square Bottle: L: 80-200mm W: 80-140mm H: 140-340mm
High Light:

6Nozzles Pesticide Filling Machine

,

Pesticide Filling Machine 5L

,

1200BPH Chemical Filling Equipment

Product Description

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L Pesticide Filling Machine

1. Introduction

  CCG5000-6TS Automatic Piston Filling Machine is suitable for the packaging of various water agents and high viscosity products. Whole machine is of in-line structure, driven by servomotor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate.



2. Machine Dimension

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L 0

3. Technical Parameters of 1200BPH Pesticide Filling Line Machine



1 Capacity

1000ml: ≤1200 BPH 5000ml:≤600 BPH

Capacity differs from product, drum and product characteristic

2 Applicable Bottle Size

Round Bottle: Φ80-140mm Height:140-340mm

Flat/Square Bottle: L: 80-200mm W: 80-140mm H: 140-340mm

3 Filling Volume 1000ml-5000ml
4 Filling Precision

±0.2%

Precision differs from product, drum and product characteristic

5 Product Feeding Height 2550mm
6 Product Feeding Diameter DN40
7 Filling Nozzle Diameter Φ26mm
8 Min Opening Diameter ≥Φ30mm
9 Air Pressure 0.6-0.8MPa
10 Power Source ~380V 50Hz/2.2KW
11 External Dimension 2365×1600×2750mm(L×W×H)
12 Weight About 2100kg





4. Features

a) It is widely used for the automatic filling from 1L-5L in agrochemical, animal medicine, chemical, fertilizer, personal care products, oil, and other related industries.

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L 1

b)The filling unit uses a piston-off structure, it can completely discharge the product in the tank, effectively avoiding cross-contamination. This structure also makes the sealing ring changing easier.

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L 2

c)Jinwang uses PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling. The synchronous belt will not break with embedded metal wire. At present, first-class packaging manufacturers are using this structure. Compared with similar products on the market, it adopts a common motor + encoder and chain drive structure. After a long time of usage, the tensile chain will affect the filling accuracy and equipment stability.

1200BPH Automatic Pesticide Filling Machine 6 Nozzles Packing 1-5L 3



About Us

Our scientific approach towards designing and executing Agrochemical Facilities creates optimized and flexible manufacturing facilities that cater to all future requirements of our customers. We are a family of experts who have a common vision of providing the right solutions to our clients who produce quality pesticides, thereby improving millions of lives across the world.



60 Bpm Pesticide Filling Line Machine 2



Our Service

1. Personalization
2. Assistance
3. Remote Support
In light of the risks surrounding Covid-19, at Jinwang we have developed remote support procedures to keep our customers' orders and production progressing. We are completing machine FAT via video conference call and undertaking remote installations to get new machines up and running ASAP. Documents can be screened, and our teams can connect with your teams to provide the relevant training
