Place of Origin:
China
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
FX-6AH

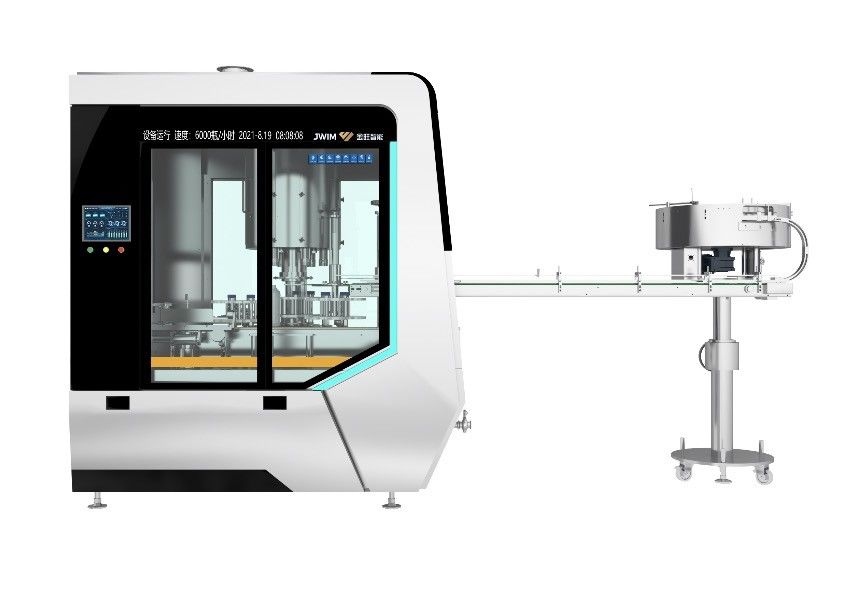

6500 BPH Rotary Bottle Type 80ml-1000ml With 6 Capping Heads Automatic Capping Machine
Brief Introduction of 6500 Bottles/hour Rotary Type Automatic Capping Machine 80ml-1000ml With 6 Capping Heads
The machine integrates bottle feeding, cap sorting, cap screwing and bottle discharging. It adopts cap grasping, positioning and cap screwing. The whole machine is of rotary structure. In the process of capping, there is no bottle damage and capping damage. The capping efficiency is high, the qualified rate is high, the operation is stable and the application range is wide, which can be comparable with similar foreign products.
The machine is applicable to the automatic screwing of various outer covers of various specifications of glass or plastic bottles. The cap grabber is used to grasp various caps transported from the cap scraping plate, and the cap screwing is completed in the process of bottle rotation. The whole machine adopts PLC control and touch man-machine interface, which is convenient and intuitive to operate.
Technical Parameters of FX-6AH Automatic Capping Machine
| 1 | Machine Capacity |
100ml:≤6500 bottles/hour |
| 2 | Qualified rate | ≥99.5% |
| 3 | Applicable bottle type |
Round bottle: Φ40-95mm height 80-250mm Square bottle L45-110mm W45-60mm H 80-250mm |
| 4 | Cap size | Φ20-70mm,cap height 20-40mm |
| 5 | Capping head | 6 |
| 6 | Air pressure | 0.6~0.8MPa |
| 7 | Power supply | ～380V 50Hz |
| 8 | Power | 4.0KW |
| 9 | Machine weight | 1600Kg |
| 10 | Machine size | 2000×1630×2300mm(L×W×H) |
Electrical configuration of FX-6AH Automatic Capping Machine
| S/N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch screen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Counting sensor | SICK |
| 5 | Proximity switch | Schneider |
| 6 | Cylinder | FTEC |
1 Good effect, Real time presentation of the operation status (data) of the whole line. The high-speed railway has high appearance grade and high visibility.
2 Digitization,In order for the production manager to master the production data and operation of the equipment in time, the equipment is equipped with three-color light strips, green means machine running, blue means machine standby and red means alarm.
3 Quick loading mold design, no tools are required for mold replacement.
FAQ
Frequently asked questions
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Agrochemical,fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
