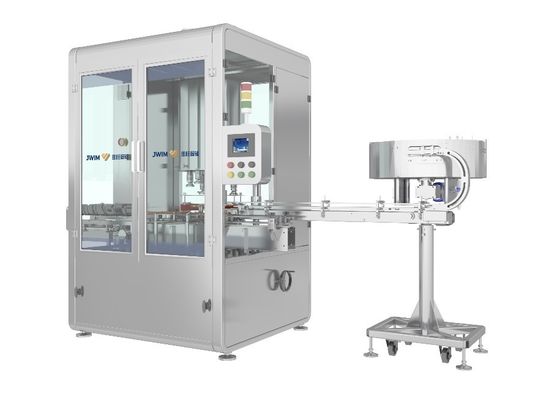

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic

Rotary Auto Screw Capping Machine

PLC Auto Screw Capping Machine

6500 BPH Rotary Capping Machine​

Place of Origin:

China

Brand Name:

Jinwang

Certification:

CE, ISO

Model Number:

FX-6AS

Contact Us
Request A Quote
Product Details
Name:
Automatic Rotary Capping Machine
Model Number:
FX-6AS
Voltage:
~380V, 50Hz
Capping Speed:
≤6500 BPH
Driven Type:
Electric
Warranty:
1 Year
Bottle Type:
Round/Square Bottle
Function:
Auto Feeding Screwing Caps
Qualified Rate:
≥99.5%
Cap Size:
Φ25-60mm, Height 20-40mm
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
15-90 working days
Payment Terms
L/C, T/T
Supply Ability
1 set/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Full Automatic Rotary Capping Machine​



1. Product Introduction of FX-6AS Rotrary Automatic Screwing Capping Machine



The machine integrates bottle feeding, cap sorting, cap screwing and bottle discharging. It adopts cap grasping, positioning and cap screwing. The whole machine is of rotary structure. In the process of capping, there is no bottle damage and capping damage. The capping efficiency is high, the qualified rate is high, the operation is stable and the application range is wide, which can be comparable with similar foreign products.

The machine is applicable to the automatic screwing of various outer covers of various specifications of glass or plastic bottles. The cap grabber is used to grasp various caps transported from the cap scraping plate, and the cap screwing is completed in the process of bottle rotation. The whole machine adopts PLC control and touch man-machine interface, which is convenient and intuitive to operate.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 0

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 1



2. Parameter of FX-6AS Automatic Cap Screwing Machine



Product Name



FX-6AS Auto Feeding Screwing Caps Machine



Qualified Rate



≥99.5%



Applicable bottle type



Round bottle: Φ40-95mm H80-250mm

Square bottle: L45-110mm, W45-60mm, H80-230mm



Cap Size



Φ25-60mm, Cap Height 20-40mm



Capping Head



6



Power Supply



~380V, 50Hz/4.0KW



Weight



About 1600kg



Dimension



1995*1300*2246mm







3. Working Process



PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 2

① Cap sorting (rotary table type cap sorting, front cap goes into cap falling groove, reversed cap will be kicked back to cap sorter)



② Bottle feeding (Screw is used to separate bottles and feed bottles)



③ Cap feeding (the caps on the cap feeding frame are scraped into the grabbing track by the cap scraping disc)



④ Grab the cap (grab the cap on the track and prepare to screw)



⑤ Screw the cap (start to screw the cap, belt stops the rotation of the bottle, and star wheel disc positions the bottle)



⑥ Bottle discharging (after capping, the bottle is discharged from the equipment by the bottle discharging star wheel)



4. Applicable Bottle Type



It is widely used in automatic capping of 50-1000ml bottles in pesticide, veterinary medicine, fine chemical industry, daily chemical industry, fertilizer, oil and other industries.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 3





5. Advantages of FX-6AS 6 Head Automatic Rotary Capping Machine



① Quick installation mold. No tools are required for mold replacement. Moreover, the mold engraving identification is carried out according to different bottle types, the replacement of bottle type specifications is more convenient and fast, and the bottle type switching time is short.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 4



② Detection of inverted bottle and stuck bottle. When the bottle is inverted or the bottle is stuck, the equipment will automatically stop to avoid damage to the twist or star wheel.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 5



Photoelectric detection cap sorting system. The adjustment is simple and stable, and the pass rate is as high as 100%. Enlarging the cap organizer, more cap storage and more stable cap management.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 6



④ Humanized structure. Referring to the design structure of the world's top capping machine manufacturer AROL (Krones capping special supplier), it is equipped with automatic motor lifting (touch screen or jog button) and semi-automatic handle lifting adjustment mode, which is convenient and quick to adjust specifications. At present, similar capping machines on the market can only be adjusted manually, without automatic lifting function, or adopt V-belt drive, which cannot be manually lifted without power supply, and the adjustment is relatively cumbersome.

PLC Rotary Auto Screw Capping Machine 6 Head 50ML-1000ML 6500 BPH Automatic 7



6. FAQ



Q: Are you a factory or trading company?

A: JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent industry. We are a high-tech enterprise integrated with R&D, manufacturing, marketing, and service. At present, it has 600 employees and more than 300 technicians.



Q: If there’s something wrong with the equipment, how will you solve the problems quickly?

A: After getting customer’s problems, our engineer will analyze them through pictures or videos. If the problems are small, we will guide the customer to solve the problem by video call or guiding pictures; if there’s something wrong with parts, we will send the spare parts to the customer immediately; if there are some problems the customer can not solve and ask our engineer to site to check, our engineer will set out after getting the flight tickets from the customer.



Q: Payment Terms?
A: T/T 30%-50% deposit, and the balance should be paid before delivery.



Q:Machine Package?
A:Each Machine will be sprayed with antirust oil, wrapped by PO film for protection, and will be packed into the standard fumigation-free wooden cases.
