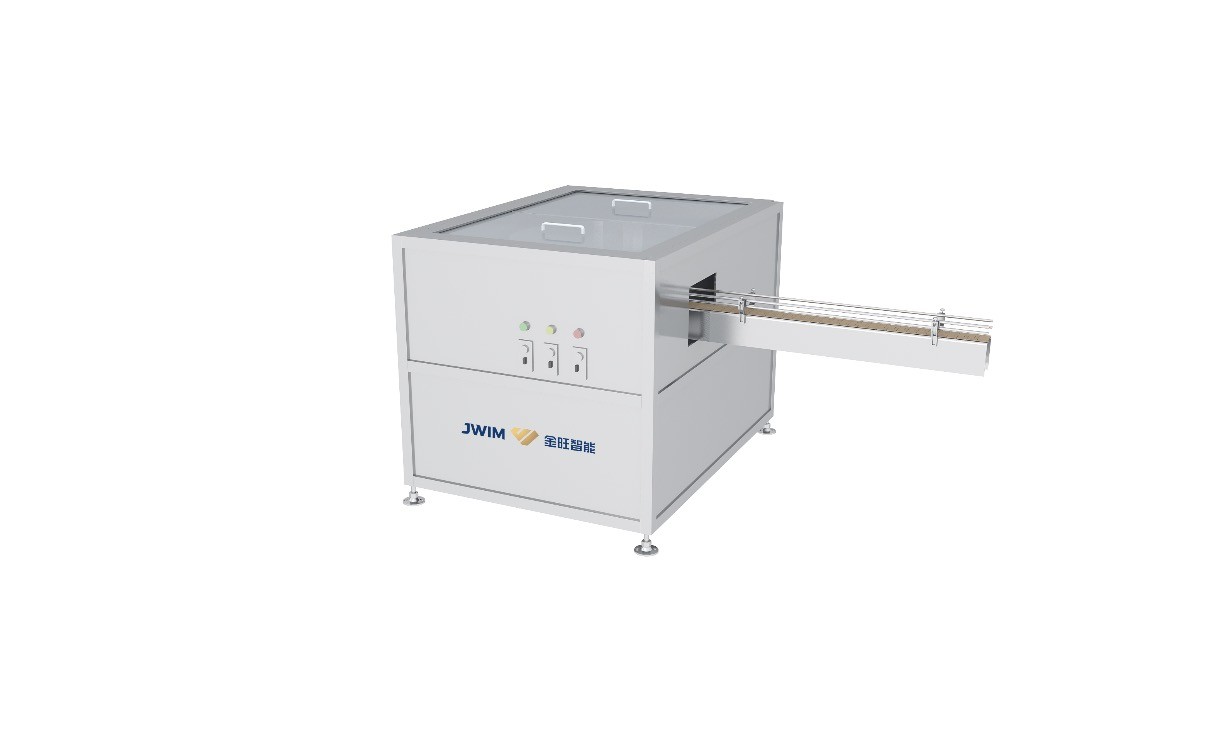

20-100ml Automatic Bottle Unscrambler Machine Speed 100 Bottles Per Minute

Product Details:
Place of Origin: China
Brand Name: JWIM
Certification: CE,ISO
Model Number: LP-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Pack in wooden cases
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Specifications
Specifications
Bottle Size: 20-100ml Round Bottle
Speed: ≤100bottles Per Minute (20ml)
Bottle Dimension: Φ20-40mm Bottle Height 50-120mm
Air Pressure: 0.6-0.8MPa
Power: 220V 50Hz
Total Power: 0.5KW
External Dimension: 1200×1000×1200mm(L×W×H)
Weight: 350kg
Machine Frame: 304 Stainless Steel
High Light:

100ml Automatic Bottle Unscrambler Machine

,

SS304 Bottle Unscrambler Machine

,

100 Bottles/Minute Unscrambler Machine

Product Description

20-100ml Automatic Bottle Unscrambler Machine Speed 100 Bottles Per Minute



Introduction

This equipment consists of a bottle storage mechanism, a bottle unscrambler turntable, and a bottle stand-up mechanism. It is suitable for unscramble plastic round bottles. Disordered bottles are poured into the unscrambler, and the bottles are upright and orderly through the adjustable speed unscrambler turntable. To enter the filling conveyor line.

The equipment has compact structure, simple working principle, stable and reliable operation, high cost performance, and has the function of frequency conversion speed regulation and automatic coordination, which greatly reduces the labor intensity of the operator. It is only necessary to replace a set of molds to replace the bottle type, which is a small bottle management. Ideal for bottles.







Technical parameters of 20-100ml Automatic Bottle Unscrambler Machine Speed 100 Bottles Per Minute



1 Bottles size 20-100mL round bottles
2 Speed of the machine

≤100 BPM(20ml )

3 Bottle dimension Round bottle:Φ20-40mm bottle height 50-120mm
4 Air pressure 0.6-0.8MPa
5 Power  ~220V 50Hz/0.5KW
6 Machine dimension 1200×1000×1200mm(L×W×H)
7 Machine weight ~350Kg



Features of Automatic Bottle Unscrambler Machine Speed 100 Bottles Per Minute



The bottle storage mechanism has large bottle storage space and large bottle storage capacity, which is very convenient for refilling bottles.



Advanced Features



1. The bottle storage mechanism has large bottle storage space and large bottle storage capacity, which is very convenient for refilling bottles.



2,The unscramble mechanism is simple and the action is stable.



3.Complete control functions, simple operation, adjustable bottle unscramble speed, more stable and reliable.



4.This machine has an automatic coordination function. When the bottle inspection photoelectric detects that the bottle is congested in front of the filling machine, the unscrambler suspends operation, and when the bottle inspection photoelectric detects that the congestion disappears, the unscrambler resumes operation.
