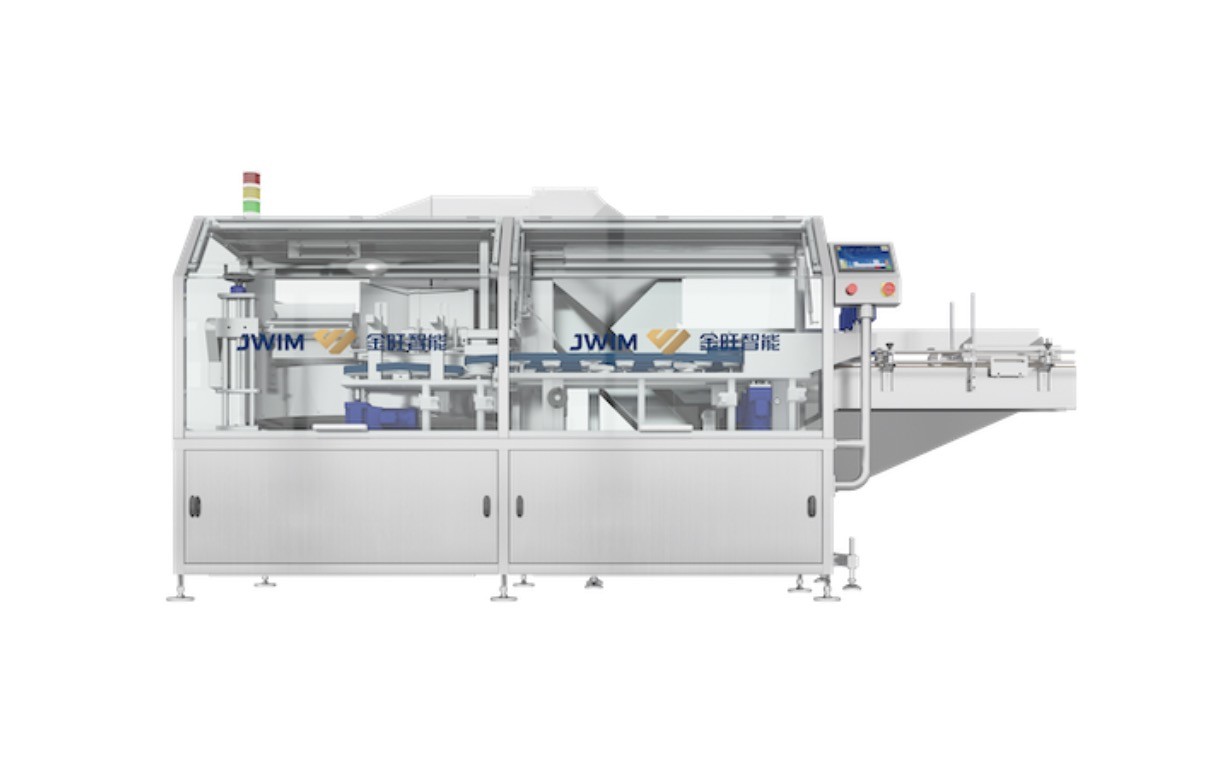

Robotic Bottle Unscrambler Machine Quick Bottle Size Switch 80-1000ml

Product Details:
Place of Origin: made in China
Brand Name: jinwang
Certification: CE,CO,ISO
Model Number: LP-200E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Specifications
Specifications
Machine Name: LP-200E Automatic Bottle Unscrambler
Air Pressure: 0.5-0.7MPa
Air Supply Requirement: Clean Dry Compressed Air Supply
Power: 2.5 KW
Power Supply: 200V 50Hz
Applicable Bottle Size: Φ45-95mm Height 80-230mm
Machine Size: 3550×2008×1800 Mm(L×W×H)
High Light:

Robotic Bottle Unscrambler 1000ml

,

Robotic Bottle Unscrambler 10000 BPH

,

ISO Bottle Unscrambler Machine

Product Description

Robotic Bottle Unscrambler Machine Quick Bottle Size Switch 80-1000ml Bottle Unscrambler Machine



Introduction

LP-200E Automatic Bottle Unscrambler is making up of the bottle bucket, unscrambling plate , bottle reject opponent, bottle-stand-up hook, air rejection device, and detection device as well as the electric cabinet.



It is applied to the bottle unscrambling of plastic round and flat bottle. When putting the disordered bottle into the bottle holder, through the unscrambling plate, then the bottles will stand in the filling line in order. The machine has the features of simple structure, easy operation and good stability. It can reduce the labor force. For now it has been widely used in agro chemical industry.





2. Parameters of 80-1000ml automatic bottle unscrambler



1 Speed of Unscrambling 100ml: ≤10000BPH 500ml: ≤6000BPH
2 Applicable Bottle Size Φ45-95mm
3 Applicable Bottle Height 80-230mm
4 Air Pressure 0.5-0.7MPa
5 Power Source ~200V 50Hz / 2.5KW
6

Size

(Bottle elevator included)

3550×2008×1800 mm(L×W×H)
7

Size

(Bottle elevator excluded)

2520×1485×1375 mm(L×W×H)
8 Weight About 800Kg





























Robotic Bottle Unscrambler Machine Quick Bottle Size Switch 80-1000ml 0Robotic Bottle Unscrambler Machine Quick Bottle Size Switch 80-1000ml 1Robotic Bottle Unscrambler Machine Quick Bottle Size Switch 80-1000ml 2



3.Features of 80-1000ml automatic bottle unscrambler



Molds do not needed when you change different size. What you need to do is to change the quantity of belts in rotary plate and to adjust the distance between different unscrambling parts. You can adjust the distance between belts by adjusting crank. Hand cranking and scaling are convenient.



2 Opening overturning+Opening blowing to make sure there is no impurity inside.





1. Bottle loading (bottle enters the bottle unscrambler turntable through the bottle loading machine)

2. Bottle delivery (the round turntable sends the bottles to the unscramble station, and the belt in the turntable can be used for different bottle diameters by increasing or decreasing the belt in the turntable)

3. Kick the bottle (reject the overlapping bottles to facilitate bottle sorting)

4. Hook bottle (use the bottle hook device to stand the bottle hook upright with the bottle mouth facing forward)

5. Stand up the bottle (use the bottle stand up mechanism to erect the bottle with the bottom of the bottle facing forward)

6. Bottle Feeding out(the upright bottle is transported to the filling station through the conveyor belt)

7. Rejection of inverted bottles (detection of inverted bottles through photoelectric, and automatic rejection of inverted bottles into the upper bottle hopper by the mechanical inverting device)





Advanced Features

1. The structure is compact, the floor space is small, the whole machine is simple, with only three operation buttons, the operation is simple, and it can be completed by one button.



2. When changing different bottle size, you do not need to change anything, you only need to change the belt in the bottle hopper and adjust the space of the unscrambling structure. And it is applied to 50-1000ml bottle.







3. Bottle mouth flip + bottle mouth blowing function to ensure that there is no impurities in the bottle and ensure product quality. (This function is optional)



3. Automatic bottle elevating function, you only need to put the bottles in the bottle elevator, a sensor is installed in the rotary plate, it will automatically elevates the bottles when there is not enough bottle, it will start when the bottles are enough consequently



5. Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.



6. Equipped with inverted bottle removal device, when bottle fall down, the photoelectric sensor will detects the inverted bottles, it will kicks the bottle back to the bottle collection bucket, without human intervention.
