Place of Origin:
China
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
FX-6AH

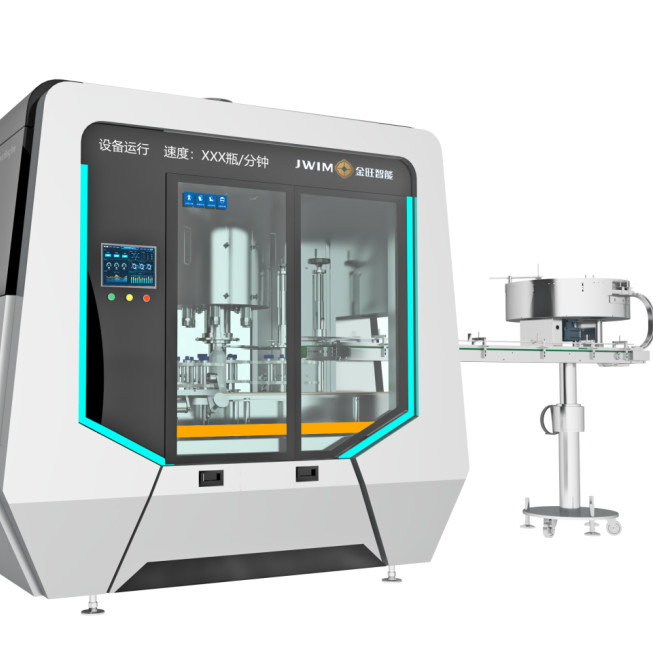

6500 Bottles/hour Rotary Type Automatic Capping Machine 80ml-1000ml With 6 Capping Heads
Brief Introduction of 6500 Bottles/hour Rotary Type Automatic Capping Machine 80ml-1000ml With 6 Capping Heads
Ready to scale-up production? JWIM’s FX-6AH automatic rotary capping machines are designed to handle virtually any size and style of container, and caps ranging. These high-speed capping machines are ideal for use in the food-processing, cosmetic and chemical industries – but as all our equipment is bespoke, they can be widely adjusted.

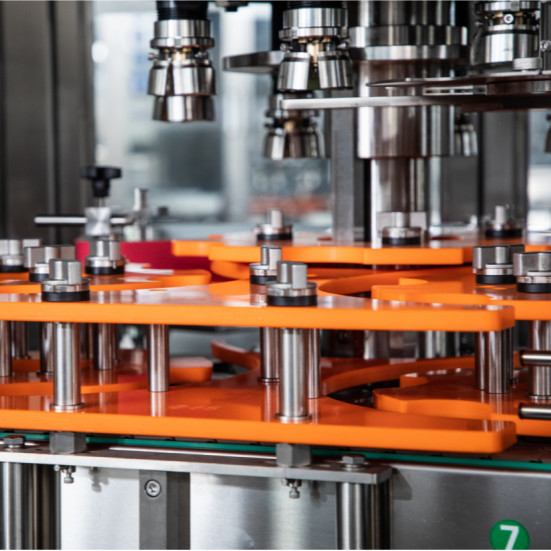

The containers queue up before entering a single star wheel which presents the bottles into the rotating capping station. The star wheel then indexes the bottle into position and the cap is screwed home as the capper rotates.The capped container leaves the machine via a second star wheel.
Technical Parameters of FX-6AH Automatic Capping Machine
| 1 | Machine Capacity |
100ml:≤6500 bottles/hour |
| 2 | Qualified rate | ≥99.5% |
| 3 | Applicable bottle type |
Round bottle: Φ40-95mm height 80-250mm Square bottle L45-110mm W45-60mm H 80-250mm |
| 4 | Cap size | Φ20-70mm,cap height 20-40mm |
| 5 | Capping head | 6 |
| 6 | Air pressure | 0.6~0.8MPa |
| 7 | Power supply | ～380V 50Hz |
| 8 | Power | 4.0KW |
| 9 | Machine weight | 1600Kg |
| 10 | Machine size | 2000×1630×2300mm(L×W×H) |
Electrical configuration of FX-6AH Automatic Capping Machine
| S/N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch screen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Counting sensor | SICK |
| 5 | Proximity switch | Schneider |
| 6 | Cylinder | FTEC |
1 Good effect, Real time presentation of the operation status (data) of the whole line. The high-speed railway has high appearance grade and high visibility.
2 Digitization,In order for the production manager to master the production data and operation of the equipment in time, the equipment is equipped with three-color light strips, green means machine running, blue means machine standby and red means alarm.
3 Quick loading mold design, no tools are required for mold replacement.
FAQ
Frequently asked questions
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Agrochemical,fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
