Twin Heads Automatic Follow Type Capping Machine FXG-2E 2500BPH

Twin Heads Automatic Follow Type Capping Machine FXG-2E 2500BPH

Twin Heads Automatic Capping Machine

Ropp Sealing Automatic Capping Machine

2500BPH Automatic Capping Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

FXG-2E

Contact Us
Request A Quote
Product Details
Machine Name:
FXG-2E Following Type Capping Machine
Capping Heads:
2
Capping Range:
80ml-1000ml
Capping Capacity:
2500 BPH
Machine Frame:
SS304
Safety Configuration:
Safety Door Switch
Qualified Rate:
99%
Machine Weight:
1500kg
Dimension:
2455×1440×2330mm(L×W×H)
Power:
4KW
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

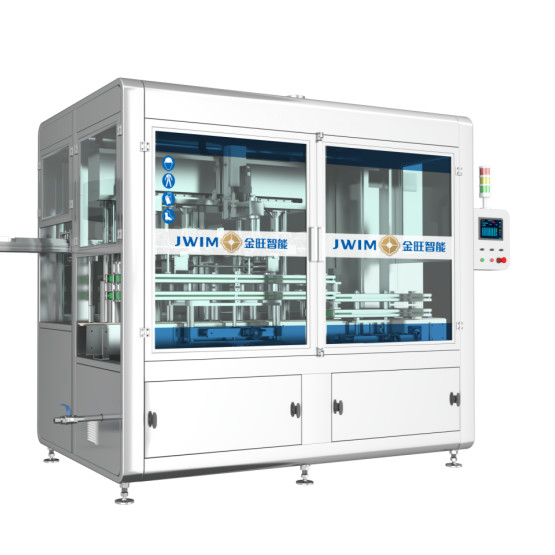

Twin Heads Automatic Follow Type Capping Machine FXG-2E 2500BPH



Introduction of following type 80ml-1000ml automatic capping machine



FXG-2E Automatic Capping Machine is making up with the bottle unscrambler & conveyor, cap gripper & capping structure, moving mold, conveyor structure and control system.  This is the newly developed capping machine, capping process can be done during the conveying of bottles. Compared with the ordinary capping machine, it can avoid the splash of products and make sure the cleanness of drums.


Parameters of following type 80ml-1000ml automatic capping machine

1 Speed ≤2500 Bottles/hour
2 Qualified rate 99%
3 Suitable size

Round bottle:Φ80-140mm Height 140-340mm

Square bottle:L80-200mm W80-140mm H 40-340mm

4 Cap size Φ25-60mm H40-80mm
5 Air pressure 0.6-0.8 Mpa
6 Power ~380V 50Hz/4KW
7 Weight About 1500Kg
8 Dimensions 2455×1440×2330mm(L×W×H)


Configurations of following type 80ml-1000ml automatic capping machine

S/N Name Brand
1 PLC Schneider
2 Touch screen Schneider
3 Converter Schneider
4 Counting sensor Sick
5 Servo system Schneider
6 Switch power supply Schneider
7 Pressure switch SMC
8 Cylinder SMC
9 Solenoid valve SMC
10 Buttons Schneider
11 Circuit breaker Schneider
12 Alarm light Schneider


Features of following type 80ml-1000ml automatic capping machine



1. The electrical control systems uses international system and France Schneider Electrical Components. It has the features of high capacity and stable operation.

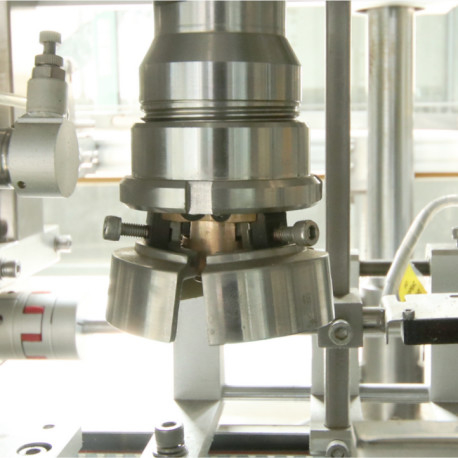

Twin Heads Automatic Follow Type Capping Machine FXG-2E 2500BPH 0







2. Quality promoting: This machine is a latest two heads tracing type capping machine. The new capping machine does not need to stop to avoid the splash of products and make sure the cleanness of drums and conveyor. It will not affect the quality of induction sealing and can promote the quality.

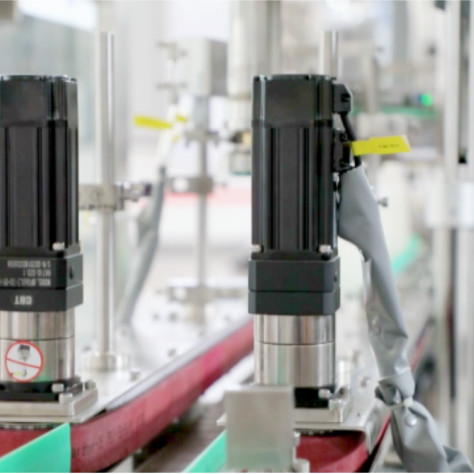

Twin Heads Automatic Follow Type Capping Machine FXG-2E 2500BPH 1
