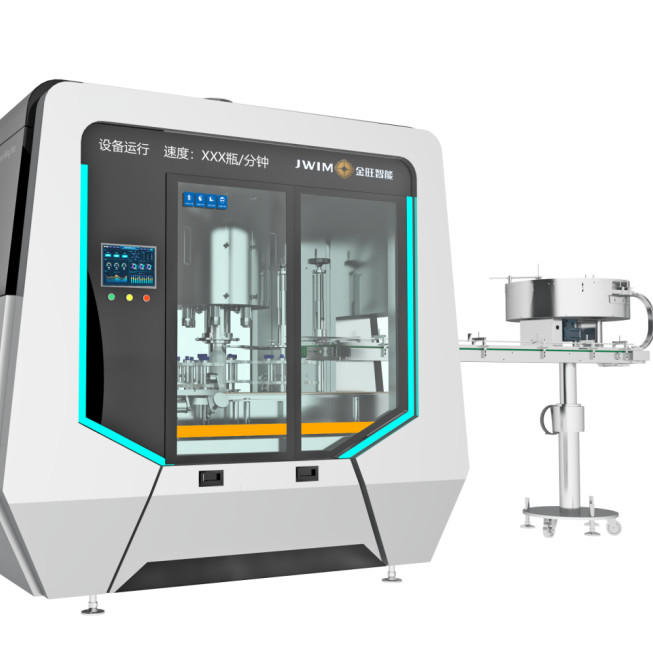

6500 BPH Rotary Type Automatic Capping Machine FX-8AH 80ml-1000ml With 8 Capping Heads

6500 BPH Rotary Type Automatic Capping Machine FX-8AH 80ml-1000ml With 8 Capping Heads

6 Heads Automatic Capping Machine

Rotary Automatic Capping Machine

6500 BPH Automatic Capping Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

FX-8AH

Contact Us
Request A Quote
Product Details
Driven Type:
Electric
Dimensions:
2000×1880×2300mm(L×W×H)
Weight:
1600 Kg
Power:
2.53 Kw
Power Supply:
380v 50hz
Qualified Rate:
≥99.9%
Capacity:
9000 BPH For 100ml Bottle
Capping Heads:
8
Warranty:
1 Year
Air Pressure:
0.6-0.8MPa
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Pack in wooden cases
Delivery Time
50 working days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

9000 Bottles/hour Rotary Type Automatic Capping Machine 80ml-1000ml With 8 Capping Heads



Brief Introduction of 9000 Bottles/hour Rotary Type Automatic Capping Machine 50ml-1000ml With 8 Capping Heads



Ready to scale-up production? JWIM’s FX-8AH automatic rotary capping machines are designed to handle virtually any size and style of container, and caps ranging. These high-speed capping machines are ideal for use in the food-processing, cosmetic and chemical industries – but as all our equipment is bespoke, they can be widely adjusted.

The containers queue up before entering a single star wheel which presents the bottles into the rotating capping station. The star wheel then indexes the bottle into position and the cap is screwed home as the capper rotates.The capped container leaves the machine via a second star wheel.



Technical Parameters of FX-8AH Automatic Capping Machine



1 Machine Capacity

100ml:≤9000 bottles/hour

2 Qualified rate ≥99.9%
3 Applicable bottle type

Round bottle: Φ40-95mm height 80-250mm

Square bottle L45-110mm W45-60mm H 80-250mm

4 Cap size Φ20-70mm,cap height 20-40mm
5 Capping head 8
6 Air pressure 0.6~0.8MPa
7 Power supply ~380V 50Hz
8 Power 2.53KW
9 Machine weight 1600Kg
10 Machine size 2000×1880×2300mm(L×W×H)



Electrical configuration of FX-6AH Automatic Capping Machine



S/N Name Brand
1 PLC Schneider
2 Touch screen Schneider
3 Frequency converter Schneider
4 Counting sensor SICK
5 Proximity switch Schneider
6 Cylinder FTEC

Product Details of FX-8AH Automatic Capping Machine


1 Good effect, Real time presentation of the operation status (data) of the whole line. The high-speed railway has high appearance grade and high visibility.

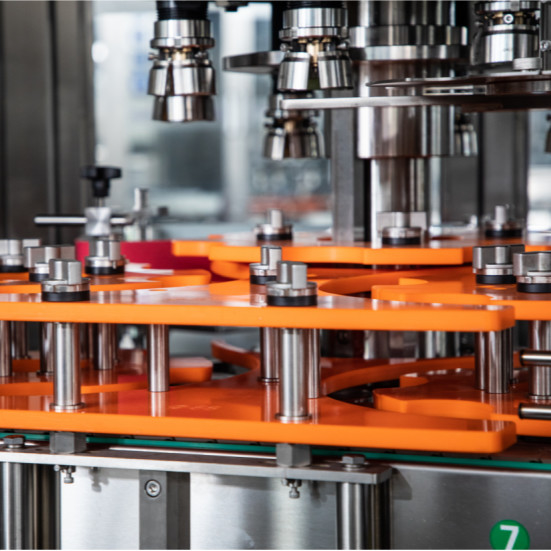

6500 BPH Rotary Type Automatic Capping Machine FX-8AH 80ml-1000ml With 8 Capping Heads 0



2 Digitization,In order for the production manager to master the production data and operation of the equipment in time, the equipment is equipped with three-color light strips, green means machine running, blue means machine standby and red means alarm.

3 Quick loading mold design, no tools are required for mold replacement.

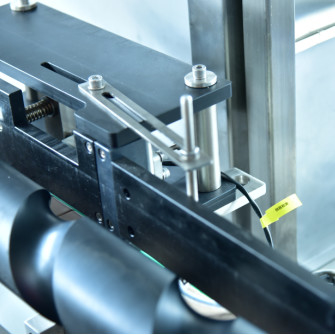

6500 BPH Rotary Type Automatic Capping Machine FX-8AH 80ml-1000ml With 8 Capping Heads 1





FAQ
Frequently asked questions


Q1: Are you a factory or trading company?
A1: We are a factory specialized in Agrochemical,
fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.

Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.


Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
