Place of Origin:
China
Brand Name:
JWIM
Certification:
ISO9001
Model Number:
TS-150

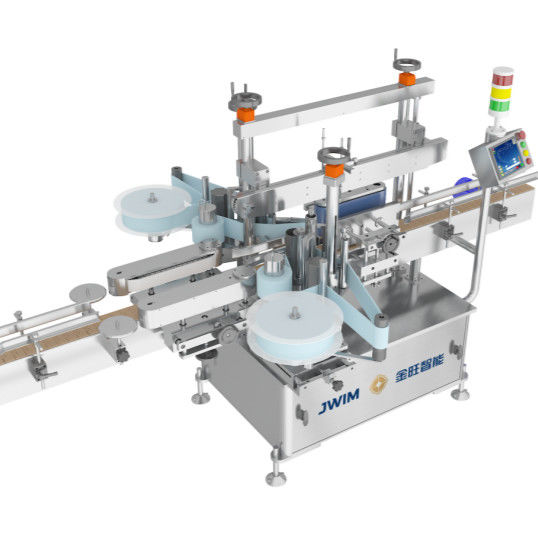

Automatic Round Bottle TS-150 Multifunctional Double-sided Labeling Machine 220V 2.4KW
1. Introduction
Double sided self-adhesive labeling machine is an ideal equipment for fast and automatic labeling of square bottles, flat bottles and other products in pharmaceutical, chemical and other light industries. The machine has advanced functions, simple operation and compact structure. Photoelectric detection, PLC control and touch screen software operation are adopted. The conveying, bottle holding and bottle separation are stepless speed regulation, and the labeling is accurate. At the same time, it has the functions of no bottle, no labeling, automatic correction, automatic detection and so on.
2. Machine Dimension
3. Technical Parameters
|
Labeling Speed
|
50-100 bottles/min |
|
Accuracy
|
±1mm |
|
Label Roll Size
|
inner diameter ≥ φ76mm outer diameter ≤φ340mm |
|
Label Size
|
Length 20-150mm Height 20-160mm |
|
Power Supply
|
~220V, 50Hz, 2.4KW |
|
Machine Size
|
3000*1500*1850mm (L*W*H) |
|
Machine Weight
|
Around 180kg |
4. Advantages

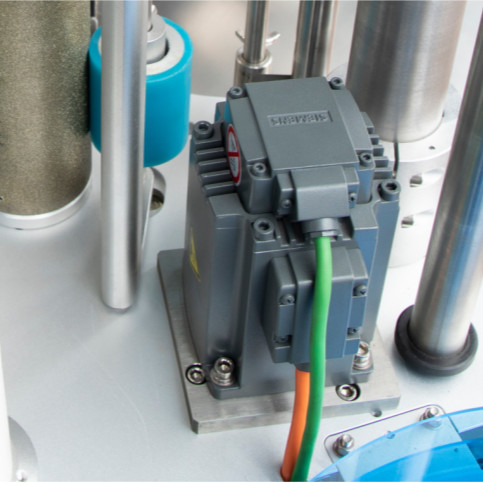

① Servo Motor. Higher labeling accuracy.

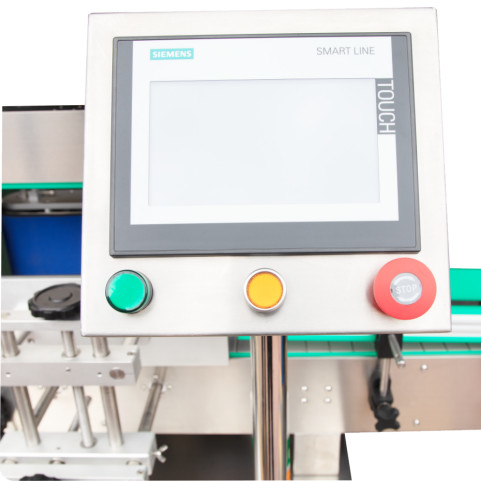

② Microcomputer Touch Screen. Parameter adjustment is more convenient and intuitive.
③ Digital Handle Adjustment. Adjustments are more intuitive and specification changes are quicker.
