100g-1kg Rotary Bag Packing Machine For Powder

100g-1kg Rotary Bag Packing Machine For Powder

1kg Rotary Bag Packing Machine

Powder Rotary Bag Packing Machine

100g Rotary Bag Packing Machine

Place of Origin:

made in China

Brand Name:

Jinwang

Certification:

CE,CO,ISO

Model Number:

GD6/8-300

Contact Us
Request A Quote
Product Details
Name:
100g-1000g Rotary Pouch Packaging Line Suits For Veterinary, Fertilizer, Chemicals Powder Granule Product
Model:
GD6/8-300
Capacity:
10-25pouch/min * Actual Capacity Depends On The Packaging Material
Applicable Size:
Pouch Width 200-300mm; Pouch Length 150-410mm (customized)
Pouch Pattern:
Flat Bag;
Packing Volume:
100g-1000g
Filling Precision:
±1%(depends On The Packaging Material)
Sealing Style:
Net Type. Sealing Width 10mm-15mm (can Be Adjusted Slightly)
Power Supply:
AC 380V±10%,3-phase 50Hz
Power:
4KW
Air Source:
0.6-0.8 Mpa Stable And Clean Air
External Equipment:
1960×1950×1660mm(L×W×H)
Gross Weight:
1700Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

The machine is rotary structure, eight working positions, wide range of packaging, can package liquid, powder, particles, solids, materials, just according to different materials choose different metering filling device can be. The machine can change the specification of the bag quickly, the width of the automatic feeding device can be easily and quickly adjusted by adjusting the handle; Testing machine in the absence of packaging or packaging not open the filling device is not filled, heat sealing device, sealing, so as to avoid wasting packaging materials and raw materials.



100g-1kg Rotary Bag Packing Machine For  Powder 0



Technical Parameters

  Name Rotary Pouch Packing Machine
1 Working Position six/eight/ten working position
2 Pouch Material

Laminated Film

3 Pouch Pattern Flat bag;Stand-up bag; stand-up bag with zipper
4 Pouch Size

GD8-200: width 100-210mm; Length 100-350mm

GD8-300: width 200-300mm; Length 100-450mm

GD8-350: width 250-350mm; Length 200-560mm

5 Packing Range

GD8-200: 50g-500g

GD8-300: 100g-1000g

GD8-350: 1kg-5kg

6 Packing Speed

GD8-200: 20-40 bags per minute

GD8-300: 10-25 bags per minute

GD8-350: 10-15 bags per minute

7 Power Supply AC 380V±10%,3-phase 50Hz
8 Air Source 0.5-0.8kgf/cm²,0.4³/min
9 External Equipment 1960×1950×1660mm(L×W×H)
10 Gross Weight ~ 1700Kg



* The rotary pouch packing machine can be 6 or 8 or 10 stations reserved depends on the packaging product and the bag type.



Applications

Various bag types are available: All types of heat sealable performed side seal bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, etc.



100g-1kg Rotary Bag Packing Machine For  Powder 1

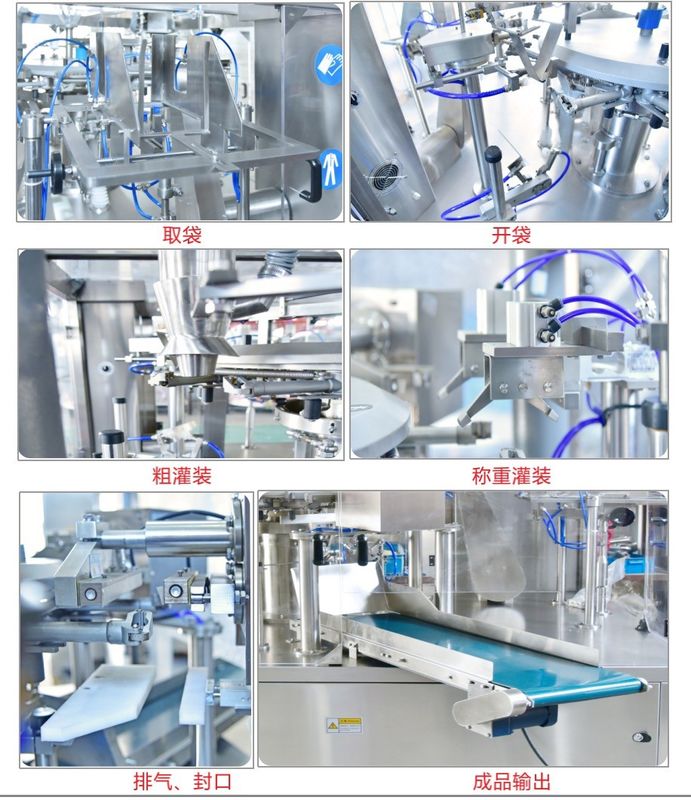

Work Process
Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zipper bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 Vibration, Air Removal, Nitrogen Filling, Close Zipper, Hole Punching, Heat Sealing
Remark: No.5.6.7 Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output
Safety Measures
1.no bag feeding, no filling, and no sealing.
2.no bag opening/open error, no filling and no sealing
3.no filling, no sealing
Stations are based on customer requirements for adjusting.



100g-1kg Rotary Bag Packing Machine For  Powder 2



100g-1kg Rotary Bag Packing Machine For  Powder 3



100g-1kg Rotary Bag Packing Machine For  Powder 4
