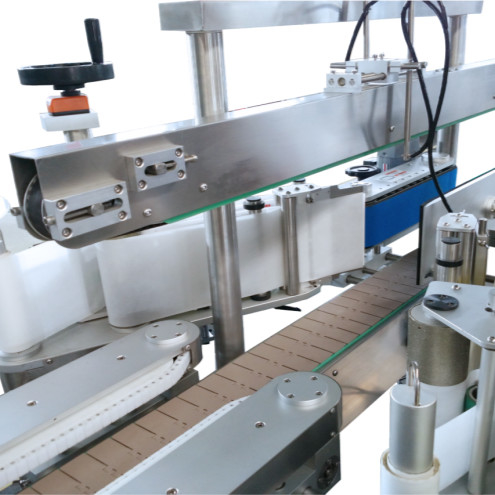

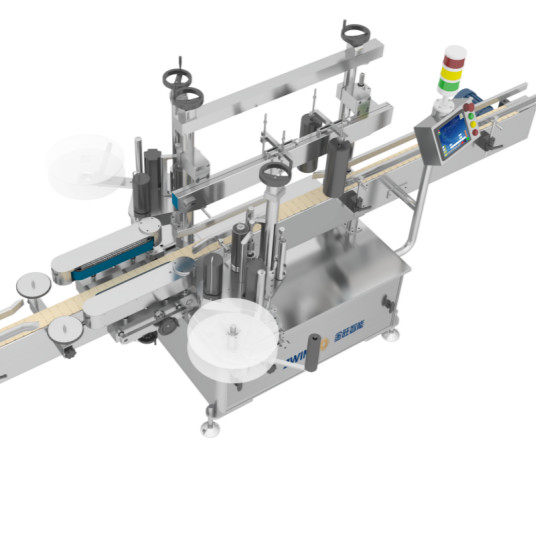

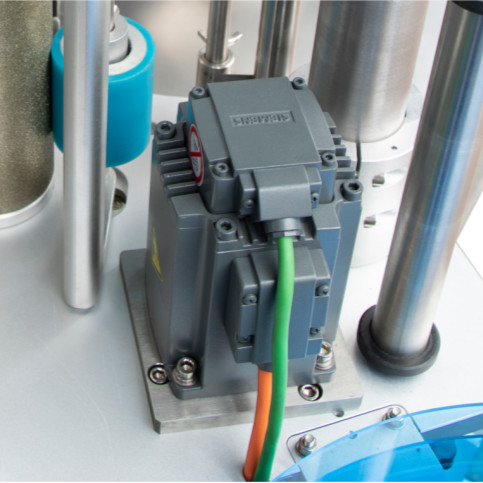

TS-150B Multifunctional Double-sided Labeling Machine
1. Introduction
The multifunctional self-adhesive labeling machine is an ideal equipment for fast and automatic labeling of square flat bottles, round bottles and other products in various packaging industries. The machine has advanced functions, simple operation and compact structure.
Photoelectric detection, PLC control and touch screen software operation are adopted. The conveying, bottle holding and bottle separation are step-less speed regulation, and the labeling is accurate. At the same time, it has the functions of no bottle, no labeling, automatic correction, automatic detection and so on.
2. Workflow description
Bottle →Bottle dividing→Bottle inspection→Label output,label press→Labeling→Finish

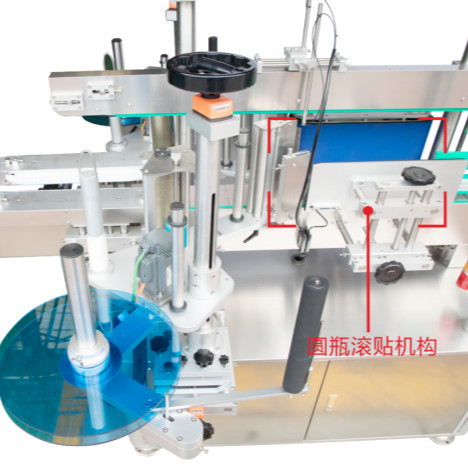

When the bottle enters the marking machine, the initial position is corrected through the calibration mechanism.The bottle is corrected and then enters the press positive mechanism, which allows the bottle to be stable and walk forward without any shaking.After moving to the marking position, start the marking action through the detection signal of the sensor and start the marking.When the labeled bottle moves forward to the marking position, the marking mechanism will Fushun the label on both sides to the bottle to complete the marking process.
3. Functional characteristics
3.1. It has a special function of automatically detecting the sticker size and the label size. When an abnormal sticker or an abnormal label is detected, the system automatically prompts it.
3.2.20 sets of formula parameters can be stored in the touch screen. When producing the products produced in the past, without adjustment, you can directly call the parameters, which greatly facilitates the operator and effectively improves the production efficiency.
3.3. Have the function of no marking without bottle and inverted bottle.
3.4. The machine can have optional code printing during automatic operation.
4. Main technical parameters
4.1. Marking Speed: 50-100 pieces / points (related to material and label size)
4.2. Marking Accuracy: ± 1mm
4.3. Square Bottle Label Size: L: 20-150mm H: 20-160mm (with special requirements)
Round Bottle Label Size : L: 20-260mm H: 140mm (with special requirements)
4.4. Power Supply: 220V 50Hz 2.4KW
4.5. Overall Dimensions: 3000mm × 1500mm × 1850mm
4.6. Total Weight: approximately 400kg
5. Allocation list
No. | Product name | Location | Brand name |
1 |
The PLC controller |
Taiwan
|
DELTA
|
2 | The PLC expansion board | Taiwan | DELTA |
3 | Human-machine interface | Taiwan | DELTA |
4 | Converconverter | Taiwan | DELTA |
5 | Switch on the power supply | Taiwan | DELTA |
6 | Fiber-optic amplifier | South Korea | AUTONICS |
