Place of Origin:
China
Brand Name:
JWIM
Certification:
ISO9001
Model Number:
TN-150KH
Automactic Bottle TN-150KH Adhesive Sticker Labling Machinery 220V 2.2KW

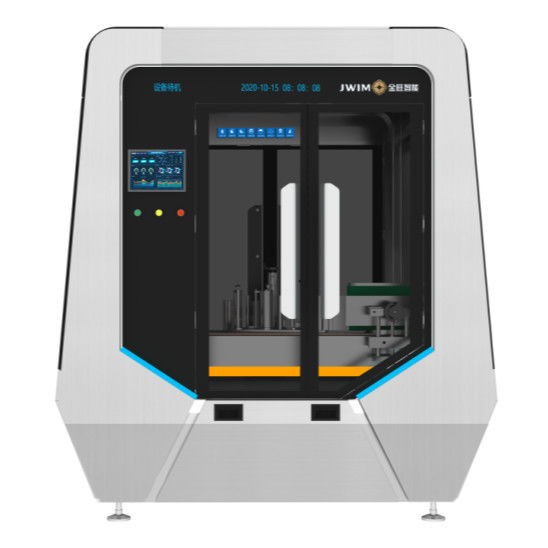

1. Introduction of Automatic Square Bottle Sticker Labeling Machine
Double sided self-adhesive labeling machine is an ideal equipment for fast and automatic labeling of square bottles, flat bottles and other products in pharmaceutical, chemical and other light industries. The machine has advanced functions, simple operation and compact structure.
Photoelectric detection, PLC control and touch screen software operation are adopted. The conveying, bottle holding and bottle separation are stepless speed regulation, and the labeling is accurate. At the same time, it has the functions of no bottle, no labeling, automatic correction, automatic detection and so on.
2. Technical Parameter of Automatic Flat Bottle Sticker Labeling Machine
|
1 |
Labeling speed |
100ml:7000 bottles/hour, 500ml:5000 bottles/hour *The actual production capacity varies according to the product size and packaging material. |
| 2 | Applicable bottle diameter | Φ30-95mm |
| 3 | Label size | Height:20-160mm Length:50-320mm |
| 4 | Labeling accuracy | ±1mm *The labeling accuracy varies according to different materials and label materials |
| 5 | Power supply | ～220V 50Hz/2.2KW |
| 6 | Machine size |
2435×1520×2088mm(L×W×H) |
| 7 | Machine weight | Around 800Kg |
3. Advantages of Double Side Bottle Sticker Labeler

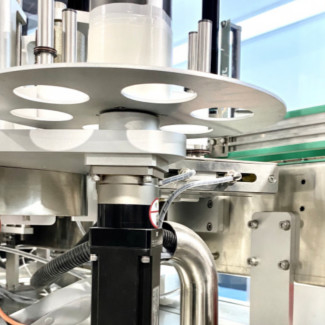

① Servo Motor. Higher labeling accuracy.
② Microcomputer Touch Screen. Parameter adjustment is more convenient and intuitive.
③ Digital Handle Adjustment. Adjustments are more intuitive and specification changes are quicker.
4. Why Choose Us?
Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd. is a high-tech enterprise specializing in the intelligent factory of agricultural and animal husbandry preparations (intelligent processing, intelligent storage, intelligent packaging, and intelligent general control), integrating R & D, manufacturing, sales, and service. At present, we have more than 600 employees, including more than 300 technicians.
