30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH

30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH

30L Drums Sticker Labeling Machine

TN-200LDS Sticker Labeling Machine

2500BPH Bottle Sticker Labeling Machine

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE,ISO90001,ISO18000,ISO14000

Model Number:

TN-200LDS

Contact Us
Request A Quote
30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH
30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH 30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH 30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH 30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH
Product Details
Name:
TN-200LDS Drum Two Sides Labeling Machine
The Material Of Frame:
SS304
Capacity:
1500-2500 Bottles/hour
Labeling Precision:
±2mm
Applied Bottle Size:
Min: 140×200×320mm, Max: 260×290×500mm (L*W*H)
Label Height:
≤190mm (Customized)
Label Length:
≤300mm
Power Source:
～220V; 50HZ
Power:
3KW
Weight:
400kg
Machine Size:
2995×1720×1400mm（L×W×H)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

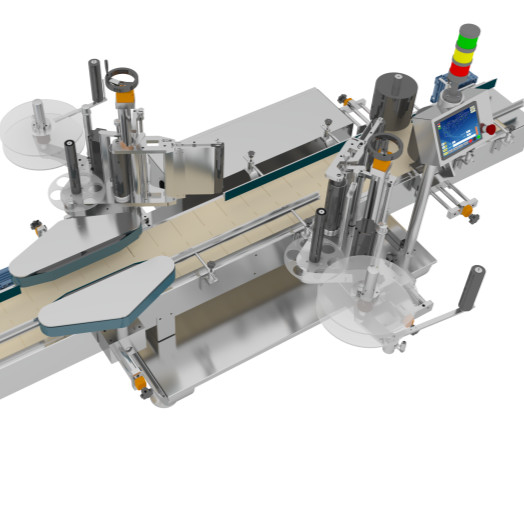

30L Drums Double Sides Sticker Labeling Machine For Round Bottle TN-200LDS 2500BPH



1. Introduction

TN-200LDS Drum Double-sides Labeling Machine is making up with the PLC, touch screen, servo motor label pressure structure. It is of multi-help functions and alarm showing function. It is suitable for the two sides self-adhesive labeling of square and flat bottles.



2. Main Technical Parameters

       1 Applied Bottle Size Min: 140×200×320mm, Max: 260×290×500mm (L*W*H)
       2 Labeling Speed 1500-2500 Bottles/hour
       3 Label Height ≤190mm (Customized)
       4 Label Length ≤300mm
       5 Labeling Precision ±2mm
       6 Power Source ～220V; 50HZ
       7 Power 3KW
       8 Weight 400kg
       9 External Dimension 2995×1720×1400mm(L×W×H)

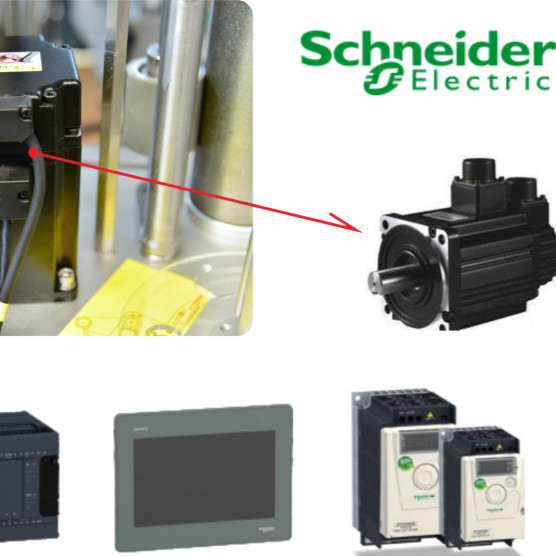

3.Allocations

Name Country Origin
PLC France Schneider
Touch Screen France Schneider
Servo System France Schneider
Inverter France Schneider
Power Switch France Schneider
Button France Schneider
