PLC Controlled Bag Packaging Machine for ≤50×2 100ml Twin Pouch

PLC Controlled Bag Packaging Machine for ≤50×2 100ml Twin Pouch

PLC Controlled Bag Packaging Machine

100ml Bag Packaging Machine

Twin Pouch Bag Packaging Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

DXD-180H

Contact Us
Request A Quote
Product Details
Machine Name:
DXD-180H Pouch Packaging Line
Machine Frame:
SS304
Applicable Pouch:
Single Pouch/Twin Pouch
Packing Volume:
Regular: ≤200ml (single Pouch), ≤50×2=100ml (twin Pouch)
Accuracy:
±1%
Power Source:
Three Phase, AC380V, 50Hz
Power:
6KW
Air Consumption:
840L/minute
Dimension:
4076×1015×247mm
Weight:
1600 Kg
Control:
PLC
Power Unit:
Srvo Motor
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

200g FFS Horizontal Bag Packaging Line with 40 Bag Per Minute



Introduction of 200g pouch packaging line

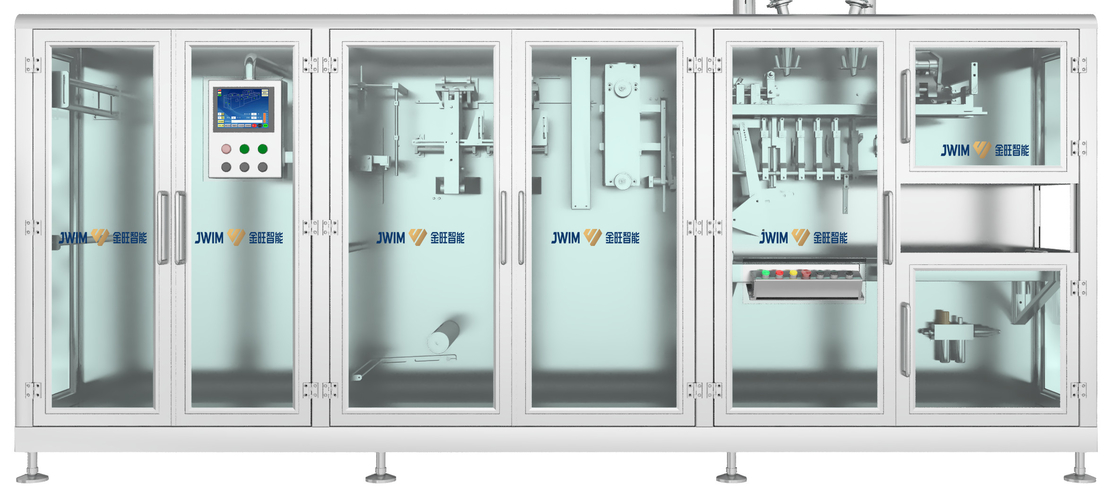

DXD-180H Automatic Horizontal Pouch Packaging line contains automatic horizontal pouch packaging machine, dust collector, powder filling device,powder feeding machine.  Under the control of the PLC, it realizes the function of automatic forming,filling, sealing. At last, the finished products are manually put into boxes or cartons. The organic glass cover can prevent the flowing of dust that is more environmental-friendly.



Parameters of 200g pouch packaging line



1 Capacity

40-60 pouch/minute (single pouch)

(40-60)×2=80-120 pouch/minute (twin pouch)

Actual capacity is affected by material and size of packing material

2 Applicable Pouch Single pouch, Twin pouch
3 Packing Size

Single Pouch: 60×80mm(minimum), 180×200mm(maximum)

Twin Pouch: (60+60)×70mm(minimum) (90+90)×210mm(maximum)

4 Packing Volume

Regular: ≤200ml (single pouch), ≤50×2=100ml (twin pouch)

Actual packing volume is determined by product density, size of packing material and filling device

5 Accuracy

±1%

Actual precision is determined by product stability and filling device.

6 Film Size Inner Diameter: Φ70-80mm Outer Diameter: ≤Φ500mm
7 Power Source Three Phase, AC380V, 50Hz/6KW
8 Dust Extraction Pipe Φ59mm
9 Air Consumption 840L/minute
10 Dimension 4076×1015×247mm(L×W×H)
11 Weight About 1600Kg

Auxiliary machine of 200g pouch packaging line


SFJ-2 Powder Elevator



Technical Parameters:

1 Power Three Phase AC380V 50HZ/1.5KW
2 Pipe diameter Φ102mm
3 Transportation volume 500-1200kg/hour (actual capacity depends on the characteristic and density of the material)
4 Hopper volume 0.12m³
5 Weight About 100kg
