DXD-180D Automatic Horizontal Pouch Packing Machine

DXD-180D Automatic Horizontal Pouch Packing Machine

DXD-180D Pouch Packing Machine

Automatic Horizontal Pouch Packing Machine

Horizontal Pouch Packing Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

DXD-180D

Contact Us
Request A Quote
Product Details
Machine Name:
DXD-180D Automatic Horizontal Pouch Packing Machine
Machine Frame:
SUS304
Applicable Pouch:
Single Pouch/Double Pouches
Packing Volume:
Regular: ≤100ml (single Pouch), ≤50×2=100ml (double Pouches)
Accuracy:
±1%
Power Source:
Three Phase, AC380V, 50Hz
Power:
6KW
Air Consumption:
840L/MIN
Dimension:
3456×1000×1510mm(L×W×H)
Weight:
1950 KG
Control:
PLC
Power Unit:
Servo Motor
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

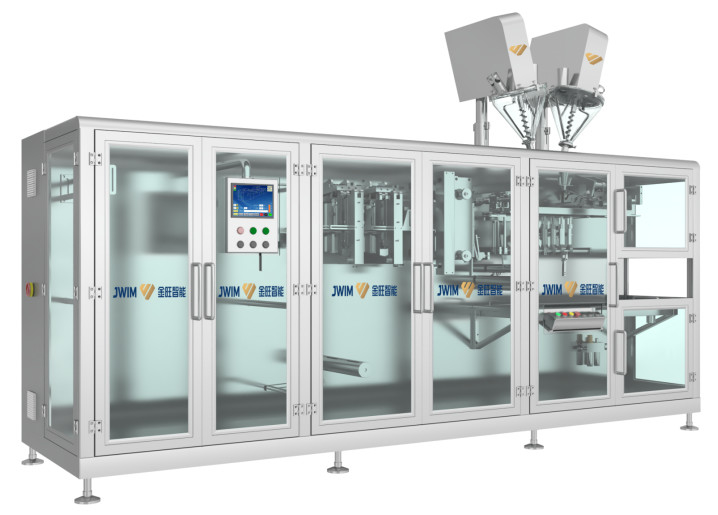

DXD-180D Automatic Horizontal Pouch Packing Machine

Introduction:

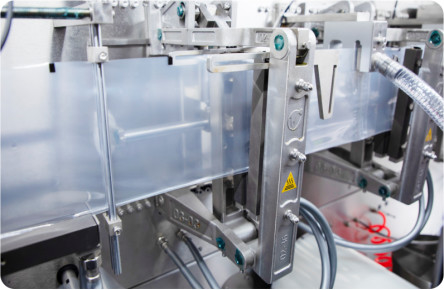

DXD-180D Automatic Horizontal Pouch Packing Machine includes motor film release, bag forming, bag bottom sealing, middle sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transfer, bag top sealing and other mechanisms. The motor drives each cam on the main shaft to complete the coordinated action of each mechanism, and the encoder on the main shaft feeds back the position signal. Under the programmable control of PLC. The machine has reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder,granule, suspending agent, emulsion, water agent and other materials on the machine. The whole machine is made of SUS304, which has good anti-corrosion effect on highly corrosive materials. Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.



Parameters of 200g pouch packaging line



1 Capacity

40-60Pouches/Min(Single pouch)

(40-60)×2=80-120Pouches/Min(Double pouches)

According to the physical properties of the raw materials and the different feeding.

2 Applicable pouches pattern Single pouch, Double pouches
3 Applicable pouches size

Single pouch: 70×100mm(Min);180×220mm(Max)

Double pouches: (70+70)×100mm(Min)

(90+90)×160mm(Max)

4 Volume

Regular :≤100ml(Single pouches)    ≤50×2=100ml(Double pouches)

*According to the physical properties of the raw materials and the different feeding devices.

5 Precision ±1% *According to the physical properties of the raw materials and the different feeding devices.
6 Roll film size Inner diameter:Φ70-80mm Outer diameter:≤Φ500mm
7 Dust removal pipe diameter Φ59mm
8 Power supply Three Phase AC380V 50Hz/6KW
9 Air consumption 840L/Min
10 External dimension 3456×1000×1510mm(L×W×H)
11 Weight About 1950Kg




Auxiliary machine of 200g pouch packaging line


SFJ-2 Powder Elevator



Technical Parameters:

1 Power Three Phase AC380V 50HZ/1.5KW
2 Pipe diameter Φ102mm
3 Transportation volume 500-1200kg/hour (actual capacity depends on the characteristic and density of the material)
4 Hopper volume 0.12m³
5 Weight About 100kg
