Place of Origin:
China
Brand Name:
JWIM
Certification:
CE，ISO
Model Number:
DGD-280BJ
DGD-280BJ Automatic Horizontal Pouch Packing Machine
DGD-280AJ Automatic Horizontal Pouch Packing Machine is our newly developed online weighing bagging machine. Under the programmable control of the PLC, the function of bag removal → bag opening → detection → filling → sealing → finished product is realized .

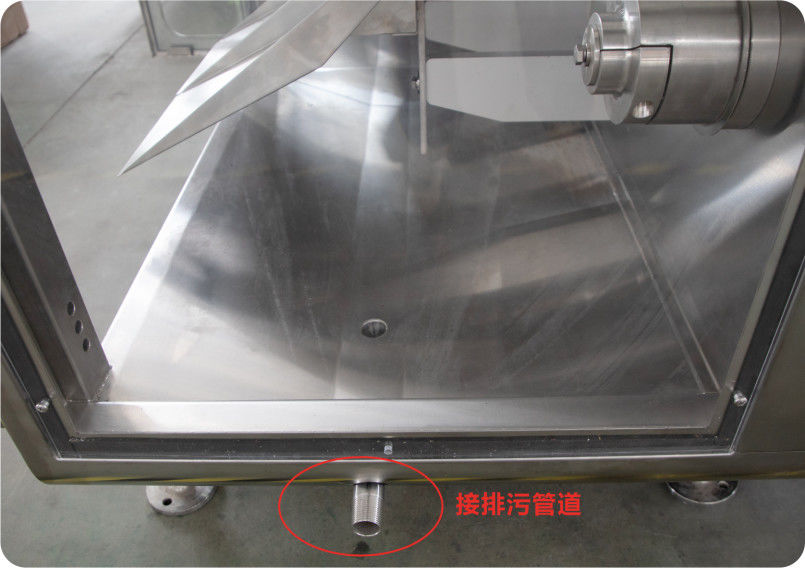

The machine has a patented appearance . It adopts SUS304 arc-shaped frame and tempered glass door cover, with a complete dust removal system, which is suitable for packaging production of various prefabricated bag products.
Parameters of 200g pouch packaging line
| 1 | Capacity |
20(Weighing)-40Pouches/Min *Actual capacity: According to product size, packaging material, material characteristics, etc. |
| 2 | Applicable Pouches Size | W120-280mm L180-380mm |
| 3 | Volume | ≤1000g *According to the physical properties of the raw materials and the different feeding devices. |
| 4 | Precision |
±1g(100g)；≤±2g(200-300g)；≤±3g(300-500g) ≤±3g(500- 1000g)(Optional weighing mode) *According to the physical properties of the raw materials and the different feeding devices |
| 5 | Air pressure | 0.6-0.8MPa 500L/MIN |
| 6 | Power supply | ～380V 50Hz/6.0KW |
| 7 | External Dimension | 3750×2380×1580mm(L×W×H) *Without powder filling device |
| 8 | Weight | About 3100Kg |
SFJ-2 Powder Elevator
Technical Parameters:
| 1 | Power | Three Phase AC380V 50HZ/1.5KW |
| 2 | Pipe diameter | Φ102mm |
| 3 | Transportation volume | 500-1200kg/hour (actual capacity depends on the characteristic and density of the material) |
| 4 | Hopper volume | 0.12m³ |
| 5 | Weight | About 100kg |
