Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g

Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g

1000g Powder Filling Packing Machine

Solid Water Soluble Fertilizer Packing Machine

Horizontal Premade Pouch Bag Packing Machine

Place of Origin:

China

Brand Name:

Jinwang

Certification:

CE, ISO

Model Number:

DGD-280AJ

Contact Us
Request A Quote
Product Details
Product Name:
Performed Bag Packing Machine
Model Number:
DGD-280AJ
Capacity:
20-40 Pouches/min
Bag Size:
W120-280mm, L180-380mm
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support
Packing Volume:
≤1000g
Voltage:
380V
Type:
Automatic Premade Pouch Packaging Machine
Application:
Chemical, Agrochemical
Weight:
About 3100kg
Key Selling Points:
Automatic,Easy To Operate
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
15-90 working days
Payment Terms
L/C, T/T
Supply Ability
1 set/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

 100g-1000g Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine

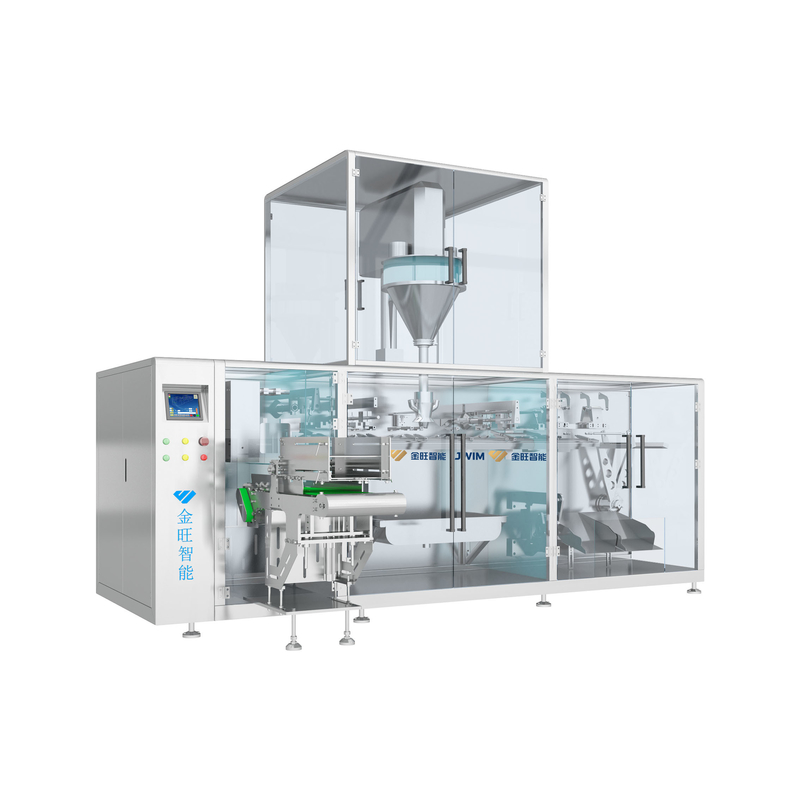

1. Product Introduction of DGD-280AJ Automatic Performed Bag Package Machine

DGD-280AJ is a fully automatic bag filling machine newly researched and manufactured by our company. It is suitable for automatic filling of materials within one kilogram, and the maximum production capacity can reach 40 bags per minute. After the material is filled for the first time, there will be a weighing part, and then it will be filled accurately, which can ensure the high precision of filling.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 0
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 1

2. Parameters of DGD-280AJ Automatic Powder Filling Bag Packing Machine



Product Name


DGD-280AJ Automatic Performed Bag Packing Machine


Applicable Pouches Size


W120-280mm, L180-380mm


Filling Volume


≤1000g
*According to the physical properties of the raw materials and the different feeding devices.


Capactiy


20(Weighing)-40Pouches/Min
*Actual capacity: According to product size, packaging material, material characteristics, etc.


Filling Precision


±1g(100g);≤±2g(200-300g);≤±3g(300-500g)
≤±3g(500- 1000g)(Optional weighing mode)
*According to the physical properties of the raw materials and the different feeding devices


Power Source


~380V, 50Hz/6.0KW


External Dimension
(Without powder filling device)


3650*2400*1400mm(L*W*H)


Weight


About 3100kg




3. Advantages of DGD-280AJ Automatic Bag Packing Powder Filling Machine

 3.1 Easy and fast cleaning

   ① Quick release structure. The filling hopper adopts an open-door design, and the feeding screw and screw sleeve can be disassembled as a whole for easy cleaning and switching.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 2

   ② Easy to maintain: upturned ironing block structure, convenient for maintenance and cleaning.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 3

 3.2 Less dust

    Effective dust isolation. The overall airtight frame, glass door cover and dust isolation cover (dust isolation is used between the bag opening station and the sealing station, so that the dust is controlled in the filling area); at the same time, a high-power dust collector can be optionally installed to reduce the amount of dust.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 4

   ② Optional Cover: the environmental protection cover on the top of the filling area is used together with the dust isolation plate in the equipment, which has better dust removal effect. European and American arc frame shape, high grade and strong visibility.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 5

   ③ Mechanical bag opening. No bag opening, no filling, no heat sealing, the bag can be reused without wasting materials and avoiding the generation of a large amount of dust.
Solid Water Soluble Fertilizer Automatic Powder Filling Horizontal Premade Pouch Bag Packing Machine 100g-1000g 6

 4. FAQ



Q: Are you a factory or trading company?

A: JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent industry. We are a high-tech enterprise integrated with R&D, manufacturing, marketing, and service. At present, it has 600 employees and more than 300 technicians.



Q: If there’s something wrong with the equipment, how will you solve the problems quickly?

A: After getting customer’s problems, our engineer will analyze them through pictures or videos. If the problems are small, we will guide the customer to solve the problem by video call or guiding pictures; if there’s something wrong with parts, we will send the spare parts to the customer immediately; if there are some problems the customer can not solve and ask our engineer to site to check, our engineer will set out after getting the flight tickets from the customer.



Q: Payment Terms?
A: T/T 30%-50% deposit, and the balance should be paid before delivery.



Q:Machine Package?
A:Each Machine will be sprayed with antirust oil, wrapped by PO film for protection, and will be packed into the standard fumigation-free wooden cases.
