Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine

Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine

Pesticides Gravity Bottle Filling Machine

Anti Corrosion Gravity Bottle Filling Machine

Microcomputer Gravity Bottle Filling Machine

Place of Origin:

Changzhou, China

Brand Name:



CE. ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
PP Frame
Product Type:
Corrosive Liquid
Filling Range:
Control System:
France Schneider
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
Contact Us
Contact Now
Product Description

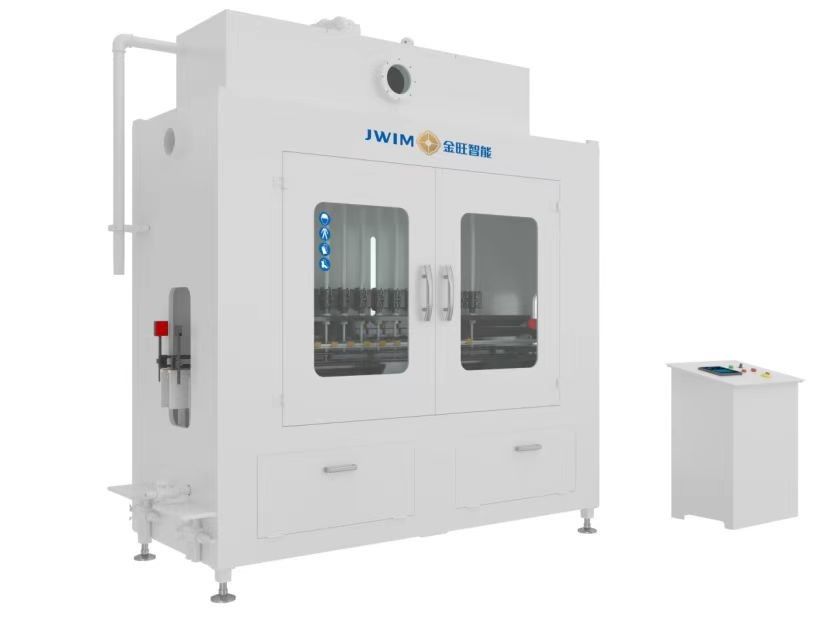

CDP-12E Microcomputer In-line Anti-corrosion Gravity Filling Machine

1. Introduction

CDP-12E Micro-computer Filling Machine is suitable for packing material with good fluidity. It uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation.

Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine 0

2. Technical Parameters

1 Filling Capacity

100ml bottle ≤5000BPH 500mlbottle ≤2800BPH

1000ml bottle ≤2000BPH

*water as medium, Varies according to product size, packaging material, material characteristics, etc.

2 Applied Bottles Round bottle:Φ40-95mm bottle height 80-230mm
3 Filling Precision


*The measurement accuracy varies according to the characteristics of the material, the filling amount and the feeding device

4 Inlet Height 2560mm
5 Inlet Diameter Φ34mm
6 Air Source 0.6-0.8MPa
7 Power Source ~380V 50Hz/0.2KW
8 External Dimension: 19955×880×2630mm(L×W×H)
9 Weight About 580Kg


3. Allocation

S.N Name Brand
1 PLC Schneider
2 Touch Screen Schneider
3 Frequency Converter Schneider
4 Counting photoelectric SICK
5 Switching power supply Schneider
6 Pressure Switch SMC
7 Cylinder FTEC
8 Solenoid Valve FTEC
9 Button Schneider
10 Alarm Light Schneider
11 Breaker Schneider

4.Working Process

Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine 1





5.1 Good corrosion performance, suitable for automatic filling of corrosive liquid with good fluidity.


5.2 The external frame, material box, feed pipe, conveying frame, filling head, liquid level detection, valve, knife retaining seat and so on are made of anti-corrosion PP material with good anti-corrosion performance.Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine 2


5.3 Liquid accumulation tank, cylinder block knife, actuator transition parts, filling head lifting parts, photoelectric bracket, threading pipe, exhaust pipe with Spray Teflon Treatment, anti-corrosion performance.


5.4 Independent electrical box design, toughened glass door cover to seal the machine body, the air exhaust system above the filling head, its interface can be connected with the factory's induced air system to discharge waste gas generated during the filling process, which is safer and environmentally friendly.


5.5 The filling head uses the air cylinder diving filling method, which can reduce the foam of the foaming material and prevent the contamination of the bottle mouth caused by the overflow of the material.Pesticides Microcomputer In Line Anti Corrosion Gravity Bottle Filling Machine 3


5.6 The Electric Control System Adopts Schneider configuration, Integrated Electric Control System, more stable and reliable, safe and green, low energy consumption.


5.7 The name of the Trachea and photo electricity mark on the equipment, which is convenient for maintenance and repair.

Multi-channel intelligent detection system

①In addition to normal working liquid level control, high and low liquid level detection and sound and light alarm devices are added to prevent abnormal liquid level.

②The air pressure of SMC in Japan is tested. When the air pressure is lower than the set value, the equipment alarms and stops automatically.



6.Support and Services:

Pesticide Filling Machine Technical Support & Services

Our technical support and services for the Pesticide Filling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Pesticide Filling Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.



7.Packing and Shipping:

Packaging and Shipping

The Pesticide Filling Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.




Q1: What is the Brand Name of the Pesticide Filling Machine?
A1: The Brand Name of the Pesticide Filling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Filling Machine?
A2: The Model Number of the Pesticide Filling Machine is CDP-12E.
Q3: Where is the Pesticide Filling Machine manufactured?
A3: The Pesticide Filling Machine is manufactured in China.
Q4: Does the Pesticide Filling Machine require special maintenance?
A4: The Pesticide Filling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Pesticide Filling Machine?
A5: The capacity of the Pesticide Filling Machine is determined by the size of the container to be filled.
