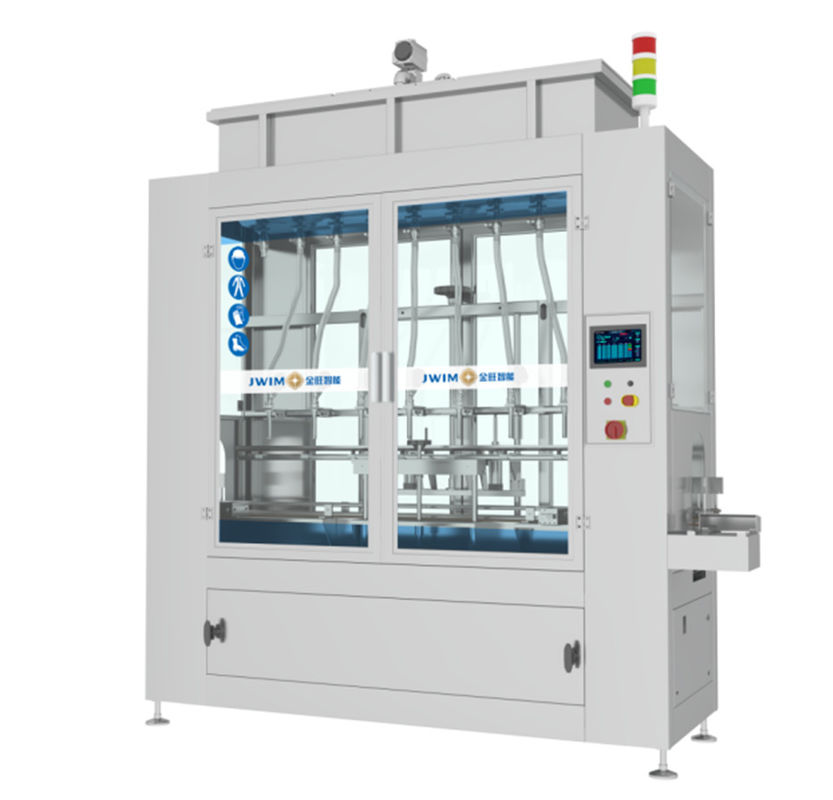

CDP30-8 Micro-Computer Filling Machine
1. Introduction
CDP30-8 Micro-computer Filling Machine is suitable for packing ES, SC material with good fluidity. It uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjust easier.
2. Technical Parameters
| 1 | Filling Capacity |
1000ml bottle ≤1200BPH 5000mlbottle ≤500BPH *water as medium, Varies according to product size, packaging material, material characteristics, etc. |
| 2 | Applied Bottles |
Round bottle:Φ40-140mm bottle height 140-340mm Flat bottle:L: 80-200mm; W: 80-140mm; W: 140-340mm
|
| 3 | Filling Precision |
±4g(1000ml);±10g(5000ml) *The measurement accuracy varies according to the characteristics of the material, the filling amount and the feeding device |
| 4 | Inlet Height | 2300mm |
| 5 | Inlet Diameter | Φ35mm |
| 6 | Filling Nozzle’s outer dimension | Φ12mm |
| 7 | Minimum Bottle Neck | ≥Φ16mm |
| 8 | Diving down Distance | 100mm |
| 9 | Air Source | 0.6-0.8MPa |
| 10 | Power Source | ～380V 50Hz/0.2KW |
| 11 | External Dimension: | 2365×823×2940mm(L×W×H) |
| 12 | Weight | About 700Kg |
3. Allocation
| S.N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screen | Schneider |
| 3 | Frequency Converter | Schneider |
| 4 | Counting photoelectric | SICK |
| 5 | Switching power supply | Schneider |
| 6 | Pressure Switch | SMC |
| 7 | Cylinder | FTEC |
| 8 | Solenoid Valve | FTEC |
| 9 | Button | Schneider |
| 10 | Alarm Light | Schneider |
| 11 | Breaker | Schneider |
4.Working Process
5.Advantage
5.1 It is widely used in automatic filling of 1-5L bottles in veterinary medicine, fine chemical, daily chemical, fertilizer, oil and other industries.
5.2 Electric scale weight feedback system, volume adjusting can be done by pressing one key in the touch screen. (Optional function)
5.3 The Electric Control System Adopts Schneider configuration, Integrated Electric Control System, more stable and reliable, safe and green, low energy consumption.
5.4 Using Qingdao ESG integral precision casting angle seat valve, the appearance is exquisite and exquisite, the long life is easy to install, the filling dose is stable, durable and reliable.
5.5 The connection part of the material box adopts quick connection, which is convenient for cleaning and maintenance.
5.6 Install a detachable filter screen on the feed pipe to prevent impurities from affecting the filling accuracy and service life of the filling valve. In addition to using normal working liquid level control, liquid level detection includes high and low liquid level detection and sound and light alarm devices to prevent abnormal liquid levels.
5.7 The filling machine does not fill when there is a shortage of bottles. At the same time, the filling machine is equipped with coordinated photoelectric devices on the back side. When the bottle is blocked due to poor bottle output, it automatically pauses the bottle output and achieves linkage function with the rear equipment.
5.8 The whole machine uses the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimension Φ120mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.
