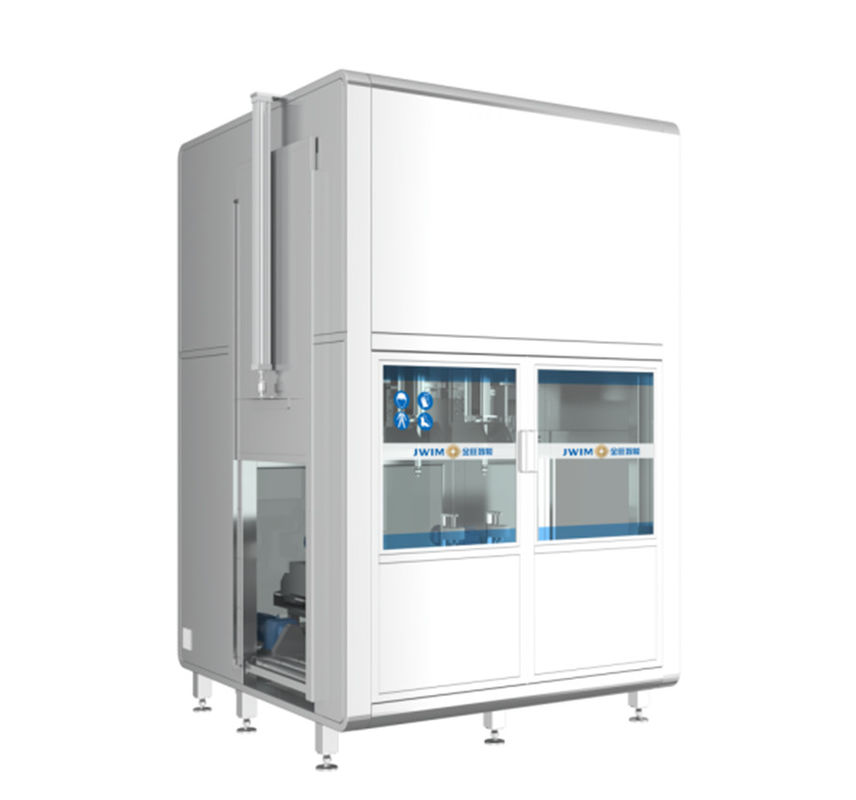

CC300-2 Fixed Quantity Weight Filling Machine
1. Introduction
CC300-2 Fixed Quantity Weight Filling Machine adopts the weighing to monitor the current filling quantity in real time and feedback to the controller, which outputs fast and slow filling control signals according to the set data to achieve fast and accurate filling of big containers. It can meet the needs of a variety of liquid automatic filling both with and without foam.
2.Filling Container Information
Small Opening/ Closed Steel Drums GB/T325.5-2015
B Type Plastic DrumsGB18191-2008
3.Technical Parameters
| 1 | Container Opening Diameter | Φ55-65mm |
| 2 | Container Diameter |
Refer to filling container information table. *Can accept customization. |
| 3 | Filling Range |
200L
|
| 4 | Division Value | 100g |
| 5 | Filling Precision |
±0.1% *①
|
| 6 | Capacity |
35-45Drums/hour(200L) *②
|
| 7 | Product Feeding Height | 2425mm |
| 8 | Min Opening Diameter | ≥Φ55mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V 50Hz/1.7KW |
| 11 | External Dimension | 1800×1760×3255mm (L×W×H) |
| 12 | Weight | About 1000Kg |
*① Marked accuracy is the accuracy of water test before the equipment leaves the factory.
The actual filling accuracy is different due to the influence of customer material viscosity, temperature, incoming pressure stability and other field conditions.
*② Marked capacity is based on testing capacity with water before the equipment leaves the factory;
The actual filling speed is due to the customer’s on-site incoming pipeline pressure and flow rate.
Material viscosity and foam factors are different; The difference in configuration requirements such as surface filling and under surface filling and bottom filling will also affect the actual production capacity.
4.Allocation
| No. | Name | Brand |
| 1 | Weighing System | METTLER TOLEDO |
| 2 | PLC | Schneider |
| 3 | HMI | Schneider |
| 4 | Inverter | Schneider |
| 5 | Counting Sensor | SICK |
| 6 | Proximity Switch | Schneider |
| 7 | Pressure Gauge | SMC |
| 8 | Cylinder | Air TAC |
| 9 | Solenoid Valve | FTEC |
| 10 | Button | Schneider |
| 11 | Alarm Light | Schneider |
| 12 | Circuit Breaker | Schneider |
5.Working process
Manual Drum Placing→Manual Cap Unloading→Auto Drum Feeding→Auto Mouth Seeking→Auto Filling→Drum Discharge→Manual Capping
6.Features
6.1 Two empty drums come into the filling machine as a unit. The drums are placed by the roller, filling nozzle automatically aims to the drum opening, filling nozzle going down, fast & slow filling, filling valve off, nozzle going up after filling, filled drum goes out and enters the empty drum.
6.2 High Precision: Weighing filling (US Mettler Toledo Weighing Sensor) to make sure the high filling precision.
6.3 The filling head is equipped with a rotating liquid cup. After filling, the liquid cup will collect the residual material on the filling head to prevent the product from leaking and contaminating the container.
6.4 Fast and slow filling valve is adopted to ensure the accuracy of filling without affecting the overall filling speed. With filling nozzle diving mechanism, it can both fill on or under liquid surface, suitable for filling products with no foam or slight foam.
6.5 Adopting a connecting rod mechanism driven by two cylinders on both sides to achieve the separation and blocking of empty barrels, ensuring more precise and firm positioning. When the filling machine is completed and the full barrel is conveyed to the next station, the drum blocking cylinder retracts and the empty barrel enters the filling machine.
6.6 Automatic sliding door: The empty bucket is manually placed on the feeding roller. When the photoelectric sensor detects the presence of a bucket, the sliding door automatically opens and transports the empty bucket to the automatic mouth finding station. (This function is optional)
6.7 The machine uses France Schneider Control system to control the operating stability. Meanwhile, the control system is with low energy consumption. Compared with various miscellaneous brands used by other manufacturers, France Schneider Control system has a high level of protection, stable reliability and safety level, service life, especially in the follow-up upgrade of the matching more advantages.
7.Support and Services:
Our technical support and services for the Pesticide Filling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Pesticide Filling Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
