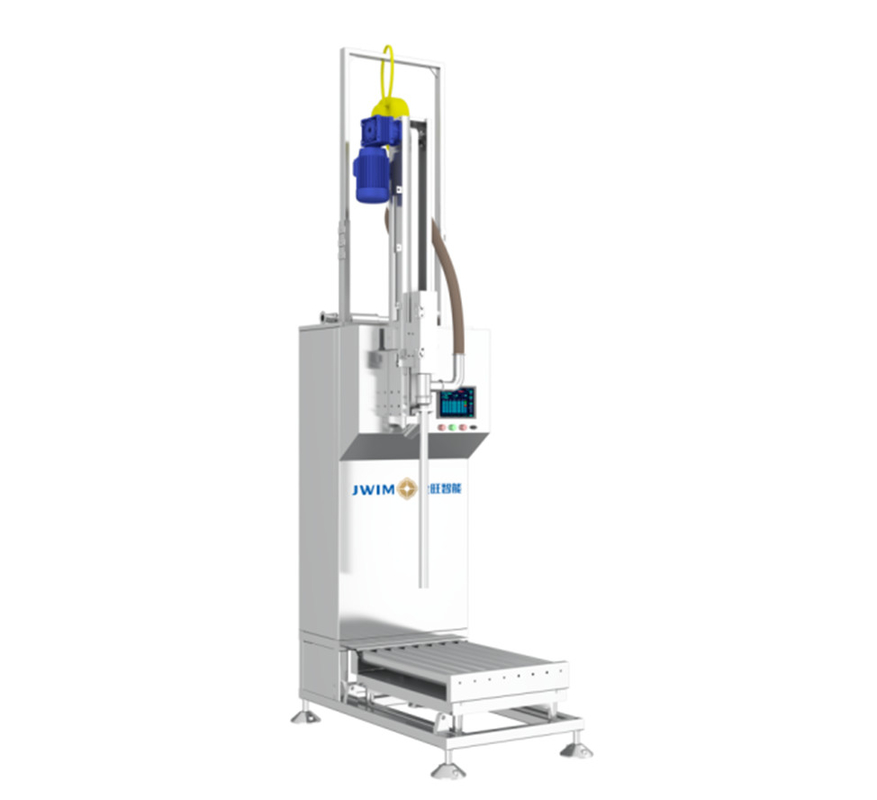

CC300C Fixed Quantity Weight Filling Machine
1. Introduction
CC300C Fixed Quantity Weight Filling Machine adopts the latest weighing and filling system, with a human-machine interface to set the filling amount, automatic weighing and filling, and adjustable filling speed. It can meet the needs of a variety of liquid automatic filling both with and without foam.
2.Filling Container Information
Small Opening/ Closed Steel Drums GB/T325.5-2015
B Type Plastic DrumsGB18191-2008
3.Technical Parameters
1 | Container Diameter | Refer to filling container information table. *Can accept customization. |
2 | Filling Range |
100-300L Drums,maximumΦ580*930mm Round drum
|
3 | Division Value | 100g |
4 | Filling Precision |
±0.1% *①
|
5 | Capacity |
30 Drums/hour(200L) *②
|
6 | Product Feeding Height | 1940mm |
7 | Product Feeding Diameter | Φ35mm |
8 | Filling Nozzle Diameter | Φ40mm |
9 | Min Opening Diameter | ≥Φ55mm |
10 | Air Pressure | 0.6-0.8MPa |
11 | Power Source | ~380V 50Hz/1KW |
12 | External Dimension | 730×1300×3400mm (L×W×H) |
13 | Weight | About 350Kg |
*① Marked accuracy is the accuracy of water test before the equipment leaves the factory.
The actual filling accuracy is different due to the influence of customer material viscosity, temperature, incoming pressure stability and other field conditions.
*② Marked capacity is based on testing capacity with water before the equipment leaves the factory.
The actual filling speed is due to the customer’s on-site incoming pipeline pressure and flow rate.
Material viscosity and foam factors are different; The difference in configuration requirements such as surface filling and under surface filling and bottom filling will also affect the actual production capacity.
4.Allocation

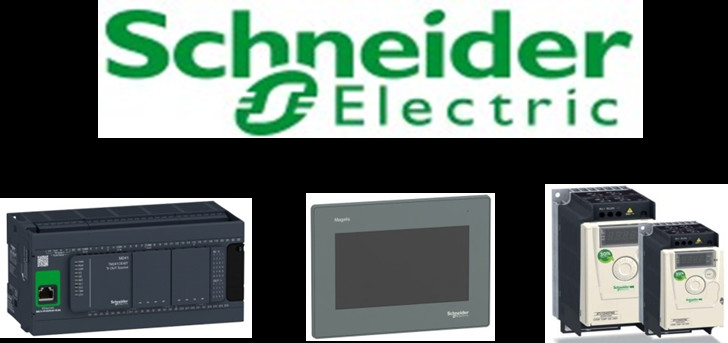

No. | Name | Brand |

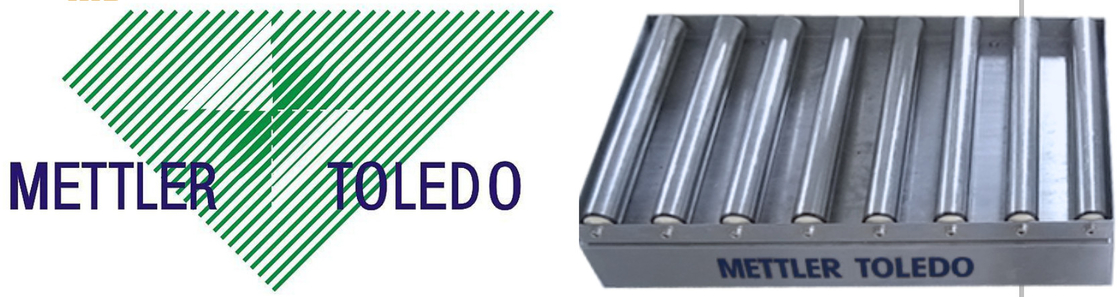

1 | Weighing System | METTLER TOLEDO |
2 | PLC | Schneider |
3 | HMI | Schneider |
4 | Inverter | Schneider |
5 | Counting Sensor | SICK |
6 | Proximity Switch | Schneider |
7 | Pressure Gauge | SMC |
8 | Cylinder | Air TAC |
9 | Solenoid Valve | FTEC |
10 | Button | Schneider |
11 | Alarm Light | Schneider |
12 | Circuit Breaker | Schneider |
5.Working process
Manual Drum Placing——Manual Alignment of Drum Mouth——Filling (Filling Submergence, Ascent, Filling Valve Closed)—— Drum Discharge
6.Features
6.1 Small footprint, compact structure, simple to use, only one person to operate, save labor.
6.2 High Precision: Weighing filling (US Mettler Toledo Weighing Sensor) to make sure the high filling precision.

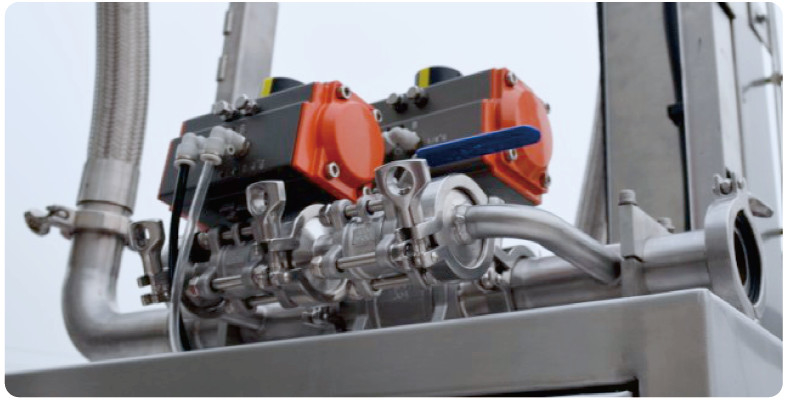

6.3 Fast and slow filling valve is adopted to ensure the accuracy of filling without affecting the overall filling speed. With filling nozzle diving mechanism, it can both fill on or under liquid surface, suitable for filling products with no foam or slight foam.

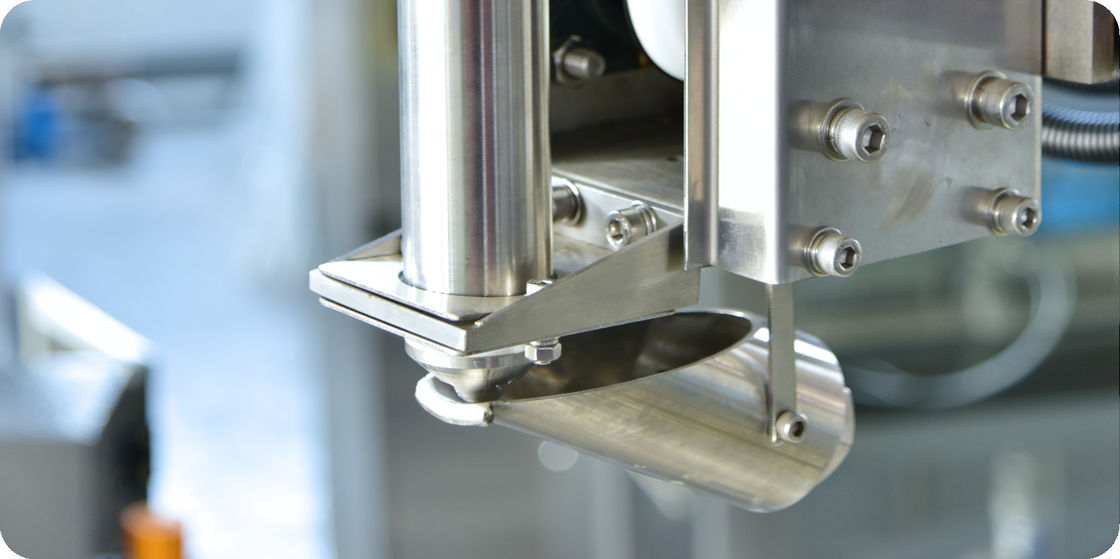

6.4 The filling head is equipped with a rotating liquid cup. After filling, the liquid cup will collect the residual material on the filling head to prevent the product from leaking and contaminating the container.
6.5 The machine uses France Schneider Control system to control the operating stability. Meanwhile, the control system is with low energy consumption. Compared with various miscellaneous brands used by other manufacturers, France Schneider Control system has a high level of protection, stable reliability and safety level, service life, especially in the follow-up upgrade of the matching more advantages.
