High Speed 10000BPH TN-200DH Rotary Labeling Machine 220V 6.5KW

High Speed 10000BPH TN-200DH Rotary Labeling Machine 220V 6.5KW

10000BPH Rotary Labeling Machine

6.5KW Rotary Labeling Machine

220V Rotary Labeling Machine

Place of Origin:

Made in China

Brand Name:

Jinwang

Certification:

CE, ISO9001

Model Number:

TN-200DH

Contact Us
Request A Quote
Product Details
Capacity:
≤10000 BPH
Label Size:
H:20-70mm L:90-180mm
Labeling Accuracy:
±1mm
Weight:
Around 800Kg
External Dimension:
2880×1790×2385mm(L×W×H)
Applicable Bottle Diameter:
Φ35-60mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Case Packing
Delivery Time
15-90 Working Days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

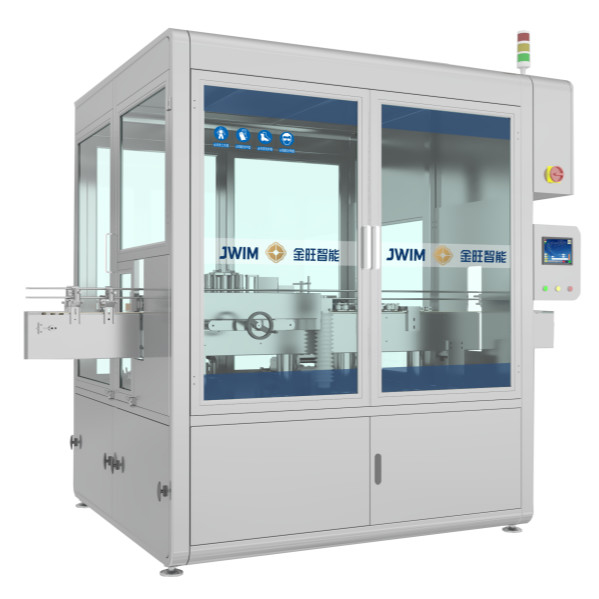

10000BPH TN-200DH Rotary High-speed Labeling Machine 220V 6.5KW

1. Introduction of Labeler

The TN-200DH rotary high-speed labeling machine is an improved type of self-adhesive labeling machine, which integrates bottle entry, bottle separation, labeling, and bottle exit. The whole machine is a rotary mechanism, with precise positioning, fast labeling speed, high labeling accuracy, and smooth operation. Adopting programmable control, touch based human-machine interface, servo driven labeling and paper collection, the whole machine is easy to operate and intuitive, and has fault display function.

Suitable for automatic labeling of self-adhesive labels on various circular containers.

2. Technical parameters of Intelligent Self-adhesive Labeling Machine


1

Labeling Speed

≤10000 BPH

*The actual production capacity varies according to the product size and packaging material.

2 Applicable Bottle diameter Φ30-60mm
3 Label Size Height: 20-70mm Length:90-180mm
4 Accuracy ±1mm *The labeling accuracy varies according to different materials and label materials
5 Power Supply ~220V 50Hz/6.5KW
6 Machine Size

2880×1790×2385mm(L×W×H)

7 Machine Weight

About 800Kg





3. Electrical Configurations of Labeling Machine



S/N Name Brand
1 PLC Schneider
2 Applicable Bottle Diameter Schneider
3 Label Size Schneider
4 Accuracy Schneider
5 Label Roll Sick
6 Power Supply Schneider









4. Advantages of TN-200DH Labeling Machine



High Precision



The servo motor drives the labeling mechanism to ensure the high precision of labeling.



Stability



The label feeder is constructed of driven roller, which adopts wear-resistant rubber. Its excellent friction ensures the long-term stability of the label sending function.



Universality



The center sleeve seat of the label disc is fixed by two layers,and made of soft polyurethane.
High productivity Bottle dividing and shaping mechanism + dislocation labeling to improve labeling stability and facilitate adjustment

High Speed 10000BPH TN-200DH Rotary Labeling Machine 220V 6.5KW 0

High Speed 10000BPH TN-200DH Rotary Labeling Machine 220V 6.5KW 1



5. Machine Dimension

High Speed 10000BPH TN-200DH Rotary Labeling Machine 220V 6.5KW 2
