CZ-4B Scale Fixed-quantity Filling Machine
1. Introduction
CZ-4B Automatic Weight Filling Machine is making up of the linear scale (with roller), chain-driven drum in and out structure, fast and slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials (with or without foam).
2. Technical Parameters
| 1 | Capacity |
5L: 350 BPH, 20L: 240BPH Capacity differs from product, drum and product characteristic |
| 2 | Filling Precision |
5L: ±8g; 10L: ±10g; 20L: ±20g Precision differs from product, drum and product characteristic |
| 3 | Applicable Bottle Size | Min: 200*140*320mm Max: 290*260*500mm (L*W*H) |
| 4 | Filling Volume | 5-30L *Filling range differs from the product characteristic and product feeding. |
| 5 | Product Feeding Diameter | DN40 |
| 6 | Product Feeding Height | 2980mm |
| 7 | Air Pressure | 0.6-0.8MPa |
| 8 | Power Source | ～380V 50Hz/0.9KW |
| 9 | External Dimension | 2138×1363×3140mm(L×W×H) |
| 10 | Weight | About 1050Kg |
3. Allocation
| S.N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screen | Schneider |
| 3 | Frequency Converter | Schneider |
| 4 | Counting photoelectric | SICK |
| 5 | Switching power supply | Schneider |
| 6 | Pressure Switch | SMC |
| 7 | Cylinder | FTEC |
| 8 | Solenoid Valve | FTEC |
| 9 | Button | Schneider |
| 10 | Alarm Light | Schneider |
| 11 | Breaker | Schneider |

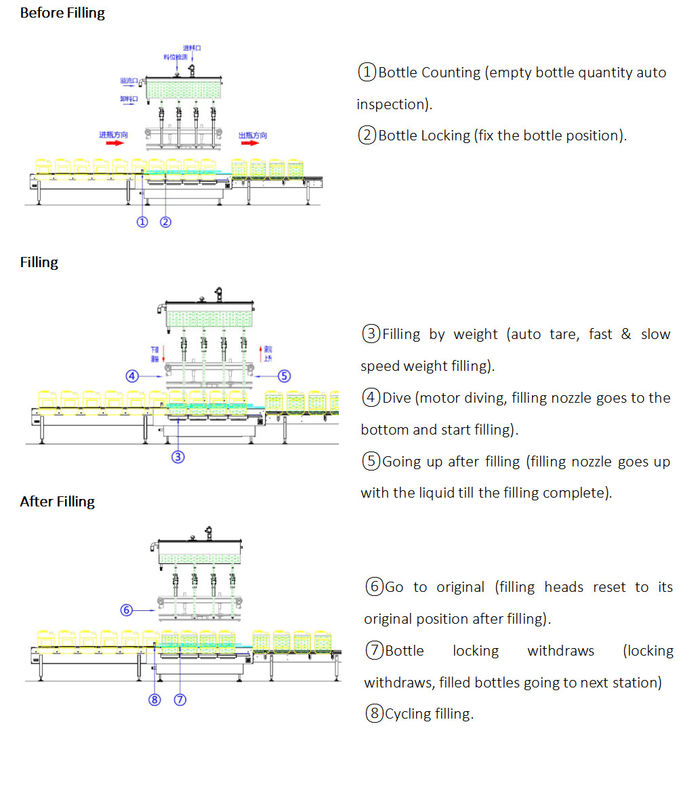

4.Working Process
5.Advantage
5.1 It is widely used in automatic filling of 5-30L drums in veterinary medicine, fine chemical, daily chemical, fertilizer, oil and other industries.
5.2 High Precision: Adopts weight filling system (American METTLER TOLEDO weighing sensor and control meter) ensures that the high filling precision. Unique ball-to-go drums conveying method ensures smooth drum-out conveying after filling.
5.3 The machine uses fast & slow filling valve, diving filling heads do under level filling which can avoid the foaming problem when filling.
5.4 The control system uses France Schneider, the integrated control system is more stable, safe, green and low energy consumption.
5.5 Liquid tray that controlled by individual cylinders is installed under the filling nozzles. The external placed PTFE plugs can make sure the drops will not leak out of the bottle after the filling head is closed.
5.6 The whole machine uses the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment and easy for cleaning. The sealing material of scale and product contact parts is fluorine rubber.
5.7 The machine has a material tank, equipped with level detection system, automatic coordination of feeding.
