Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder

Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder

Rotary Bottle Feeder

Rotary Bottle Unscrambler Machine

XJ-1000 Bottle Unscrambler Machine

Place of Origin:

made in China

Brand Name:

jinwang

Certification:

CE,CO,ISO

Model Number:

XJ-1000

Contact Us
Request A Quote
Product Details
Machine Name:
XJ-1000 Bottle Feeder
Unscrambling Speed:
≤6000 Bottles Per Hour
Air Supply Requirement:
Clean Dry Compressed Air Supply
Power Supply:
200V 50Hz 0.377KW
Machine Size3540×1800×1800mm(L×W×H):
Φ1000×1230mm(Φ×H)
Weight:
200KG
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

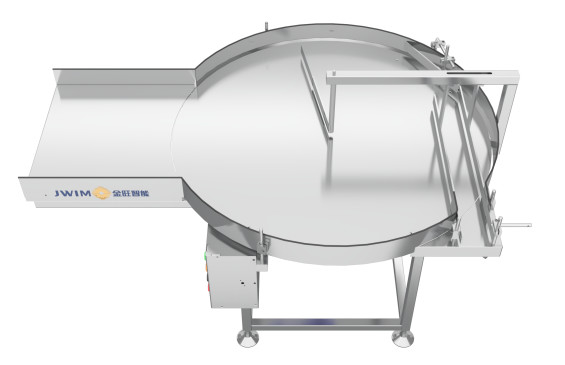

XJ-1000 Rorary Bottle Feeder

1. Introduction

Jinwang Intelligent offers powered turntables that load, unload, and transfer bottles to and from production lines. All turntables are available individually, as an addition to an existing line, or as part of a complete system. XJ-1000 Bottle Feeder is constructed from the highest quality sanitary stainless sus304 materials with variable speed digital AC drives, reversible rotation, and are height adjustable. Turntable tops are available as gauge polished sanitary stainless steel or polyethylene and each is laser cut to create a perfect circle.



2. Technical Parameters

1 Speed



≤6000 bottles per hour

*Actual production capacity varies according to product size, packaging material, etc.



2 Applicable Package round bottle:Φ40-95mm Bottle Height 80-240mm
3 Motor Power ~220V 50Hz/0.37KW
4 External Dimension Φ1000×1230mm(Φ×H)
5 Weight ~200Kg



3. Allocations



No.





Opponent





Brand





Remarks



1

Frequency Motor

Schneider

Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder 0
2

Voltage Apparatus

Schneider

Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder 1 Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder 2Robotic Bottle Unscrambler Machine XJ-1000 Rotary Bottle Feeder 3
