Robotic Bottle Unscrambler Machine LP-300H Quick Bottle Size Switch 50-1000ml

Robotic Bottle Unscrambler Machine LP-300H Quick Bottle Size Switch 50-1000ml

50-1000ml Bottle Unscrambler Machine

LP-300H Bottle Unscrambler Machine

1000ml Bottle Unscrambler Machine

Place of Origin:

made in China

Brand Name:

jinwang

Certification:

CE,CO,ISO

Model Number:

LP-300H

Contact Us
Request A Quote
Product Details
Machine Name:
LP-300H Automatic Bottle Unscrambler
Unscrambling Speed:
100ml:18000BPH
Air Pressure:
0.5-0.7MPa
Air Supply Requirement:
Clean Dry Compressed Air Supply
Power Supply:
200V 50Hz 3KW
Applicable Bottle Size:
Φ40-95mm Height 80-240mm
External Dimension(without Bottle Elevator):
3450×2245×2030mm(L×W×H)
Weight:
1000KG
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

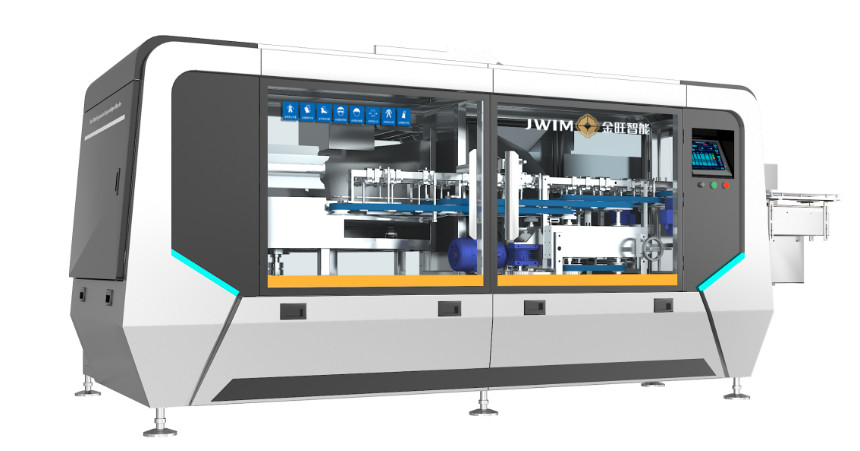

LP-300H Automatic Bottle Unscrambler

1. Introduction

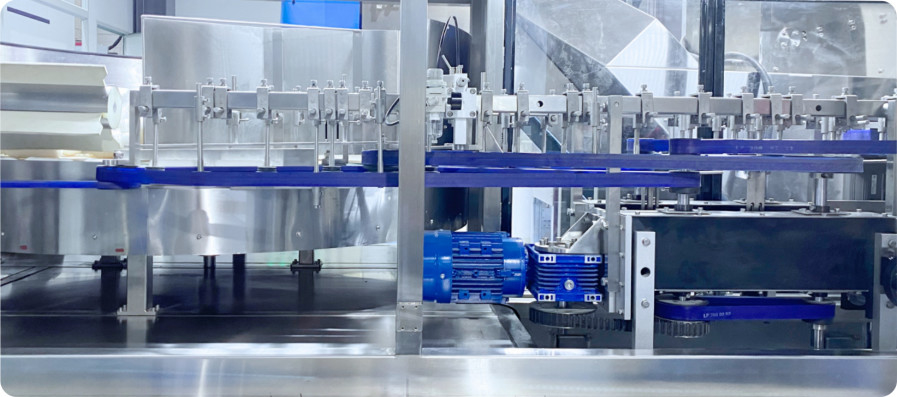

The LP-300H automatic bottle unscrambler consists of a bottle loading machine, a bottle unscrambler turntable, a bottle reject component, a bottle unscrambler component, an inverted bottle reject component and an electrical box. A large number of disordered bottles are put into the bottle unscrambler turntable by the bottle loading machine, and are transferred to the unscrambler part through the conveyor belt, so that the bottles can be conveyed upright to the user's conveyor belt.

The turntable of this model is enlarged, the unscramble mechanism is lengthened, and the bottle opening is wider, and the production capacity is faster. High-speed rail shape, high-grade, strong visitability, enhance the company's brand influence!



2. Parameters of 50-1000ml automatic bottle unscrambler



1 Unscrambling Speed

100ml:≥18000bottles per hour

*speed will be affected by the bottle size, bottle material

2 Bottle Diameter Round bottles:Φ40-95mm Bottle Height 80-240mm
3 Air Source 0.5-0.7MPa
4 Power Source ~220V 50Hz/3KW
5 External Dimension 3450×2245×2030mm(L×W×H)
6 Weight ~1000Kg


Robotic Bottle Unscrambler Machine LP-300H Quick Bottle Size Switch 50-1000ml 0Robotic Bottle Unscrambler Machine LP-300H Quick Bottle Size Switch 50-1000ml 1

Robotic Bottle Unscrambler Machine LP-300H Quick Bottle Size Switch 50-1000ml 2
3. Features of 50-1000ml automatic bottle unscrambler

3.1. Molds do not needed when you change different size. What you need to do is to change the quantity of belts in rotary plate and to adjust the distance between different unscrambling parts. You can adjust the distance between belts by adjusting crank. Hand cranking and scaling are convenient.



3.2. Opening overturning+Opening blowing to make sure there is no impurity inside.

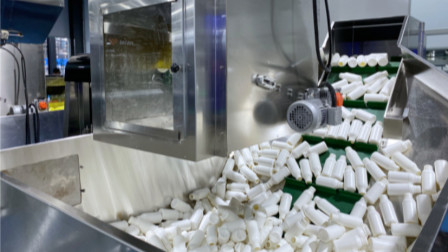

3.3. Bottle loading (bottle enters the bottle unscrambler turntable through the bottle loading machine)

a. Bottle delivery (the round turntable sends the bottles to the unscramble station, and the belt in the turntable can be used for different bottle diameters by increasing or decreasing the belt in the turntable)

b. Kick the bottle (reject the overlapping bottles to facilitate bottle sorting)

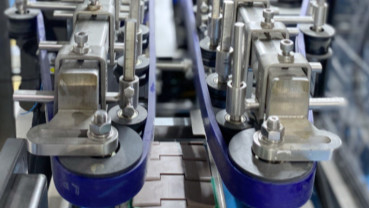

c. Hook bottle (use the bottle hook device to stand the bottle hook upright with the bottle mouth facing forward)

d. Stand up the bottle (use the bottle stand up mechanism to erect the bottle with the bottom of the bottle facing forward)

e. Bottle Feeding out(the upright bottle is transported to the filling station through the conveyor belt)

f. Rejection of inverted bottles (detection of inverted bottles through photoelectric, and automatic rejection of inverted bottles into the upper bottle hopper by the mechanical inverting device)



4. Advanced Features

4.1. High appearance: The whole machine adopts high-speed rail appearance, beautiful and generous, strong sense of science and technology, and high-grade.



4.2. The structure is compact, the operation is simple and with good compatiability., suits for 50-1000ml bottle.



4.3. The bottle mechanism of the whole mechanism is lengthened and the line speed is increased to ensure that the maximum speed can reach 18,000 bottles/hour (100ml as an example).



4.4.When changing different bottle size, you do not need to change anything, you only need to change the belt in the bottle hopper and adjust the space of the unscrambling structure. And it is applied to 50-1000ml bottle.



4.5.The bottle loading machine adopts a new mechanism, and the bottle opening is widened to ensure the efficiency of bottle loading. The turntable is enlarged to make full use of the enlarged bottle-dropping slot space to ensure the bottle-feeding speed.



4.6. Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.



4.7. Automatic bottle loading function: only need to pour the bottle into the bottle filling machine, the turntable is equipped with detection photoelectric, realize the automatic filling of the bottle when the bottle is insufficient, and stop the bottle feeding when the bottle is enough. The bottle feeding machine automatically alarms without any manual labor intervention.



4.8. Equipped with inverted bottle removal device, when bottle fall down, the photoelectric sensor will detects the inverted bottles, it will kicks the bottle back to the bottle collection bucket, without human intervention.
