Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
DG-4000C

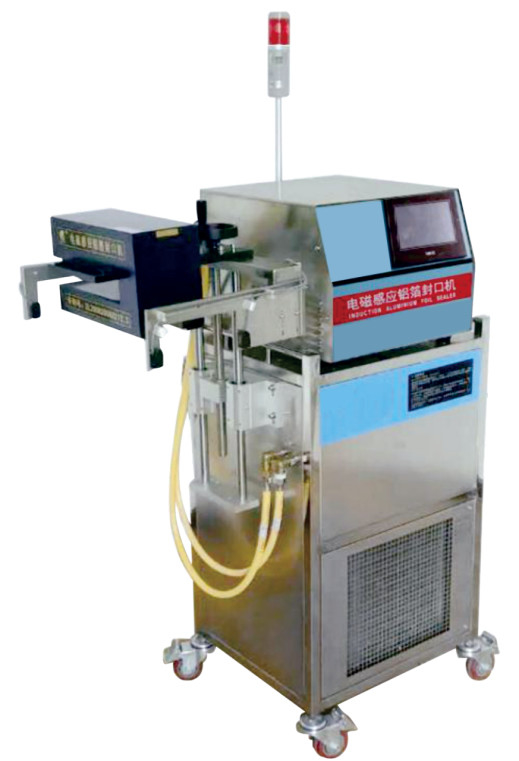

DG-4000C Induction Sealing Machine 100-200BPM
1. Introduction
Electromagnetic induction aluminum foil sealing machine is an ideal sealing equipment that uses the principle of electromagnetic induction to instantly generate high heat to the aluminum foil in the cap, in order to fuse the aluminum foil on the bottle mouth to achieve the purpose of sealing.
It adopts the latest induction heating technology, integrates the industry-leading high-frequency switching power supply technology, PLL technology and digital control technology. It has excellent performance in miniaturization, high stability, high reliability and high sealing efficiency.
On the basis of the previous generation, the bottle blocking detection alarm function and touch screen adjustment function are added.
2. Technical Parameters
|
1
|
Sealing Speed
|
100-200 bottles/min
|
| 2 | Sealing Diameter |
W40: Tunnel Width 40mm, Φ15-55mm W55: Tunnel Width 55mm, Φ30-70mm W100: Flat Bottom, Φ60-140mm (The above four sealing heads are optional) * non-standard can be customized according to customer requirements |
|
3
|
Power Supply |
～220V 50Hz/Manual setting 4KW |
| 4 |
Input Current
|
Static state≤8A Dynamic＜18A |
| 5 |
External Dimension
|
410×460×320mm (L×W×H) |
| 6 |
Cooling Water Flow
|
1.5-7L/MIN Pump control |
| 7 |
Cooling Water
|
Pure Water (distilled water) 1-55℃ |
| 8 |
Weight
|
78Kg |
3. Features
3.1. Equipped with intelligent touch screen: one button setting, convenient, fast and clear to see.
3.2. Equipped with rotary sealing device, the sealing is heated evenly, which greatly improves the sealing effect. (Optional function)
3.3. The machine cover is made of 304 stainless steel, which is reasonably designed and meets the requirements of GMP.
3.4. Patented sensing head with strong performance.
3.5. It has various sealing functions, especially for special-shaped containers sealing.
3.6. Recycle water cooling to make effective sealing.
3.7. Built in regulated power supply system, constant power output, not affected by power grid.
3.8. It has intelligent protection functions such as overvoltage, overcurrent and overheating.
3.9. Adjustable power supply, starting without preheating, simple operation.
3.10. It has self-diagnosis function, the information will feedback to operator.
