Place of Origin:
China
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
SGZG-1

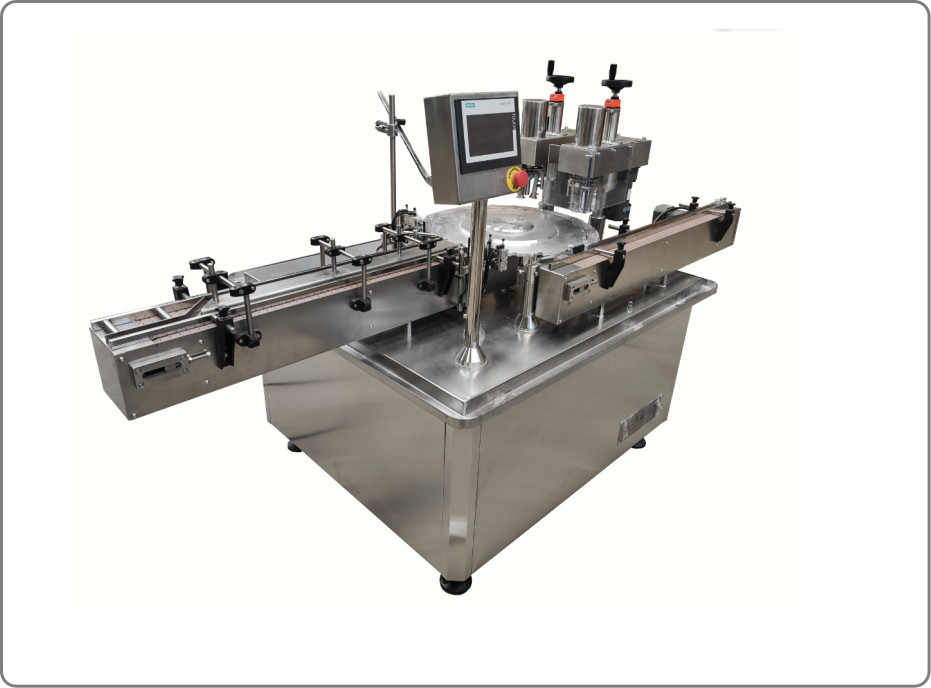

SGZG-1 Capping Machine
1. Introduction
The machine is mainly applicable to the upper cap and screw (TIE) cap of olive oil bottles of different materials and specifications. Suitable for screw cap, anti-theft cap, child proof cap, pressure cap, etc. Equipped with constant torque rotary (rolling) head, the pressure can be easily adjusted. The structure is compact and reasonable, and can be easily linked with other equipment.
2. Technical Parameters
| 1 | Capacity | 1800-2100BPH, (* the actual production capacity varies according to the product size, packaging material and material characteristics.) |
| 2 |
Applicable Bottle Type |
Round :Diameter Φ60-80mm,bottle height 300-320mm |
| 3 | Capping Rate | ≥99% |
| 4 | Power | ～220V 50Hz/2.5KW |
| 5 | External Dimension | 2500×2000×1700mm(L×W×H) |
| 6 | Weight | About 700Kg |
3. Equipment Advantages
3.1. This machine is intuitive and convenient to operate.
3.2. Variable frequency speed regulation, adjustable production speed and automatic counting.
3.3. The machine has the advantages of simple structure, stable performance and convenient maintenance.
4. Electrical Configuration
| S/N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch screen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Counting sensor | SICK |
| 5 | Proximity switch | Schneider |
| 6 | Cylinder | FTEC |
FAQ
Frequently asked questions.
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Agrochemical,fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication.
