Place of Origin:
China
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
Pressing and Capping Machine

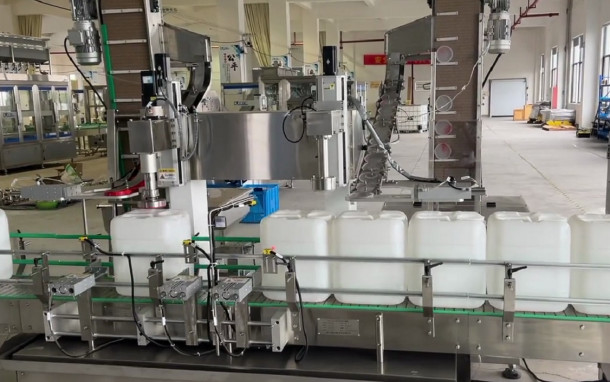

Pressing and Capping Machine
1. Introduction
This machine integrates bottle feeding, inner plug pressing, outer cap screwing, and bottle output, mainly including positioning of the stopper knife, servo control of the lifting and lowering of the capping head, and capping.
There is no damage to the bottle cap during the capping process, the capping efficiency is high, and it is equipped with an automatic shutdown function when the bottle is blocked.The whole machine adopts advanced control technology, the organic combination of touch screen, PLC and capping motor, fast product upgrade and adjustment, only need to input parameters such as capping time and host speed on the touch screen to respond quickly, and large The production efficiency is improved, and the man-machine combination is more friendly.
2. Technical Parameters
1 | Number of Pressing Heads | 1 Nozzle |
2 | Number of Capping Heads | 1 Nozzle |
3 | Cap Diameter | ≤φ100mm(Can be custom-made) |
4 | Capacity |
≥400 drums/hour *Actual production capacity varies according to product size, packaging material, material characteristics, etc. |
5 | Total Power | About 2KW |
6 | Power Supply | 220V 50Hz |
7 | Host Size | 5000×2670×1800mm(L×W×H) |
8 | Dimensions | 2000×1000×1800mm(L×W×H) |
3. Equipment Advantages
3.1. This machine is intuitive and convenient to operate.
3.2. Variable frequency speed regulation, adjustable production speed and automatic counting.
3.3. The machine has the advantages of simple structure, stable performance and convenient maintenance.
4. Electrical Configuration
S/N | Name | Brand |
1 | PLC | Schneider |
2 | Touch screen | Schneider |
3 | Frequency converter | Schneider |
4 | Counting sensor | SICK |
5 | Proximity switch | Schneider |
6 | Cylinder | FTEC |
4. Advantages
4.1. The pressing lift is a servo motor, and the specification switching only needs to select the corresponding parameters on the touch screen.
The capping claw is designed with a suction cup, which can firmly suck the inner plug. When the capping is performed, the suction cup is placed on the cover, and then the surrounding metal part is used to cover the inner plug without causing damage to the inner plug.
4.2. The capping is capped by a manipulator, and the capping head is equipped with a servo constant torque system to ensure the capping accuracy and avoid damage to the cap.
The torque setting only needs to set the desired torque on the touch screen, and the servo motor will automatically adjust according to the input parameters. The lifting part of the capping head is also controlled by a servo motor, which is fast in action and accurate in positioning. When the capping is lowered, the drum or cap will not be damaged due to positioning errors, which will affect production.
FAQ
Frequently asked questions.
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Agrochemical,fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication.
