Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
GPK-40

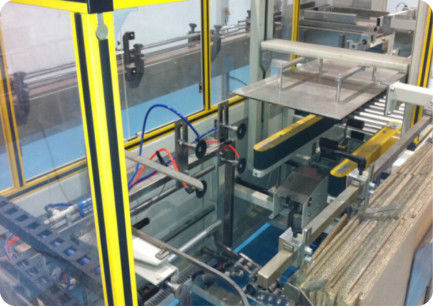

GPK-40 Automatic Carton Erector
1. Introduction
Carton erector is the equipment that automatically completes carton unpacking, forming, folding and adhesive tape pasting at the bottom. It is controlled by PLC and touch screen that is easy to operate. Carton erector is an essential equipment for automatic production.
2. Technical Parameters
| 1 |
Applicable Carton
|
L: 200-450mm W: 150-400mm H: 150-400mm |
| 2 |
Table Height
|
Min: 600mm Max: 720mm |
| 3 |
Speed
|
8-10 cartons/min |
| 4 |
Power Source
|
～220V 50Hz/0.4KW |
| 5 |
Air Supply
|
0.6-0.8MPa |
| 6 |
Tape Size
|
W48-60-75mm×L1000 |
| 7 |
Carton Storage
|
50-80 pcs |
| 8 |
External Dimension
|
2000×2070×1400mm (L×W×H) |
| 9 |
Weight
|
Around 400Kg |
3. Features:
3.1. Simple structure, intellectual coordinating function without human interval.
3.2. Vertical carton storing, feeding at any time without stop, this will save time.
3.3. Stable operation, wide application range and high packing qualification rate.
3.4. The machine is with high automation: auto carton erecting, folding and bottom sealing. It uses PLC+Touch Screen control; it is a necessary part in the filling line.
3.5. The parts are precise designed, no vibration during operation, stable running.
