6-8 Cartons/min GPK-50 Automatic Carton Erector 220V 0.4KW

6-8 Cartons/min GPK-50 Automatic Carton Erector 220V 0.4KW

GPK-50 Automatic Carton Erector

220V Automatic Carton Erector

Automatic Carton Erector 0.4KW

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

GPK-40

Contact Us
Request A Quote
Product Details
Name:
GPK-50 Automatic Carton Erector
The Material Of Frame:
SS304
Capacity:
6-8 Cartons/min
Applicable Carton:
L: 300-650mm W: 200-500mm H: 200-500mm
Table Height:
Min: 600mm Max: 720mm
Carton Storage:
50-80 Pcs
Air Supply:
0.6-0.8MPa
Tape Size:
W48-60-75mm×L1000
Power Source:
~220V 50Hz/0.4KW
External Dimension:
2300×2100×1500mm (L×W×H)
Weight:
450Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

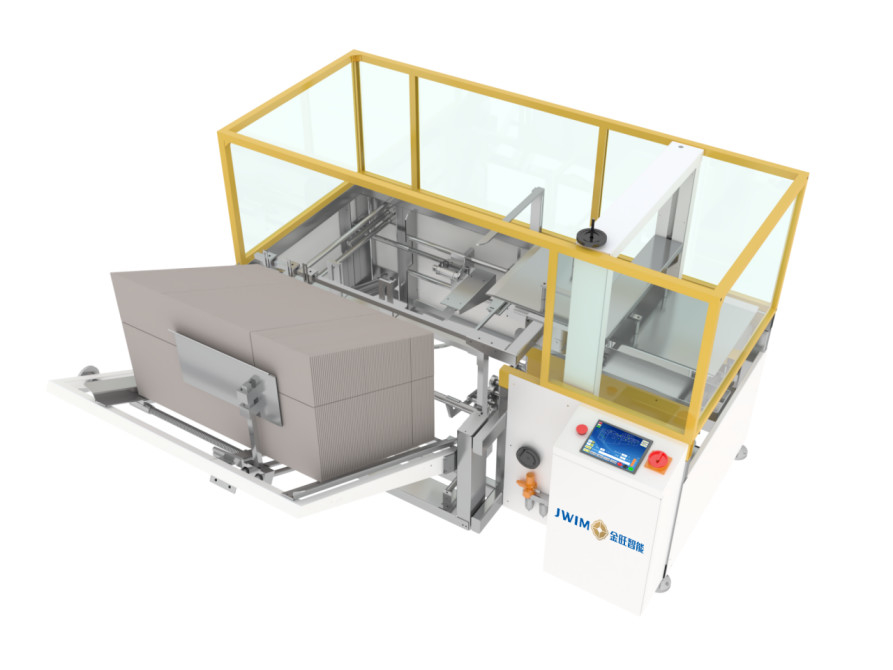

GPK-50 Automatic Carton Erector

1. Introduction

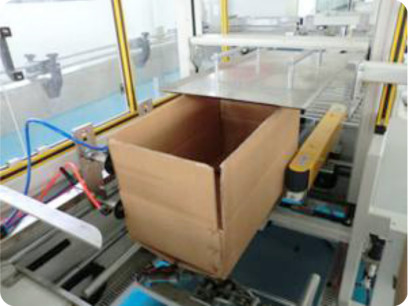

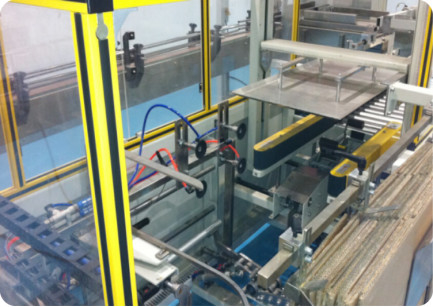

Carton erector is the equipment that automatically completes carton unpacking, forming, folding and adhesive tape pasting at the bottom. It is controlled by PLC and touch screen that is easy to operate. Carton erector is an essential equipment for automatic production.





2. Technical Parameters

1



Applicable Carton



L: 300-650mm W: 200-500mm H: 200-500mm
2



Table Height



Min: 600mm Max: 720mm
3



Speed



6-8 cartons/min
4



Power Source



~220V 50Hz/0.4KW
5



Air Supply



0.6-0.8MPa
6



Tape Size



W48-60-75mm×L1000
7



Carton Storage



50-80 pcs
8



External Dimension



2300×2100×1500mm (L×W×H)
9



Weight



Around 450Kg


3. Features:

3.1. Simple structure, intellectual coordinating function without human interval.

3.2. Vertical carton storing, feeding at any time without stop, this will save time.

3.3. Stable operation, wide application range and high packing qualification rate.

3.4. The machine is with high automation: auto carton erecting, folding and bottom sealing. It uses PLC+Touch Screen control; it is a necessary part in the filling line.

3.5. The parts are precise designed, no vibration during operation, stable running.
