3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

380V IRB4600 Robot Packing Machine

50Hz IRB4600 Robot Packing Machine

6 Cases/Min Robot Packing Machine

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

IRB4600

Contact Us
Request A Quote
Product Details
Name:
IRB4600 Robot Packing Machine
Capacity:
≤3-6 Cases/Min
Applicable Carton Size:
L300-500mm W200-400mm H100-300mm
Applicable Bottle Size:
Φ40-90mm H80-230mm
Pass Rate:
≤99.9%
Air Pressure:
0.6-0.8MPa
Power Supply:
~380V 50Hz/4KW
Lift Limit:
3300mm From The Highest Lifting Point To The Ground
External Dimension:
2240×2250×2780mm(L×W×H)
Weight:
1500Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

1. Introduction

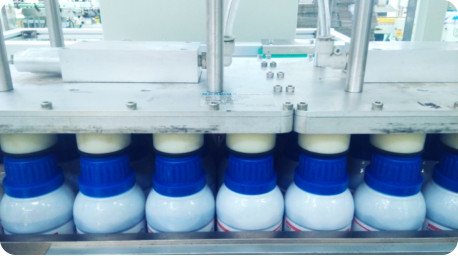

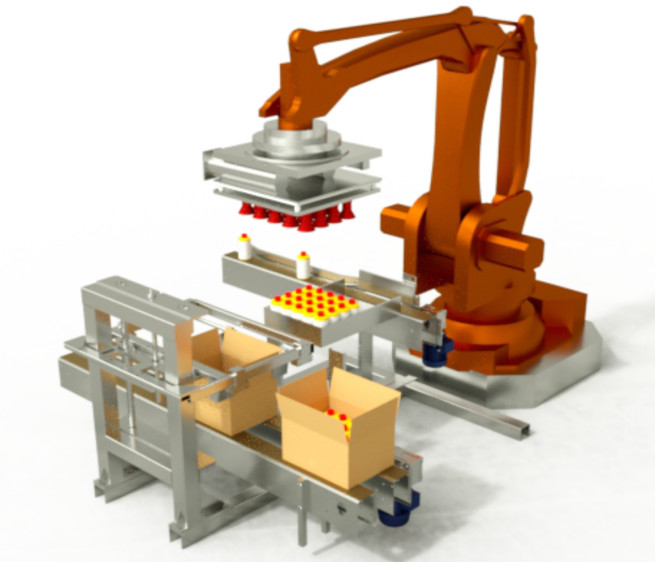

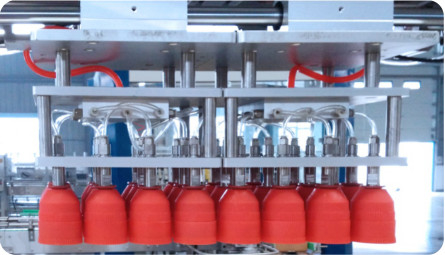

The machine adopts ABB Robot to automatically load the whole column of bottles into bound cartons, and adopts composite gripper, which can not only realize automatic packing, but also realize the function of automatic bottom plate and top plate.

The mechanical integration is simple and the programming is very convenient. It can be applied to the automatic production of bottled products in food, daily chemical, medicine, pesticide, veterinary medicine and other industries.


2. Technical Parameters

1Capacity

3-6Cases/Min(Without medium board)

*The actual production capacity changes according to the product size, packaging material and material characteristics.

2Applicable Carton sizeL300-500mm W200-400mm H100-300mm
3Applicable bottle sizeΦ40-90mm H80-230mm
4Air pressure0.6-0.8MPa
5Powder supply~380V 50Hz/4KW
6Lift Limit3300mm from the highest lifting point to the ground
7External Dimension2240×2250×2780mm(L×W×H)
8WeightAbout1500Kg


3. Allocations


NO.NameBrand
1PLCSchneider
2Touch ScreenSchneider
3Frequency converterSchneider
4Photoelectric sensorSick
5Proximity switchSchneider
6Switching power supplySchneider
7CylinderFTEC
8Solenoid valveFTEC




4. Advantages

4.1. Save production cost: save labor and improve production efficiency. It can replace 2-3 packing workers.

4.2. Wide application range: suitable for packing plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

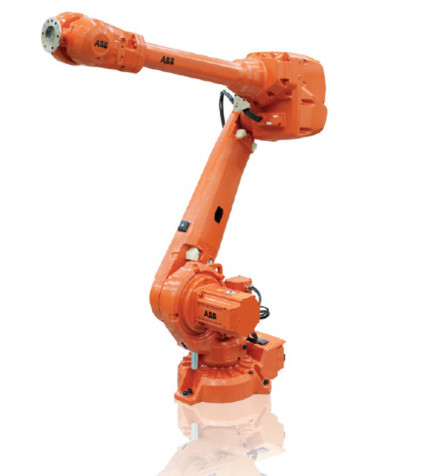

2.2. ABB Robot is used for automatic packing, with simple programming and convenient use.

4.3. Convenient adjustment: through the replacement of different packing molds (bottle gripper, suction cup, gripper, etc.), the quick assembly connection can quickly switch the specifications. The owner is required to provide bottles, caps and supporting cartons. Our company needs to make packing molds according to packaging materials and cartons.

4.4. It can automatically add bottom plate, middle plate, top and other functions. (this function is optional).
