TG-32B High Viscosity Filling Device DC24V/25W for 5-50mL Filling Range

TG-32B High Viscosity Filling Device DC24V/25W for 5-50mL Filling Range

TG-32B High Viscosity Filling Device

DC24V Filling Device

5-50mL Filling Range Filling Device

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

TG-32B

Contact Us
Request A Quote
Product Details
Machine Name:
TG-32B High Viscosity Filling Device
Filling Range:
5-50mL
Air Consumption:
200L/MIN
Air Pressure:
0.6-0.8Mpa
Accuracy:
±1%(10-50g)<10g±2%
Power:
DC24V/25W
Dimension:
881×460×807mm(L×W×H)
Weight:
20KG
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

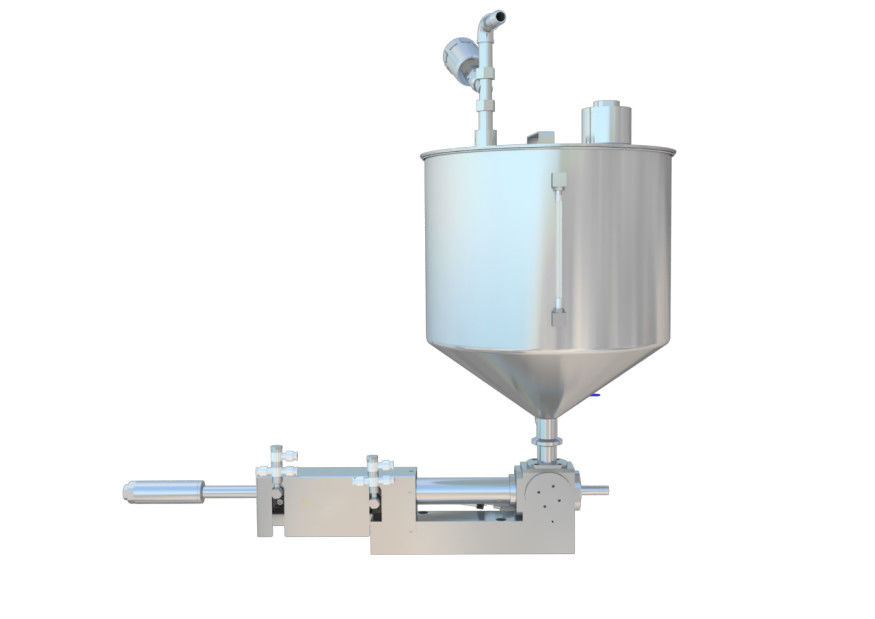

TG-32B High Viscosity Filling Device

1. Introduction

The high-viscosity filling device is composed of a material box, a cylinder, a ball valve, a feeding nozzle, etc. It is suitable for filling of viscous materials.



2. Technical Parameters



1



Filling range

5-50mL

*The range of filling capacity varies depending on the physical properties of the raw materials and the feeding device

2 Accuracy

±1%(10-50g)<10g±2%

*Measuring accuracy varies according to material characteristics, filling amount and feeding device

3 Feed pipe diameter Φ15mm
4 Hopper volume 24L
5 Air pressure 0.6-0.8MPa
6 Air consumption 200L/MIN
7 Power supply DC24V/25W



8

Dimensions 881×460×807mm(L×W×H)
9 Gross weight About 20Kg





3. Advantages

3.1. The whole is made of 304 stainless steel. The material is filtered by the filter screen before entering the material box, which effectively ensures the accuracy of colloid filling and prevents clogging and dripping.

3.2. The feeding function is automatically controlled by the PLC according to the current state of the float, and no human intervention is required after docking the feeding pump on the customer's site.

3.3. The design is ingenious. During the operation of the whole device, the pressure remains stable to ensure the filling accuracy.
