120 Bottles/min JW-CX160 Star Wheel Round Bottle QR Code Acquisition Line

120 Bottles/min JW-CX160 Star Wheel Round Bottle QR Code Acquisition Line

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

JW-CX160

Contact Us
Request A Quote
Product Details
Machine Name:
JW-CX160 Star Wheel Round Bottle QR Code Acquisition Line
Bottle Neck Diamete:
Φ38-90mm
Capacity:
120 Bottles/min
Power Supply:
AC220V 50Hz/2KW
Air Pressure:
0.6-1.0MPa
Machine Dimension:
3500×1265×900mm (L×W×H)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

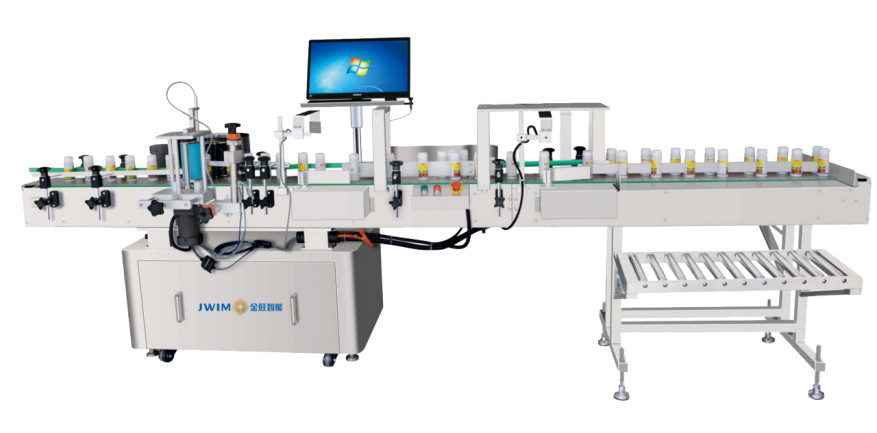

120 Bottles/min JW-CX160 Star Wheel Round Bottle QR Code Acquisition Line

1. Introduction

The two-dimensional code acquisition line is a manual or wired automatic packaging machine. The packaged products flow into the conveying line, and the Italian data logic collector is used to automatically identify the two-dimensional code data of each bottle of products.

By comparing the database, if there are products that cannot be identified or have duplicate or wrong codes, they will be automatically removed into the scrap box, and the normal and qualified products will be collected to flow into the later packing platform. At the same time, the correct product data will be recorded in the computer software database. When the proportion and quantity of primary packaging set by the software are reached, the system will prompt to scan the box and sign the QR code to complete the primary and secondary correlation (the software can be connected to the bar code printer to automatically print the associated box label, and manually paste it on the outside of the carton to complete the automatic packaging and data associated packaging.





2. Technical Parameters

1 Bottle Neck Diameter Φ38-90mm
2 Capacity 120 Bottles/min
3 Power Supply AC220V 50Hz/2KW
4 Air Pressure 0.6-1.0MPa
5 External Dimension 3500×1265×900mm (L×W×H)







3. Features

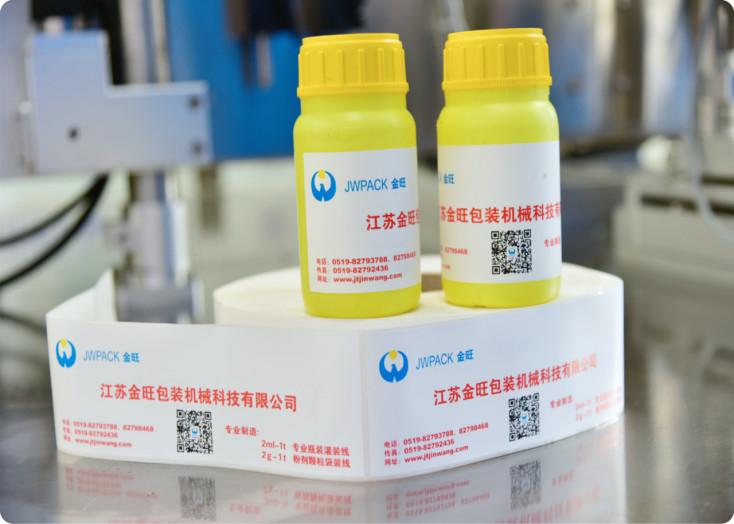

3.1 The label is printed in advance with clear effect and good scanning effect, which is not affected by front-end equipment. Labels are printed in advance without early input cost, and without late maintenance and consumable cost.

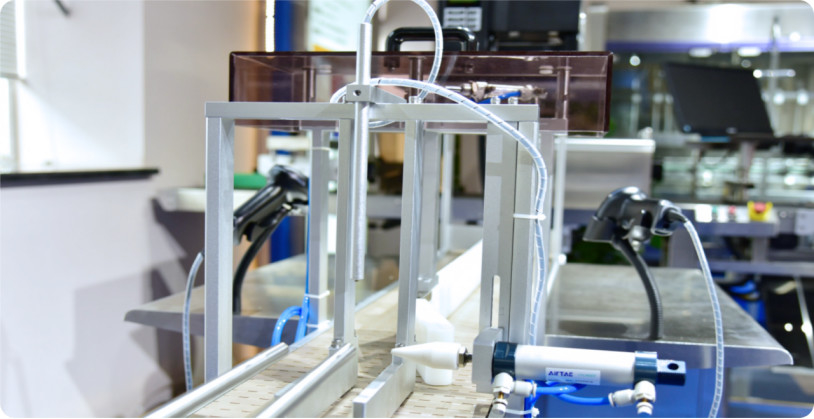

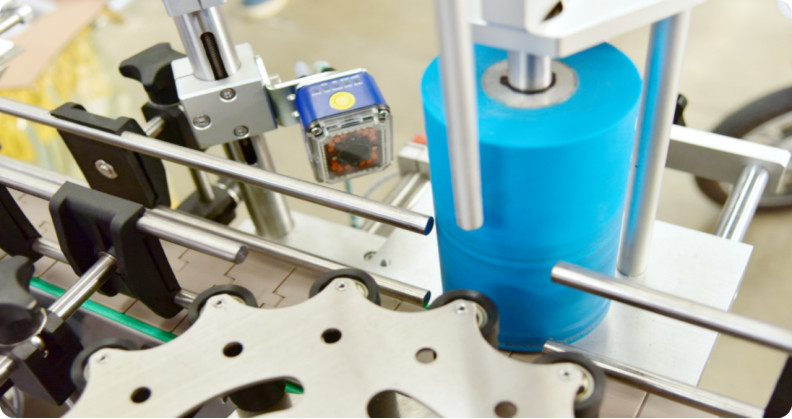

3.2. It adopts cylinder positioning and Italy datalogic high-speed QR code scanner, which has high production efficiency and strong equipment stability. It is suitable for collecting round bottles with different diameters and specifications. Change the variety and adjust the rotating handle screw, which is fast and convenient. The two-dimensional code acquisition device has high resolution, accurate acquisition and fast speed. The focal length of the scanner is up to down, left and right, and the adjustment is fast and simple. The staff is easy to learn.

3.3 Reject the waste products in view of the problems such as heavy code, wrong code and lack of information collection of the adopted data, the whole line equipped with the equipment shall be produced and used by the device.

3.4. Computer Operation Platform: Convenient and quick Settings such as device startup and collector parameter change.

3.5. The double-sided manual packing platform is adopted to meet the normal operation of the whole line, and the counting shunt is adopted to avoid the interleaving of manual packing.

3.6 The scanning gun adopts contact mask barcode scanner, long-distance linear image barcode scanner, knife switch cutter, rotary cutter and thick paper cutter.
