Pesticides 5-30L Drum Single Head Automatic Capping Machine

Pesticides 5-30L Drum Single Head Automatic Capping Machine

30L Automatic Capping Machine

Pesticides Automatic Capping Machine

Single Head Automatic Capping Machine

Place of Origin:

Changzhou, China

Brand Name:



CE. ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
SUS304 Frame
Capping Range:
5-30L Drums
Control System:
France Schneider
≤500 BPH
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
Contact Us
Contact Now
Product Description

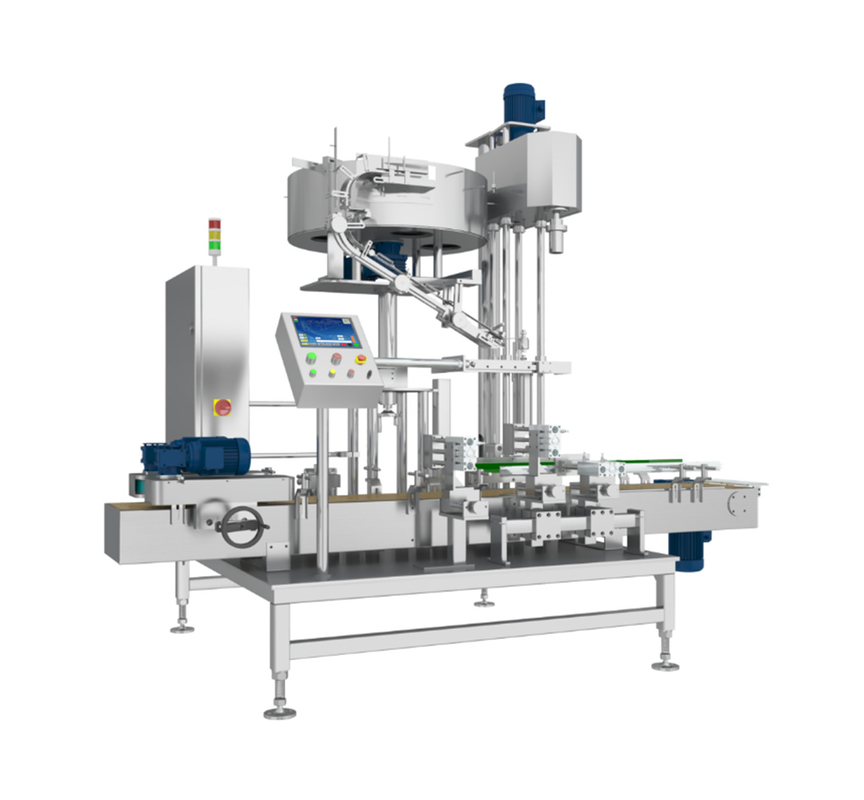

FX-1D Automatic Capping Machine


This machine consists of cap transfer mechanism, cap grabbing and capping mechanism, conveying mechanism and control system.

The whole machine is simple in structure, easy to adjust, and suitable for automatic capping of 5-30L drums.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 0

2. Technical Parameters

1 Production capacity

≤500 BPH

*Actual capacity varies according to product size, package material, material characteristics, etc.

2 Qualification rate 99.9%
3 Applicable barrel type Min:200×140×320mm Max:290×260×410mm
4 Bottle cap specification

Φ35-75mm H20-40mm

*It is recommended that the height of the lid does not exceed the diameter of the lid

5 Air pressure 0.6~0.8MPa
6 Electricity source ~220V 50Hz
7 Power 1.2KW
8 Weight 700Kg
9 Overall Dimension 2555×1580×2235mm(L×W×H)


3. Allocation

S.N Name Brand
1 PLC Schneider
2 Touch Screen Schneider
3 Frequency Converter Schneider
4 Counting photoelectric SICK
5 Switching power supply Schneider
6 Pressure Switch SMC
7 Cylinder FTEC
8 Solenoid Valve FTEC
9 Button Schneider
10 Alarm Light Schneider
11 Breaker Schneider

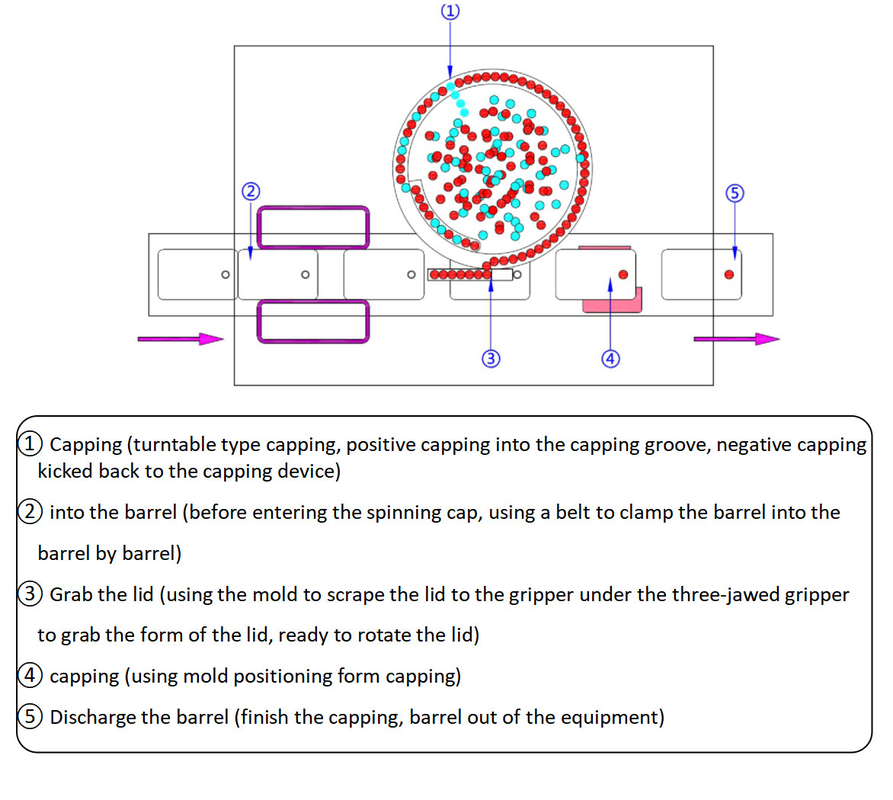

4.Working Process

Pesticides 5-30L Drum Single Head Automatic Capping Machine 1

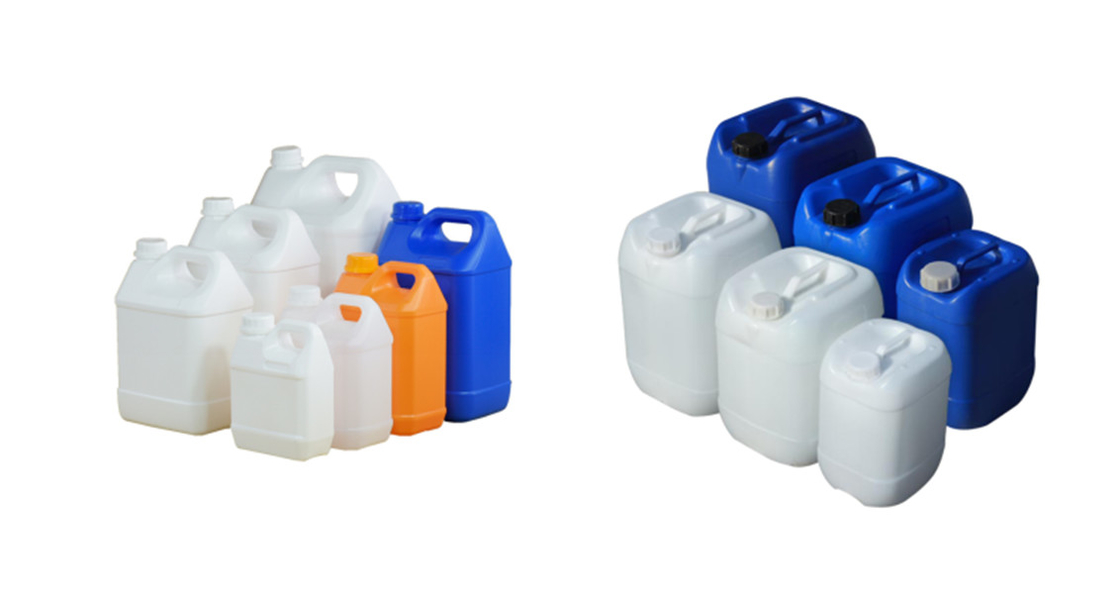

5.1 Widely used in agrochemicals, fine chemicals, daily chemicals, fertilizers, oils and other industries 5-30L square, flat barrels automatic capping.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 2

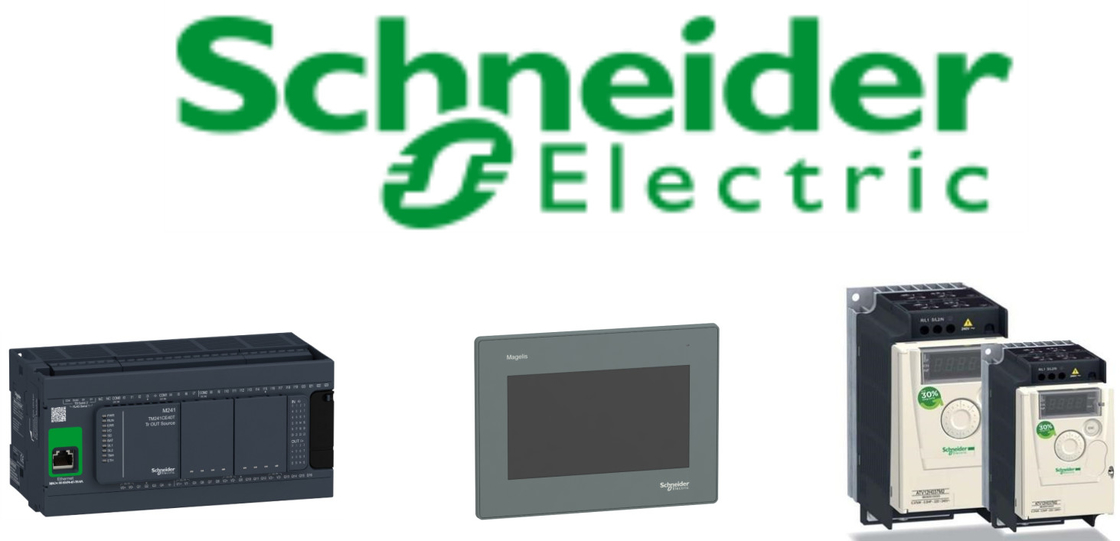

5.2 The whole machine adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe, green, low energy consumption.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 3

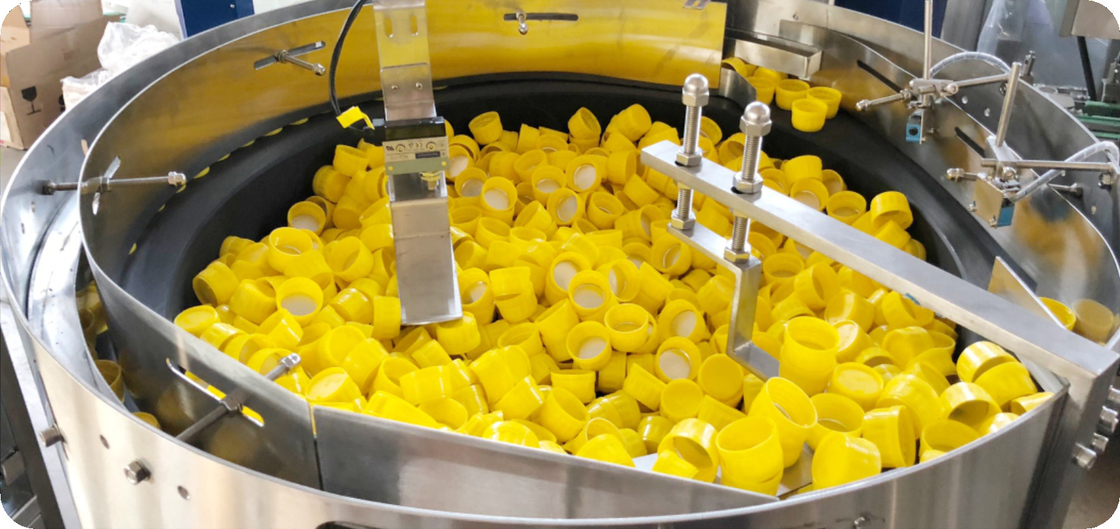

5.3 Extra-large capping device, easy to adjust the capping, suitable for all kinds of universal cap type.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 4

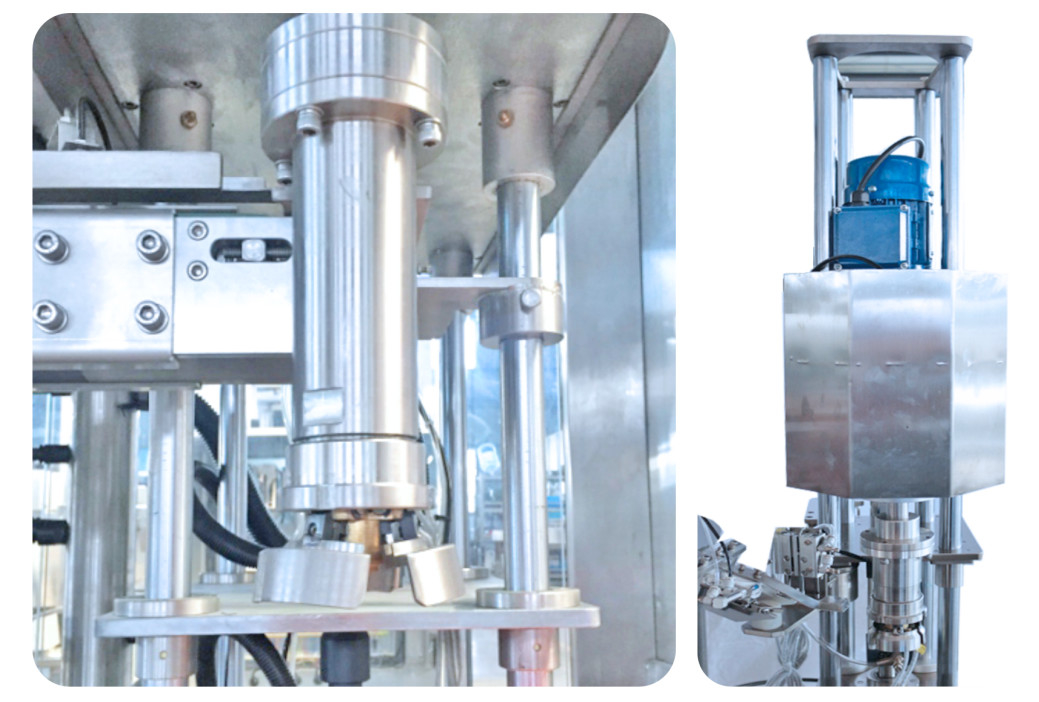

5.4 High precision: independent motor capping, adjustable torque without hurting the cap, ensuring constant capping torque and high pass rate.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 5


5.5 Mold automatic positioning capping, capping stable without shaking.

Pesticides 5-30L Drum Single Head Automatic Capping Machine 6





6.Support and Services:

Capping Machine Technical Support & Services

Our technical support and services for the Capping Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Capping Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.



7.Packing and Shipping:

Packaging and Shipping

The Capping Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.




Q1: What is the Brand Name of the Capping Machine?
A1: The Brand Name of the Capping Machine is JWIM.
Q2: What is the Model Number of the Pesticide Capping Machine?
A2: The Model Number of the Capping Machine is FX-1D.
Q3: Where is the Capping Machine manufactured?
A3: The Capping Machine is manufactured in China.
Q4: Does the Capping Machine require special maintenance?
A4: The Capping Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Capping Machine?
A5: The capacity of the Capping Machine is determined by the size of the container to be filled.
