CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine

CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine

CFH-G2 Bottled Powder Packaging Machine

Rotary Bottled Powder Packaging Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

CFH-G2

Contact Us
Request A Quote
Product Details
Machine Name:
CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine
Machine Frame:
SUS304
Filling Speed:
≤1500 Bottles/hour (take 500g As An Example)
Applicable Bottle Type:
Round Bottle: Diameter φ40-95mm, Bottle Height 80-230mm *Different Bottle Diameters Require Different Molds
Measuring Accuracy:
±1%*Measuring Accuracy Varies Depending On Material Characteristics, Filling Volume And Feeding Device
Power:
Three-phase AC380V 50Hz/2KW
Air Pressure:
0.6-0.8MPa
Machine Dimension:
2310×1635×2578mm(L×W×H)
Weight:
800Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

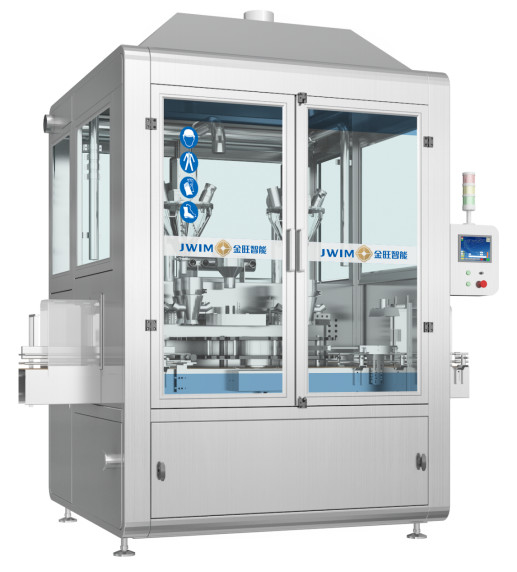

CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine

1. Introduction

CFH-G2 fully automatic rotary bottled powder packaging machine adopts a rotary follow-up filling structure and has high production capacity. The whole machine is made of SUS304 stainless steel, which has excellent anti-corrosion properties. The filling part is controlled by servo motor with high precision. The filling process is carried out under the control of PLC program, and all operations are completed on the touch screen.



2. Technical Parameters

1 filling speed ≤1500 bottles/hour (take 500g as an example)
2 Applicable bottle type

Round bottle: diameter φ40-95mm, bottle height 80-230mm

*Different bottle diameters require different molds

3 Measuring accuracy ±1%*Measuring accuracy varies depending on material characteristics, filling volume and feeding device
4 Power/power Three-phase AC380V 50Hz/2KW
5 Air pressure 0.6-0.8MPa
6 Dimensions 2310×1635×2578mm(L×W×H)
7 weight About 800Kg



3. Features

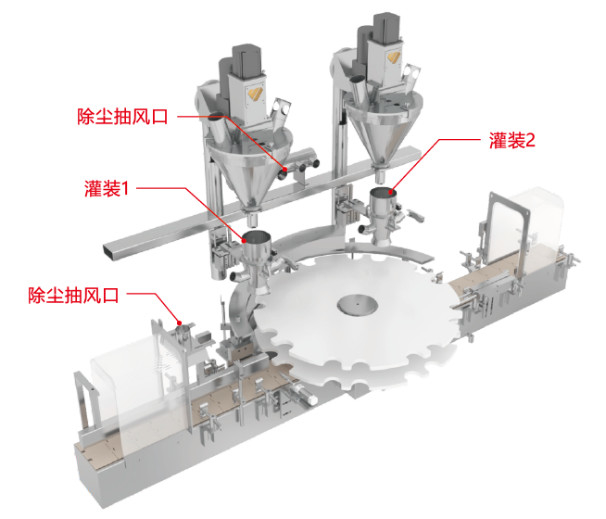

3.1 Adopt intermittent filling structure:Filling 1 - dust removal - filling 2 - dust removal 2; fast production capacity, stable operation, and can effectively reduce dust in the filling area.

3.2 The excluding frame part of this machine is sealed with stainless steel frame and glass. The supporting blanking and dust removal pipe can be connected with the dust removal pipe to suck away the dust during blanking to reduce dust in the production environment.

3.3 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe and low energy consumption.
