Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine

Fertilizer Automatic Rotary Capping Machine

Eight Head Automatic Rotary Capping Machine

5L Automatic Rotary Capping Machine

Place of Origin:

Changzhou, China

Brand Name:

JWIM

Certification:

CE. ISO9001

Model Number:

FX-8AS

Contact Us
Request A Quote
Product Details
Material:
SUS304 Frame
Capping Range:
1-5L Drums
Control System:
France Schneider
Capacity:
≤9000BPH
Functionality:
Capping
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

FX-8AS Automatic Rotary Capping Machine

1.Introduction

This machine integrates the barrel inlet, cap management, capping and barrel outlet, adopts the grasping cap positioning capping, and the whole machine is of rotary structure. In the process of capping, there is no injury to the barrel, no injury to the cap phenomenon, high capping efficiency, high pass rate, smooth operation, wide range of use, and can be comparable with similar foreign products.

The machine is suitable for all kinds of glass or plastic drums of various specifications of automatic screwing of the outer cap, using the cap grabber to grab the cap conveyed by the scraping plate, in the process of drum rotation to complete the screwing of the outer cap. The whole machine adopts PLC control, touch human-machine interface, convenient and intuitive operation.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 0

2. Technical Parameters

1 Production capacity

≤9000BPH

*Actual capacity varies according to product size, package material, material characteristics, etc.

2 Qualification rate 99.9%
3 Applicable barrel type Diameter Φ40-95mm H 80-250mm
4 Lid specification Diameter Φ20-70mm, H 20-40mm *It is recommended that the height of the lid does not exceed the diameter of the lid
5 Number of capping heads 8PCS
6 Air pressure 0.6-0.8MPa
7 Electricity source ~380V 50Hz
8 Power 2.53KW
9 Weight 1650Kg
10 Overall Dimension 2000×1444×2300mm(L×W×H)



3. Allocation

No. Name Brand
1 PLC Schneider
2 Touch Screens Schneider
3 Inverter Schneider
4 Counting Optoelectronics SICK
5 Switching Power Supply Schneider
6 Pressure switch SMC
7 Pneumatic Cylinder FTEC/AIRTAC
8 Solenoid Valve FTEC
9 Buttons Schneider
10 Breaker Schneider


4.Working Process

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 1







5.Features:

5.1 Widely used in agrochemical fine chemicals, daily chemicals, fertilizers, oil and other industries 1-5L barrels of automatic capping.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 2

5.2 High qualified rate of capping, adjustable torque, convenient and fast, good stability.





5.3 Good versatility: for different types of caps, the corresponding screw cap gripping head is selected, also applicable to anti-theft caps, straw hat caps.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 3



5.4 Quick-fit mold design, mold replacement without tools, and according to the different barrel type mold engraving logo, replace the barrel specifications more convenient and quick, barrel type switching time is short.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 4



5.5 Based on safe production

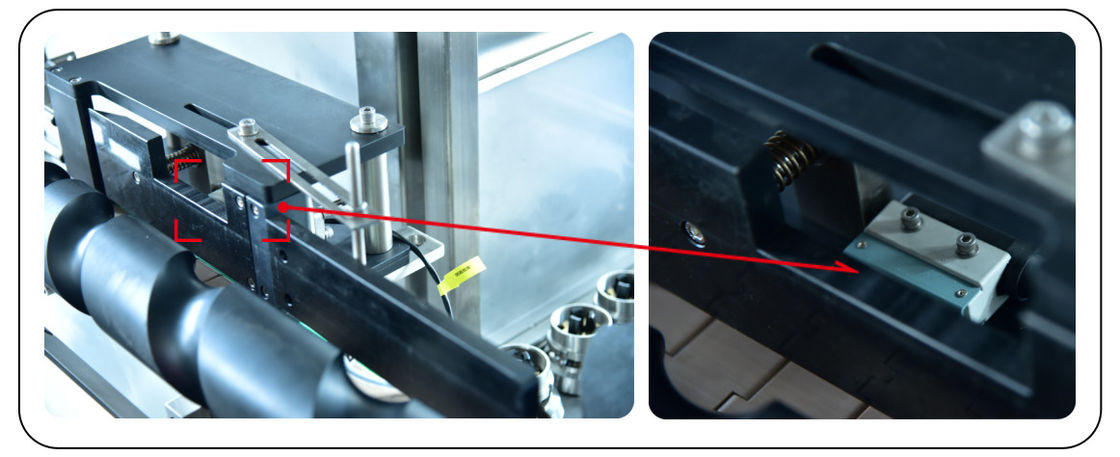

①capping machine is equipped with inverted bottle, stuck bottle detection switch, when there is an inverted barrel or stuck barrel equipment automatic shutdown, so as to avoid damage to the twist or star wheel.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 5



All drives are equipped with clutch limit protection switch, in and out of the bottle star wheel jam bucket or spindle torque overload automatic clutch and shutdown alarm, to protect the equipment from damage and improve service life. Other similar capping machines on the market do not have this function.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 6



5.6 Humanized design: reference to the world's top capping machine manufacturers AROL (Krones capping special supporting business) design structure, supporting the automatic motor lift (touch screen or pointing buttons) + semi-automatic handle lifting and adjusting mode, adjusting the specifications conveniently and quickly. Currently on the market similar capping machine either can only be manually adjusted, no automatic lifting function or the use of triangular belt drive, not power can not be manually lifted, the adjustment is more cumbersome.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 7



5.7 Nitrogen filling function can be added before the cap is screwed, and the reserved pipeline can be connected with the customer's nitrogen source. (This function is optional.)

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 8



5.8 Photoelectricity detecting cap management system, simple and stable adjustment, high qualification rate. Extra-large size of the cap stretcher, more cap storage capacity, more stable cap stretcher.

Fertilizer 1-5L Drum Eight Head Automatic Rotary Capping Machine 9



5.9 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system is more stable and reliable, safe and green, low energy consumption







6.Support and Services:


Capping Machine Technical Support & Services

Our technical support and services for the Capping Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Capping Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.





7.Packing and Shipping:


Packaging and Shipping

The Capping Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.





8.FAQ:


Q1: What is the Brand Name of the Capping Machine?
A1: The Brand Name of the Capping Machine is JWIM.
Q2: What is the Model Number of the Pesticide Capping Machine?
A2: The Model Number of the Capping Machine is FX-8AS.
Q3: Where is the Capping Machine manufactured?
A3: The Capping Machine is manufactured in China.
Q4: Does the Capping Machine require special maintenance?
A4: The Capping Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Capping Machine?
A5: The capacity of the Capping Machine is determined by the size of the container to be filled.
