DSU5000 UV Laser Coding Machine AC 220V, 50Hz, 1.2KW

DSU5000 UV Laser Coding Machine AC 220V, 50Hz, 1.2KW

50Hz UV Laser Coding Machine

1.2KW UV Laser Coding Machine

AC 220V UV Laser Coding Machine

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

DSU5000 UV Laser Coding Machine

Contact Us
Request A Quote
Product Details
Name:
DSU5000 UV Laser Coding Machine
Output Power:
1.2KW
Scaning Speed:
≥7000mm/s~12000mm/s
Marking Speed:
5400mm/s-9000mm/s (depending On Material)
Cooling Method:
Water Cooling
Power Supply:
AC220V 50HZ 1.2KW
Character Size:
0.1mm-110mm
Wave Length:
355nm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

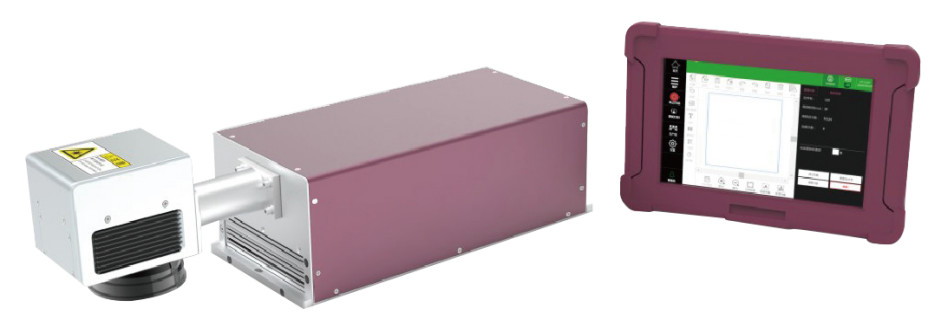

DSU5000 UV Laser Coding Machine AC 220V, 50Hz, 1.2KW

1. Introduction

This equipment adopts a new intelligent vector control algorithm, which significantly increases the marking speed. Unique laser control technology can easily mark the best printing effect on film materials.

The machine is compact, low-maintenance, requires no consumables, and provides permanent, high-quality coding. It is widely used in bag packaging machines. It has permanent and high-contrast markings to ensure product traceability. It is the first choice for anti-counterfeiting and anti-channeling systems.



2. Technical Parameters

Model 3W 3W
Application Industry High molecular polyethylene materials, such as food, beverages, pipes, daily chemicals, etc.
Marking Method XY axis simultaneous scanning mode
Marking Mode flight marking 5400mm/s (depending on material) 9000mm/s (depending on material)
  static marking Multiple products can be marked simultaneously
Marking Laser type UV laser generator
  Wave length 355nm
  output 3W 5W
Guide Laser/Working Distance red light guide
Marking Range Optional 70*70, 110*110, 175*175, 300*300mm
Scan Speed ≥7000mm/s ≥12000mm/s
Software Controller WinCE touch screen
Character Type font Single line font/double line font
  barcode Code39/Code25/EAN-13/Code128 etc.
  QR code QRCodeLib
  image PLT format vector image input/output
Marking Conditions Marking status Number of markings, quantity of products, etc.
  character size 0.1mm-110mm
Input Output Optoelectronic/synchronizer input and output
Interface SD card interface/USB2.0 interface/communication interface
Laser Installation Direction Any direction
cooling method water cooling
Quota Value Power pressure AC220V 50HZ
  Power consumption 1200W
  Storage ambient temperature -10℃-45℃(no freezing)
Environmental Resistance Storage environment humidity 10%-85% (no condensation)
pollution Level The marking itself does not produce any chemicals
Weight Specifications Dimensions Total weight 120kg
  Machine specifications 780*660*1480mm(L*W*H)





3. Equipment Advantages

3.1. High Speed, High Quality and High Reliability

3.1.1. Faster marking speed, up to 700 characters per second; Brand new intelligent control algorithm provides high-quality scribing technology;

31.2. The enhanced anti-electromagnetic interference design ensures 24-hour continuous operation in harsh environments.



3.2. Easy to Install

3.2.2. Compact and unique design, easily installed in various bag-feeding production lines;

3.2.2. Compact size allows it to fit into narrow installation spaces.



3.3. Rich Identification Information and Permanent Identification

3.3.1. Virtually unlimited fonts, graphics and barcode applications;

3.3.2. Permanent identification, reliable anti-counterfeiting and anti-channeling option.



3.4. Easy to Operate, Low Maintenance, No Consumables

3.4.1.The innovative interaction method is easy to learn and understand, and the operation is more convenient and faster;

3.4.2. One-click boot mode, omitting the tedious boot process;

3.4.3. The mean time between failures can reach more than 50,000 hours;

3.4.5. No consumables are required, saving production costs.
