Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
WT-3000 Weight Checker

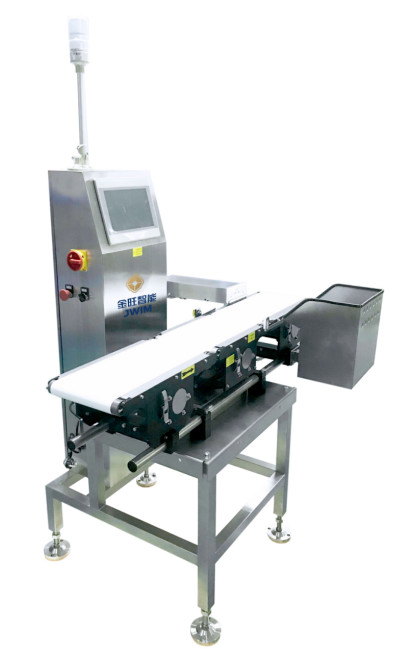

WT-3000 Weight Checker with Weighing Belt Width 200mm
1. Introduction
WT-3000 is an economical and practical automatic checkweighing solution. With fast and accurate weight acquisition and easy integration with existing conveying equipment, this series of automatic checkweighers is suitable for all checkweighing applications in automatic packaging and logistics.
2. Technical Parameters
1 | Measuring Range | 3000gMAX |
2 | Minimal Display | 0.1g |
3 | Accuracy | ±0.3g |
4 | Throughput |
≤200 pieces/minute *Actual production capacity varies depending on product size, packaging material, material characteristics, etc. |
5 | Weighing Belt Width | 200mm |
6 | Conveying Direction | Left → Right (facing the display, special customizable) |
7 | Elimination Method | Cylinder push rod |
8 | Load Cell | Mettler Toledo brand |
9 | Communication Method | RS485, TCP/IP |
3. Features
3.1. 10-inch color touch screen LCD
3.2. The touch screen can record weighing data, and at least 100 recent records can be observed.
3.3. The touch screen has a curve display of historical data, and the latest 50 dynamic data can be observed.
3.4. The touch screen can record all weighing data of the day
3.5. Touch screen language: Chinese, English
3.6. Continuous error alarm: Every 2-10 (number can be set, maximum 255) continuous weighing errors, an alarm will be output.
3.7. The parameters of various products can be set and retained (at least 500 recipes), and the operator can call them directly. The electrical components and hardware have industrial-grade reliability (the main pneumatic components are made of Taiwan Pneumatic). Dynamic weighing and static weighing Automatic conversion.
3.8. Three levels of password protection
3.9. Power-off protection function, accidental power-off parameters remain unchanged.
3.10. Data statistics function, total number of products passed within a period of time/total number of underweight products/total number of overweight products.
