Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:

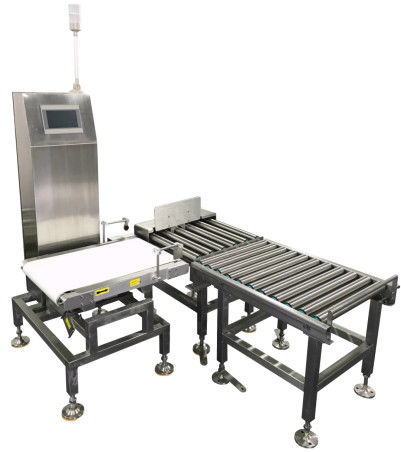

WT-40 Semi-automatic Carton Weighing Scale
WT-40 Semi-automatic Carton Weighing Scale
1. Introduction
1.Introduction
WT-40 Is your ideal auto weight checking solution, the fast and accurate weight collection and data transmission device make the weight checking is widely used in the auto packing process.
2. Technical Parameters
1 | Weighing Range | 40Kg MAX |
2 | Smallest display | 5g |
3 | Dynamic Accuracy | ±10g |
4 | Capacity |
80 pcs/min *Actual production capacity varies depending on product size, packaging material, material characteristics, etc |
5 | Weighing Belt Width | 400x600mm(WxL) |
6 | Conveying Direction | Left → Right (facing the display screen, special customization is possible) |
7 | Conveying Height | 650±50mm |
8 | Rejecting | Cylinder push rod |
9 | Application Range | L(200-550)*W(150-400)*H(100-400)mm |
10 | Communication Methods | Rs485, TCP/IP |
3.Advantages
3.1. 10 inch color touch screen LCD
3.2. Touch screen can record weighing data and save at least 100 recent records.
3.3. Touch screen has a curve display of historical data, save at latest 50 dynamic data.
3.4. Touch screen can record all weighing data of the day.
3.5. Touch screen language: Chinese, English
3.6. Continuous Error Alarm: Every 5-10 (the number can be set, maximum 255) continuous error weighing, it will alarm.
3.7. Accumulation Alarm: Sensor can set the time N seconds (the number can be set, maximum 255 seconds) to judge whether the object passes normally. If the sensor is not triggered in N minutes, it will always alarm and output continuous signal, which can only be removed by manual operation. The product accumulation alarm can detect the abnormal passing of sensor for a long time due to motor failure, belt slip and abnormal transmission speed.
3.8. The parameters of various products can be set and saved (at least 100 data). Operator can use it directly. Electrical components and hardware are with industrial-grade reliability. Dynamic and static weighing automatic conversion.
3.9. Tertiary Password Protection.
3.10. Power failure protection function, parameters remain unchanged if any accidental power failure happened.
3.11. Data statistics function: Total number of products/underweight products/ overweight products can be saved in a period of time.
