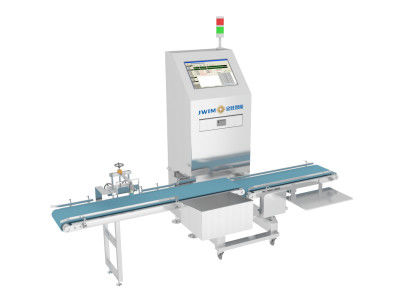

40-80 Bags/ Min JW-SC300 Preformed Bag QR Code Acquisition Line

40-80 Bags/ Min JW-SC300 Preformed Bag QR Code Acquisition Line

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

JW-SC300

Contact Us
Request A Quote
Product Details
Machine Name:
JW-SC300 Preformed Bag QR Code Acquisition Line
Applicable Bag:
L: 80-300mm W: 120-350mm H: 10-50mm
Wiring Conveying Height:
900±100mm
Capacity:
40-80 Bags/ Min
Power Supply:
AC220V 50Hz/2KW
Machine Dimension:
2500×1315×1960mm (L×W×H)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

40-80 Bags/ Min JW-SC300 Preformed Bag QR Code Acquisition Line

1. Introduction

The bagged QR code is collected manually or by connecting the automatic packaging machine. The packaged products flow into the conveying line, and the collector automatically identifies the QR code data of each bag of products.

By comparing the database, if there are unrecognizable products, heavy codes, wrong codes and other products, they will be automatically removed into the scrap box, and the normal and qualified products will be collected to flow into the subsequent packing platform. At the same time, the correct product data will be recorded in the computer software database. When the proportion and quantity of primary packaging set by the software are reached, the system will prompt to scan the box and sign the QR code to complete the primary and secondary correlation.





2. Technical Parameters

1 Detection Speed 40-80 bags/min
2 Applicable Bag L: 80-300mm W: 120-350mm H: 10-50mm
3 Wiring Conveying Height 900±100mm
4 Power 220V 50Hz/2.0KW
5 Exteral dimension 2500×1315×1960mm (L×W×H)







3. Features

3.1. Bag Coding

3.1.1 It can directly connected to the automatic packaging machine or single-machine use, easy to operate, the bag printed in advance good effect, scan code effect is good, not affected by the front-end equipment.

3.1.2 the packaging bag is printed in advance without early input cost, no late maintenance and consumables costs.



3.2. Bag Code Acquisition

3.2.1 Italy datalogic high-speed QR code scanner is adopted to complete bag online detection and scanning, with high production efficiency and strong equipment stability.

3.2.2 Two-dimensional code acquisition device has high resolution, accurate acquisition and fast speed. The focal length of the scanner is up to down, left and right, and the adjustment is fast and simple. The staff is easy to learn.



3.3. Display & Industrial Computer

3.3.1 Computer operation platform: convenient and quick Settings such as device startup and collector parameter change.



3.4. Scanning Gun

3.4.1 The scanning gun adopts contact mask barcode scanner, long-distance linear image barcode scanner, knife switch cutter, rotary cutter and thick paper cutter.
