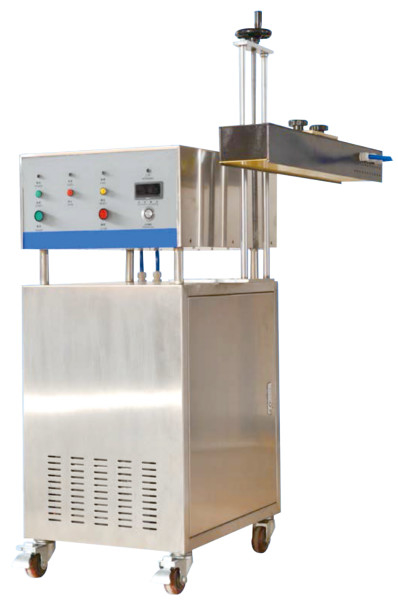

10-200 BPM BIS Type Aluminum Foil Sealing Machine 220V 50Hz 4KW

10-200 BPM BIS Type Aluminum Foil Sealing Machine 220V 50Hz 4KW

4KW Aluminum Foil Sealing Machine

220V Aluminum Foil Sealing Machine

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

BIS Type Aluminum Foil Sealing Machine

Contact Us
Request A Quote
Product Details
Name:
BIS Type Aluminum Foil Sealing Machine
The Material Of Frame:
SS304
Capacity:
10-200 Bottles/min
Sealing Range:
Φ20-65mm
Power Source:
~220V 50Hz 4KW
External Dimension:
800×125×95mm(L×W×H)
Weight:
75Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

10-200 BPM BIS Type Aluminum Foil Sealing Machine 220V 50Hz 4KW

1. Introduction

The BIS series electromagnetic induction sealing machines developed and produced by our company adopt the latest international power electronics technology and advanced power inverter technology, as well as high-power CMOS switching devices from the American Advanced Semiconductor Company, ensuring the reliability and durability of the equipment. Due to the modular design, the failure rate is extremely low. The technology is at the leading level in the country.



2. Technical Parameters

1 Sealing speed 10-200 bottles/minute(Take a 30mm diameter PE bottle as an example)
2 Sealing diameter Φ20-65mm(Bottle caps that exceed the range can be customized as required)
3 Power/power ~220V 50Hz/4KW
4 Equipment size 800×125×95mm(L×W×H)
5 weight About 75Kg



3.Equipment Advantages

3.1. Equipment type: fully automatic online aluminum foil sealing machine; control system: transistor modular integrated circuit; cooling system: dual fans and dual radiators, enhanced internal circulation water cooling, and the cooling performance is 20-30% better than ordinary sealing machines.

3.2. The flat-plate heating induction head and distributed resonant capacitor structure can meet the customer's sealing requirements for small-scale and multi-variety bottle caps.

3.3. Sealing effect: The sealing effect is intact, close to 100%. Even if there is a small amount of residual liquid left on the bottle mouth, the sealing effect will not be affected.

3.4. adopted Advanced Semiconductor Corporation’s eighth-generation 37F series switching devices, greater power, faster switching speed, smaller loss, ensuring more stable equipment performance.

3.5. The main circuit adopts Full-bridge rectifier inverter circuit and solid-state integrated circuit technology, making the sealing effect more uniform.

3.6. The output circuit adopts negative feedback technology, so that the output power automatically increases or decreases with changes in the load to ensure the sealing effect.
