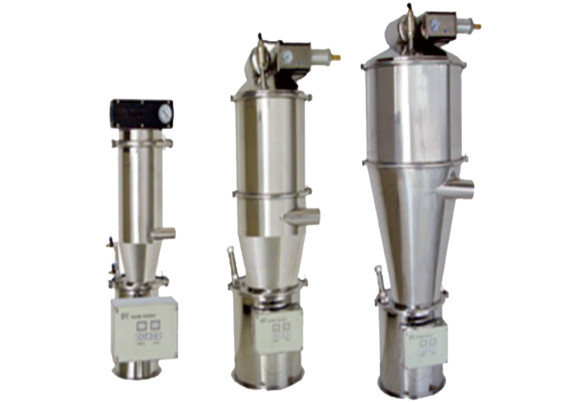

300-1500KG/H QVC-3 Pneumatic Vacuum Feeder

300-1500KG/H QVC-3 Pneumatic Vacuum Feeder

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

QVC-3 Pneumatic Vacuum Feeder

Contact Us
Request A Quote
Product Details
Name:
QVC-3 Pneumatic Vacuum Feeder
Production Capacity:
300-1500Kg/h
Gas Consumption:
720L/min
Gas Supply Pressure:
0.4-0.6Mpa
External Dimension:
Φ290×850mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

300-1500KG/H QVC-3 Pneumatic Vacuum Feeder

1. Introduction

Pneumatic vacuum feeder is the use of compressed air through the vacuum generator to produce high vacuum to achieve the conveying of materials, without the need for mechanical vacuum pump, with simple structure, small volume, free maintenance, low noise, easy control, eliminate material electrostatic. Vacuum generator produces high vacuum, so that the material to be transported to eliminate the stratification phenomenon, to ensure the uniformity of the mixed material composition.

When the compressed air is supplied to the vacuum generator, the vacuum generator produces negative pressure to form a vacuum airflow, and the material is sucked into the suction nozzle to form a material airflow, which reaches the bin of the feeding machine through the suction tube. The filter separates the material from the air thoroughly. When the material is filled with the bin, the controller will automatically cut off the air source, the vacuum generator stops working, and the bin door automatically opens, and the material falls into the hopper of the equipment. At the same time, compressed air automatically cleans the filter through a pulsed blow back valve. When the time arrives or the material level sensor sends out the feeding signal, the feeding machine will be automatically started.



2. Technical Parameters

1 Production Capacity

300-1500Kg/h

*Actual production capacity varies depending on product size, packaging material, material characteristics, etc

① The conveying material is flour, with a conveying distance of 5 meters (horizontal distance+vertical height), and the measured maximum conveying capacity is 1500kg/h.

② The material transportation distance is doubled, and the transportation volume is reduced by half. Additionally, the material fluidity has a significant impact on the transportation volume

2 Gas Consumption 720L/min
3 Air Pressure 0.4-0.6Mpa
4 External Dimension Φ290×850mm
