Place of Origin:
Made in China
Brand Name:
Jinwang
Certification:
CE, ISO9001
Model Number:
TN-200LDS

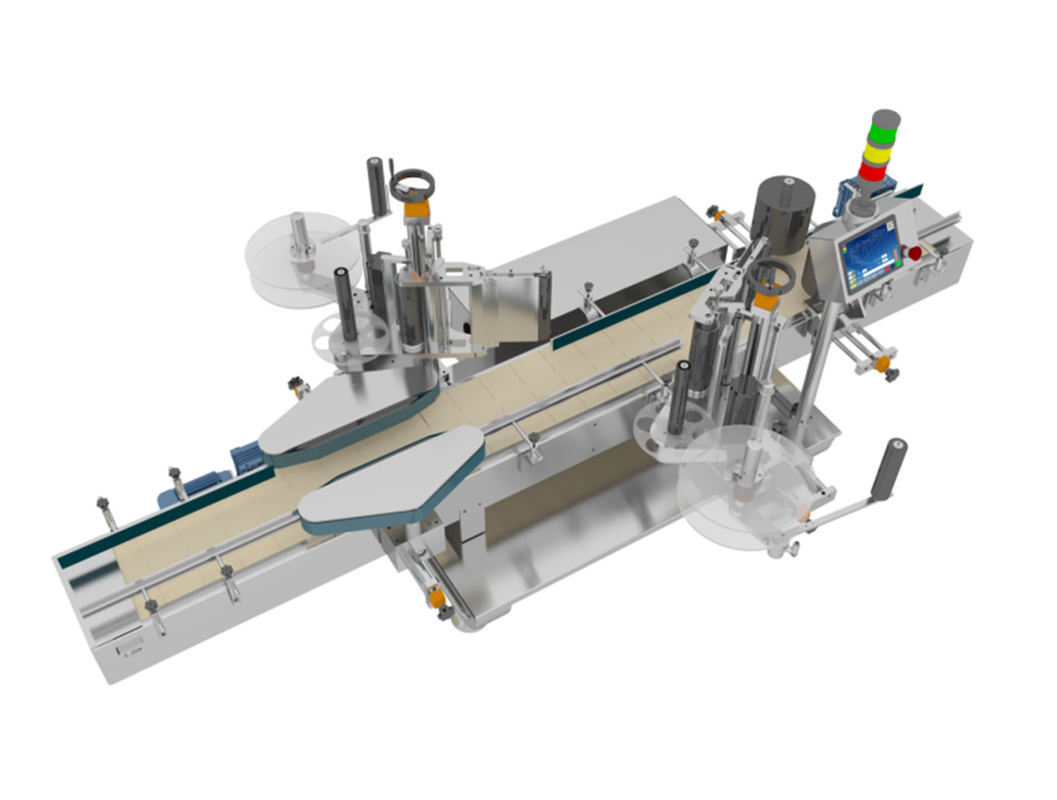

TN-200LDS Double-sided Self-adhesive Labeling Machine
1.Introduction
The equipment adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is convenient and intuitive to operate, and has a wealth of help functions and fault display function.
It is suitable for automatic labeling of self-adhesive labels on all kinds of square and flat bottles.

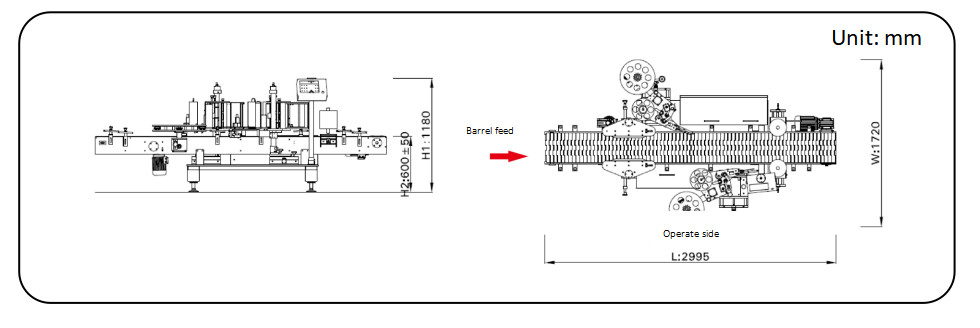

2.Machine Dimension
3.Technical Parameters
1 | Labeling speed |
5L:2500 BPH,25L:1500 BPH *Actual capacity varies according to product size, package material, material characteristics, etc. |
2 | Bottle Diameter | Mini 200×140×320mm Max 290×260×500mm |
3 | Label size | L ≤300mm h ≤200mm |
4 | Labeling precision | ±2mm 98%*Labeling accuracy varies according to material and label material. |
5 | Power supply/power | ~220V 50Hz/2.5KW |
6 | Size of the whole machine | 2995×1720×1180mm(L×W×H) |
7 | Weight | ~484Kg |
4.Electrical Configuration
No. | Name | Brand |
1 | PLC | Schneider |
2 | Touch Screens | Schneider |
3 | Inverter | Schneider |
4 | Servo System | Schneider |
5 | Fiber Optic Amplifier | Sick |

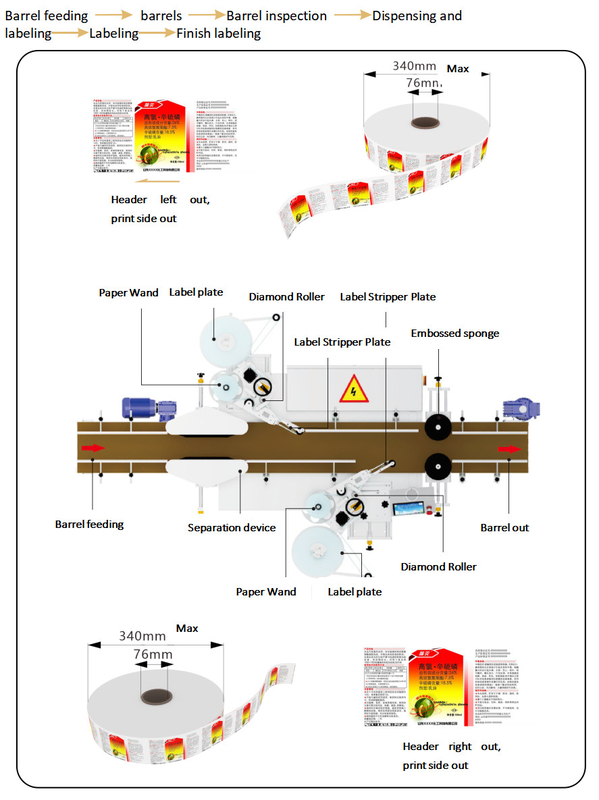

5.Working Process
6.Advantage

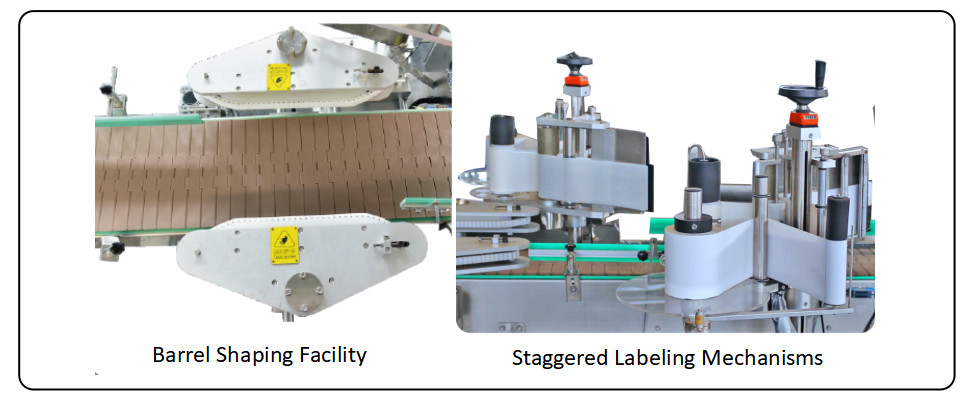

6.1 High capacity: Split barrel shaping mechanism + staggered labeling, improve labeling stability, while easy to adjust.

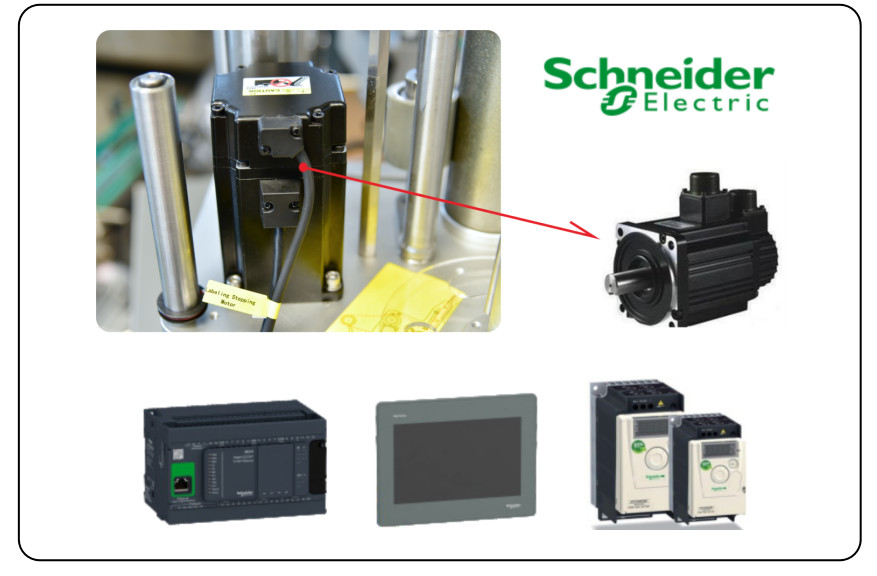

6.2 Servo system, using France Schneider Electric integrated servo system, high efficiency, stability, low energy consumption.
6.3 When the equipment has no labeling broken labeling, automatic shutdown and alarm prompts.
6.4 Each coordination function, alarm function all-round protection of equipment safety.

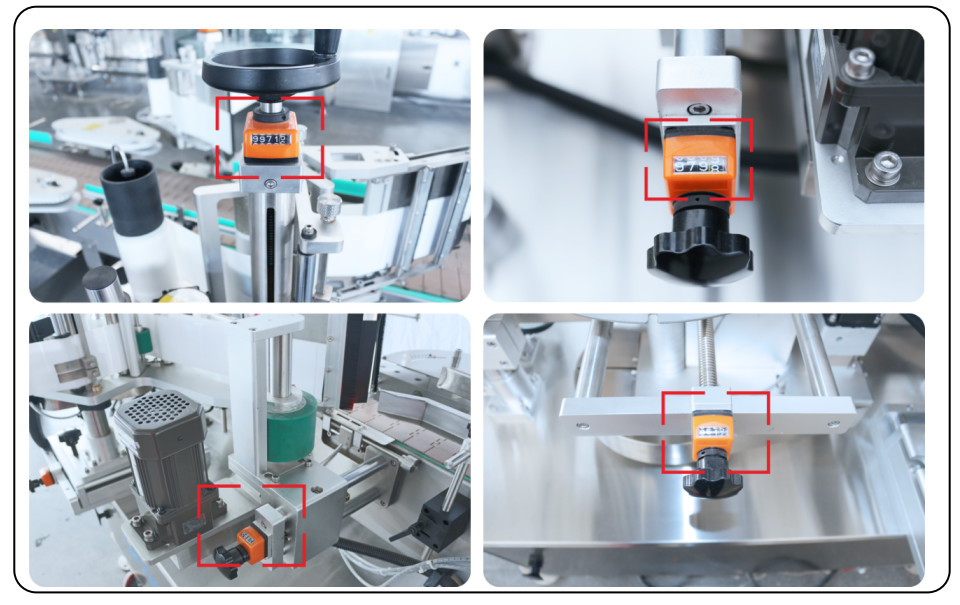

6.5 Digital adjustment handle, adjustment is more intuitive, specification replacement is faster.
6.6 Pure alloy label feeding rollers are non-slip, stable label feeding, more wear-resistant, obviously stronger than traditional rubber roller.
7.Support and Services:
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
8.Packing and Shipping:
The Labeling Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
9.FAQ:
